VPV Vane Pump 97

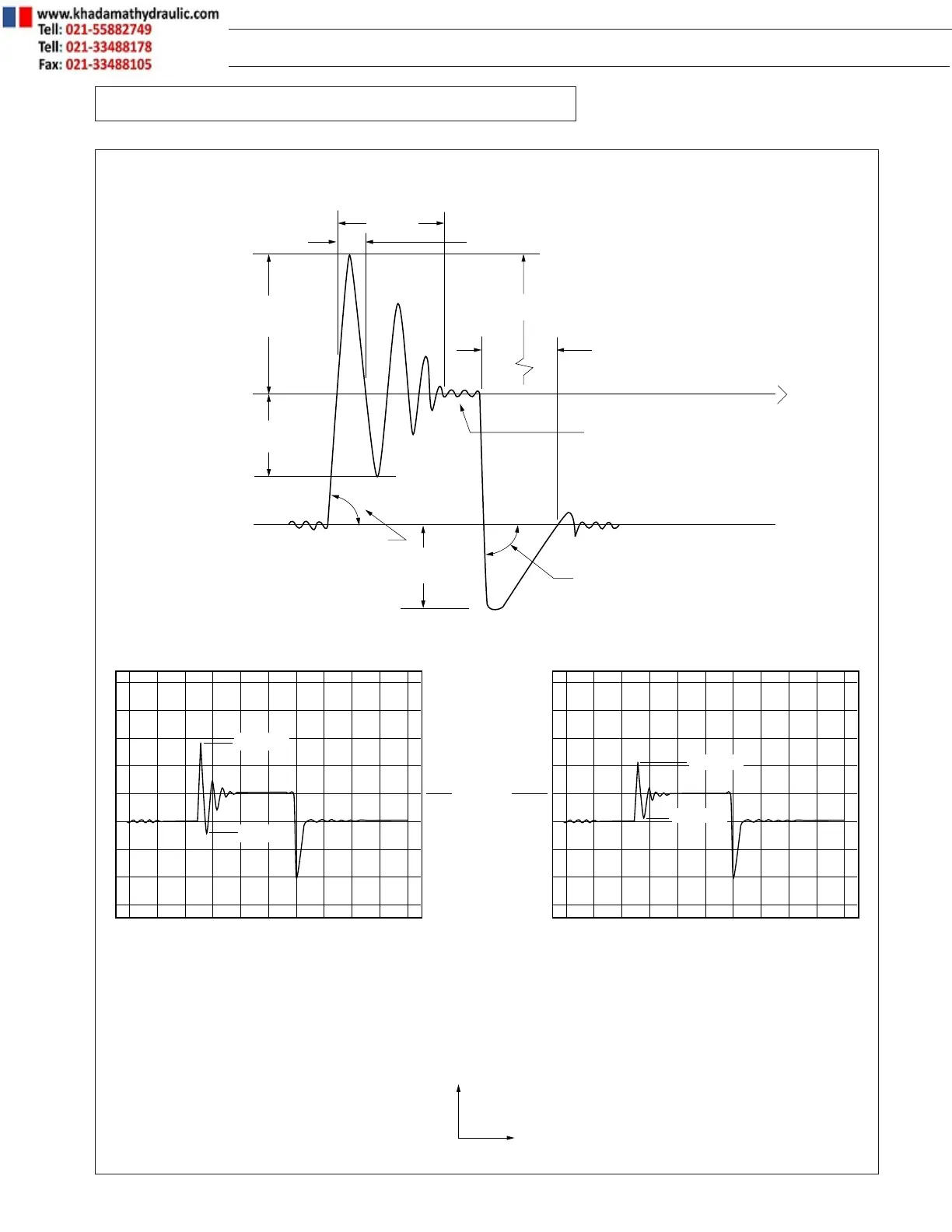

Reaction Characteristics and Shock Clipper Function
RECOVERY
UNDERSHOOT
MAX. RATE OF PRESSURE RISE
RESPONSE
UNDERSHOOT
MAX. PEAK
PRESSURE
DECAY
TIME
RESPONSE TIME
SHOCK PRESSURE
RECOVERY TIME
PRESSURE RIPPLE
DEADHEAD
PRESSURE
3000 PSi
75% OF DEADHEAD
PRESSURE
MAX. RATE OF
PRESSURE DROP
3500 PSI
2550 PSI
3950 PSI
2300 PSI
3000 PSI
VPV 16, Single stage compensator,
plot with shock clipper inactive.
(Response overshoot of 950 PSI,
response undershoot of 700 PSI)
VPV 16, Single stage compensator, plot
with shock clipper active. (Response
overshoot of 500 PSI, response
undershoot of 450 PSI)
PRESSURE
TIME
