White to L
Brown to C
Light blue to R
Purple to RR
Left
speaker
(L)
Right
speaker
(R)
Center speaker
(C)
Right
rear
speaker
(RR)
Left
rear
speaker
(LR)
Light green to LR

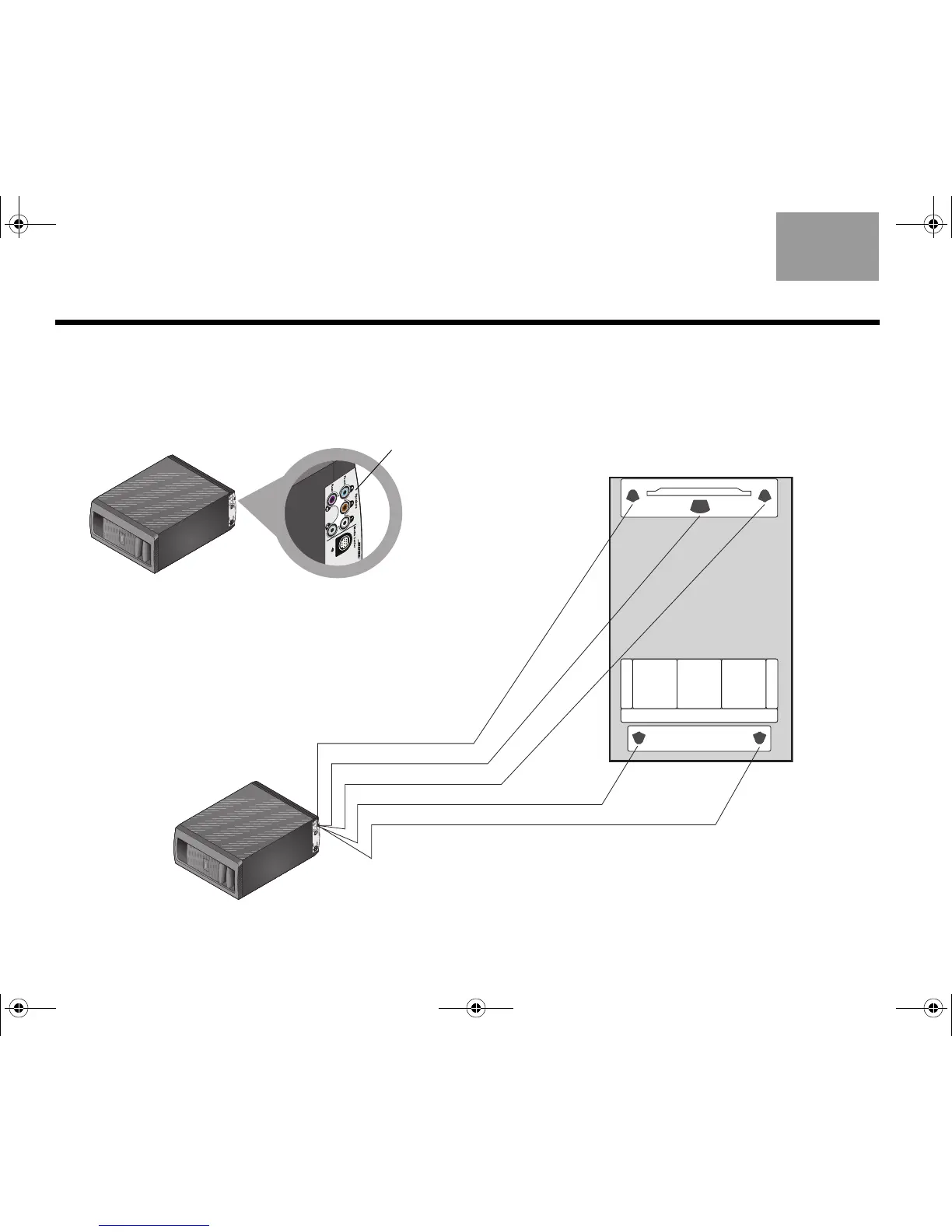

Connecting all of the speakers
1. Locate the connection panel on the lower rear of
the Acoustimass
®
module.
2. Match the color on each connector to the speaker
cable plug of the same color and insert the plug
into the matching connector.
3. Notice the letters that identify the position of the
speakers in the room view on the right.
4. Route each cable from the Acoustimass module to
the proper speaker as shown.
Use the color on the plug that is inserted into the
module as your guide.
