18

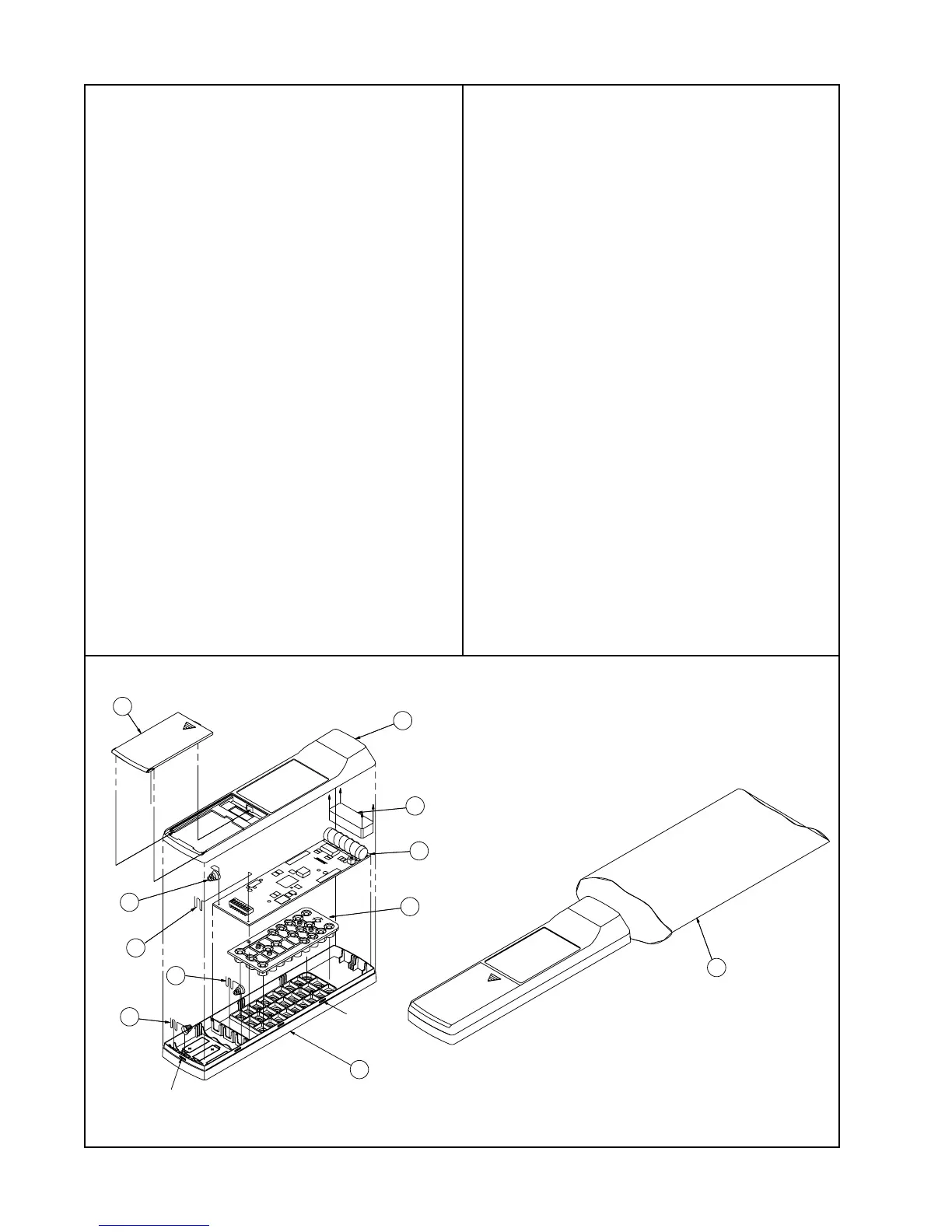

Figure 4. RC-20 Disassembly/Assembly View
RC-20 REMOTE DISASSEMBLY/ASSEMBLY
2.2 Press the top cover and bottom cover
together until they snap into place.
3. PCB Removal
3.1 Lift the PCB (1) straight up. The
springs will come up with the PCB.
4. PCB Replacement
4.1 Lower the PCB (1) into the bottom
cover (3) so that the springs are in the
battery compartment.
5. Pad Removal
5.1 The pad (2) is not secured. Grasp a
corner of the pad and lift it out.
6. Pad Replacement
6.1 Lower the pad (2) into the top cover
(4) so that the buttons line up with the
holes in the top cover.
1. Enclosure Disassembly
1.1 Slide off the battery compartment door
(5) and remove the batteries.
1.2 While holding the top cover (4) with one
hand, place your fingers from your other
hand in the battery compartment and grasp
the lower part of the bottom cover (3) with
your finger tips.
1.3 With your finger tips in the battery
compartment, first pull parallel to the unit
then pull perpendicular.
1.4 With the catches released at the bot-
tom, work your fingers up the sides to
release the rest of the catches.
2. Enclosure Assembly
2.1 Lower the bottom cover (3) onto the top
cover (4) so that the bottom cover's lip fits
over the top cover.
Note: Numbers in parentheses correspond
to the callouts in Figure 4.
5
6
7
9
8
4
2
1
10
3
11
CATCHES
CATCHES
