Installation
pro.Bose.com
Installation Guide - 21
Stereo Select Mode
Line-level sources can be connected using RCA jacks or Euroblock connectors. To connect a stereo source to RCA jacks, use either
the left or right RCA jack of each INPUT.

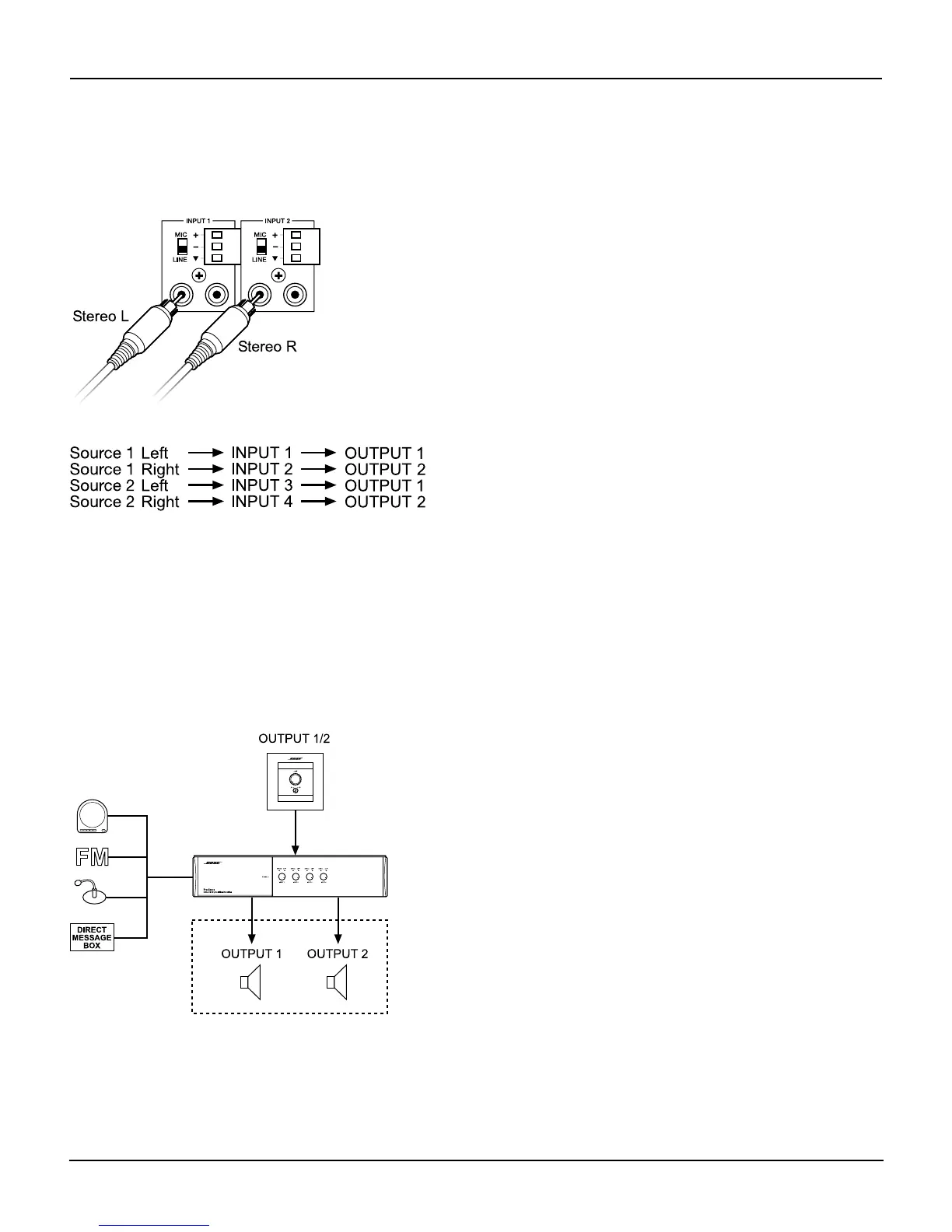

Figure 9. Stereo left and stereo right inputs
Stereo Select Mode source routing is fixed, as shown below.
Auxiliary output can be set up to:
• Play constant audio from Inputs 1 + 2 (summed to mono), Source 1.
• Play constant audio from Inputs 3 + 4 (summed to mono), Source 2.
• Track source selected using A/B select on user interface.
This mode supports the use of one user interface in a single zone using the volume control with A/B select user interface.
Note: With use of a user interface, the chassis output gain knob is disabled.
For further detail, see “Mode user interface requirements” on page 28.
Figure 10. Stereo Select Mode with volume control user interface.
