Installation
pro.Bose.com
Installation Guide - 27

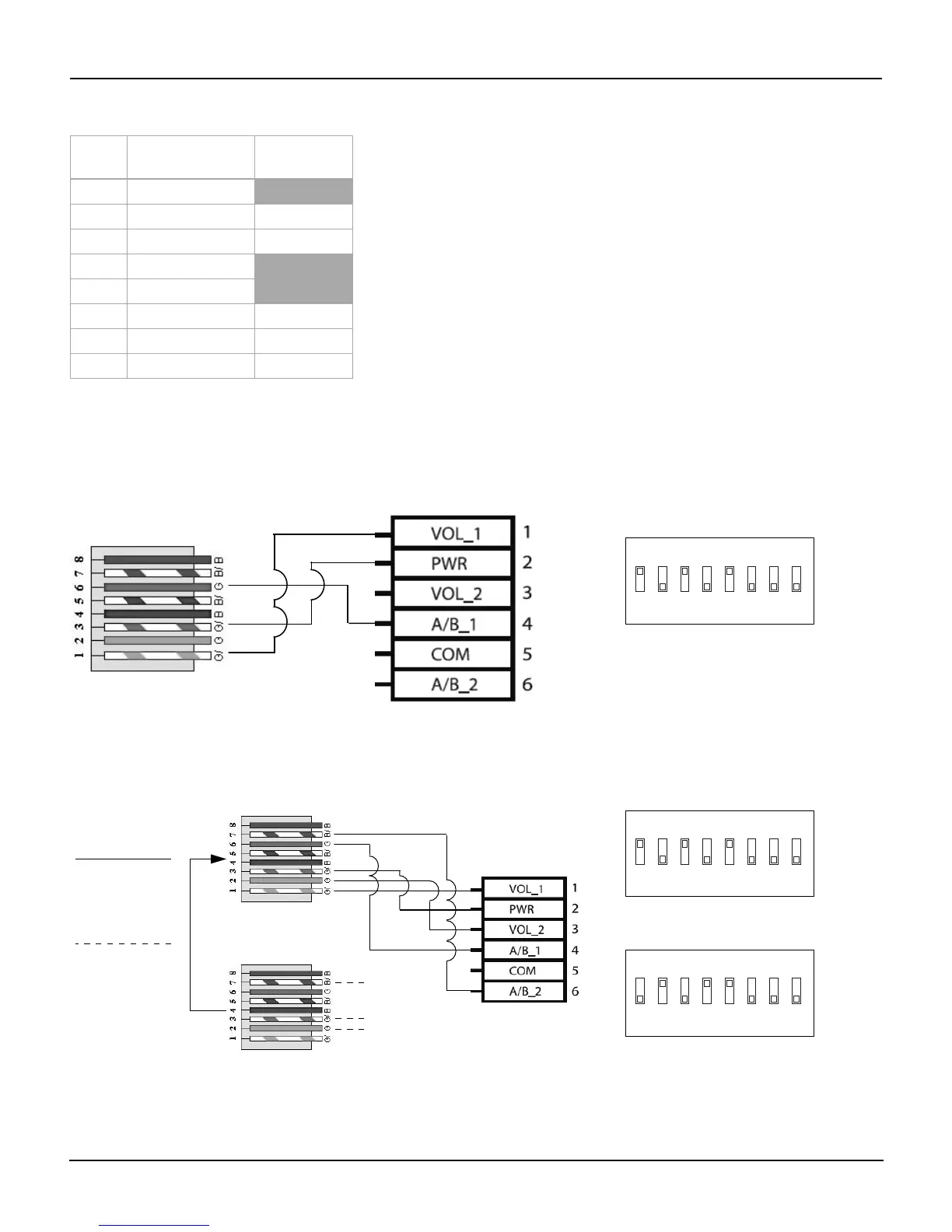

Connecting the CC-2
RJ-45 (Main)
on CC-2
RJ-45 (Main)
on CC-2
FreeSpace
DXA 2120
Wiring with
Optional CAT 5
Daisy-Chain
Wiring if Using
Two Home Runs
to DXA 2120
RJ-45 (Chain)
on CC-2 #2
RJ-45 (Main)
on CC-2 #1
FreeSpace
DXA 2120
PWR
A/B_2
VOL_2
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #2
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #2
Pin Color
FreeSpace
DXA 2120
8 Brown
7 White/Brown A/B_2
6 Green A/B_1
5 White/Blue
4 Blue
3 White/Green PWR
2 Orange VOL_2
1 White/Orange VOL_1
Connect two ganged CC-2 zone controllers to FreeSpace® DXA2120.
Connect one CC-2 zone controller to FreeSpace® DXA 2120. If one CC-2 is to be used in zone 2, then wire
into VOL_2 and A/B_2. DIP switch settings are the same.
