ControlCenter Zone Controllers
The amplifier is designed to work with the CC-1 ControlCenter Zone Controller for remote volume control,
or the CC-2 ControlCenter Zone Controller for remote volume control and A/B source selection. See the
appropriate Bose volume control user interface installation guide for more details.
RJ-45 (Main)
on CC-1 #1
FreeSpace
DXA 2120
RJ-45 (Main)
on CC-1 #1
Wiring with
Optional CAT 5
Daisy-Chain
Wiring if Using
Two Home Runs
to DXA 2120
PWR
VOL_2
RJ-45 (Main)
on CC-1 #1
RJ-45 (Chain)
on CC-1 #2
FreeSpace
DXA 2120
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #2
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #2
Pin Color
FreeSpace
DXA2120
8 Brown
7 White/Brown
6 Green
5 White/Blue
4 Blue
3 White/Green PWR
2 Orange VOL_2
1 White/Orange VOL_1

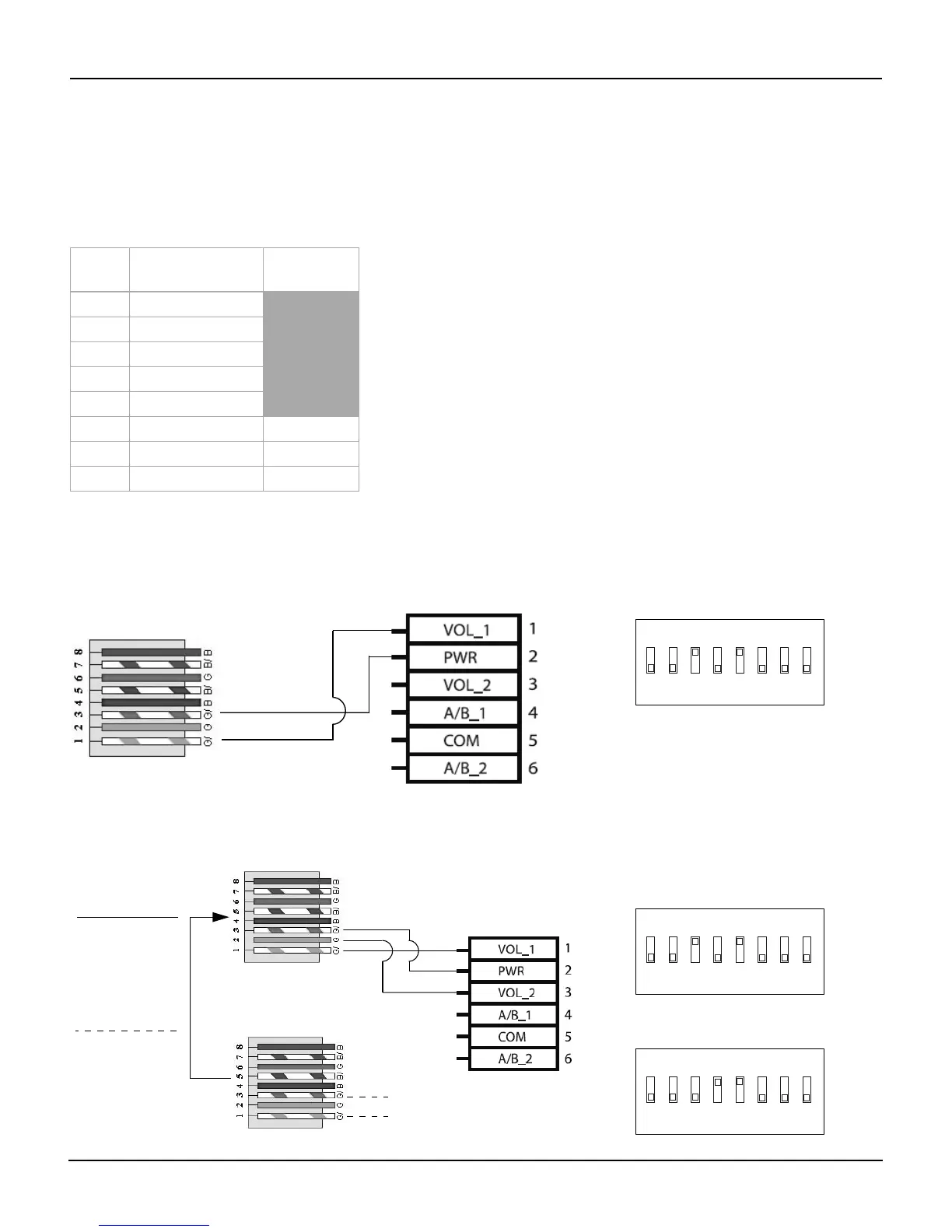

Connect one CC-1 zone controller to FreeSpace® DXA 2120. If one CC-1 is to be used in zone 2 of the DXA
2120, then wire into VOL_2. DIP switch settings are the same.
Connect two ganged CC-1 zone controllers to FreeSpace® DXA 2120.
Connecting the CC-1
