Bose SoundDock Portable Service Manual

11

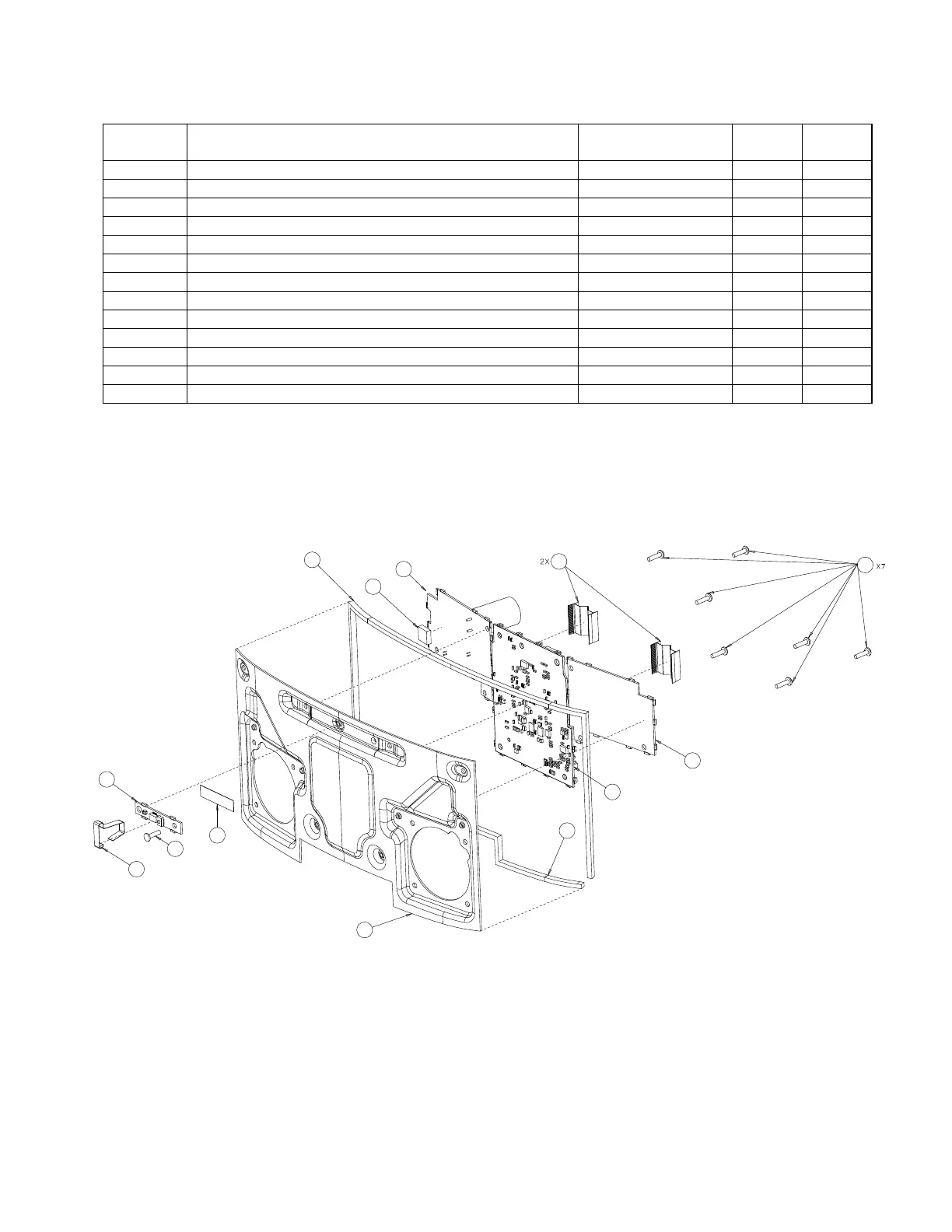

Figure 3. Baffle Assembly Exploded View
BAFFLE ASSEMBLY PART LIST
Item
Number
Description Part Number QTY Note
1 FOAM, TOP, PORON 308109-002 1
2 PAD, THERMAL 303561-001 1
3 *AMP BOARD, SVC, ROHS *307960-002 1
4 CABLE, FFC, 25POS, 38MM 301956-038 2
5 SCREW, TAPP, 6-32 x .375, PAN, TORX - 7 4
6 IR, SVC BOARD, ROHS 307961-002 1
7 CABLE, FFC, 5POS, 85MM 301957-085 1
8 SCREW, TAPP, 6-32 x. 375, PAN, TORX - 1 4
9 TAPE, FOAM 307725-012 1
10 BAFFLE, FRONT, SHEET METAL 300696-001 1
11 FOAM, BOTTOM, PORON 308110-002 1
12 *DSP, SVC BOARD, ROHS (Works With iPhone) *319975-001S 1
13 SPS, SVC BOARD, MAX, ROHS 307959-002 1
* See page 33 - Default gain adjustment
1
2
3
4
5
6
7
8
9
10
11
12
13
BOSE
®
SOUNDDOCK
®
PORTABLE DIGITAL MUSIC SYSTEM

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
