Bose SoundDock Portable Service Manual

30
TEST PROCEDURES CONTINUTED
SoundDock
®
Portable iPhone Test
Equipment Required
Apple
®
iPhone.
SoundDock system built after January 26th
2009 (DOM 9026) See cover page for de-
tails.
1. Authorization Test
1.1 Apply AC power to the SoundDock
system. Allow the system to power up by
waiting for the boot beep sound from the
speakers.
1.2 Place the iPhone on the dock cradle.

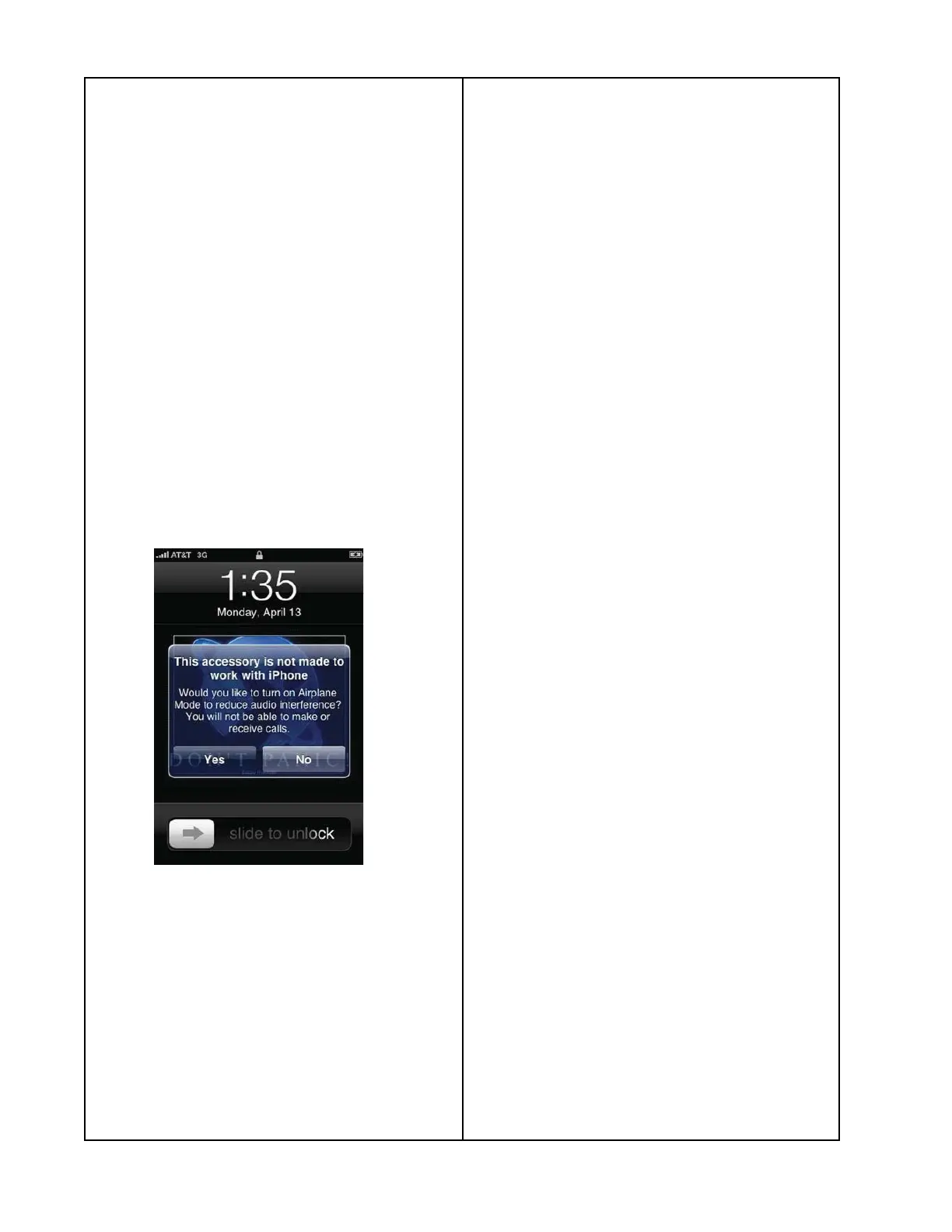

1.3 Confirm the following message does not
appear on the iPhone screen.
Note: If this screen appears on the display,
re-dock the iPhone to determine if the prob-
lem appears again. It is normal to see this
screen on an occasional basis.
2. iPhone Functional Test
2.1 Apply AC power to the SoundDock
system. Allow the system to power up by
waiting for the boot beep sound from the
speakers.
2.2 Place the iPhone on the dock.
2.3 Press the play button on the remote,
adjust the volume to a moderate level.
Confirm audio is clean and no distortion can
be heard.

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
