Bose SoundDock Portable Service Manual

12

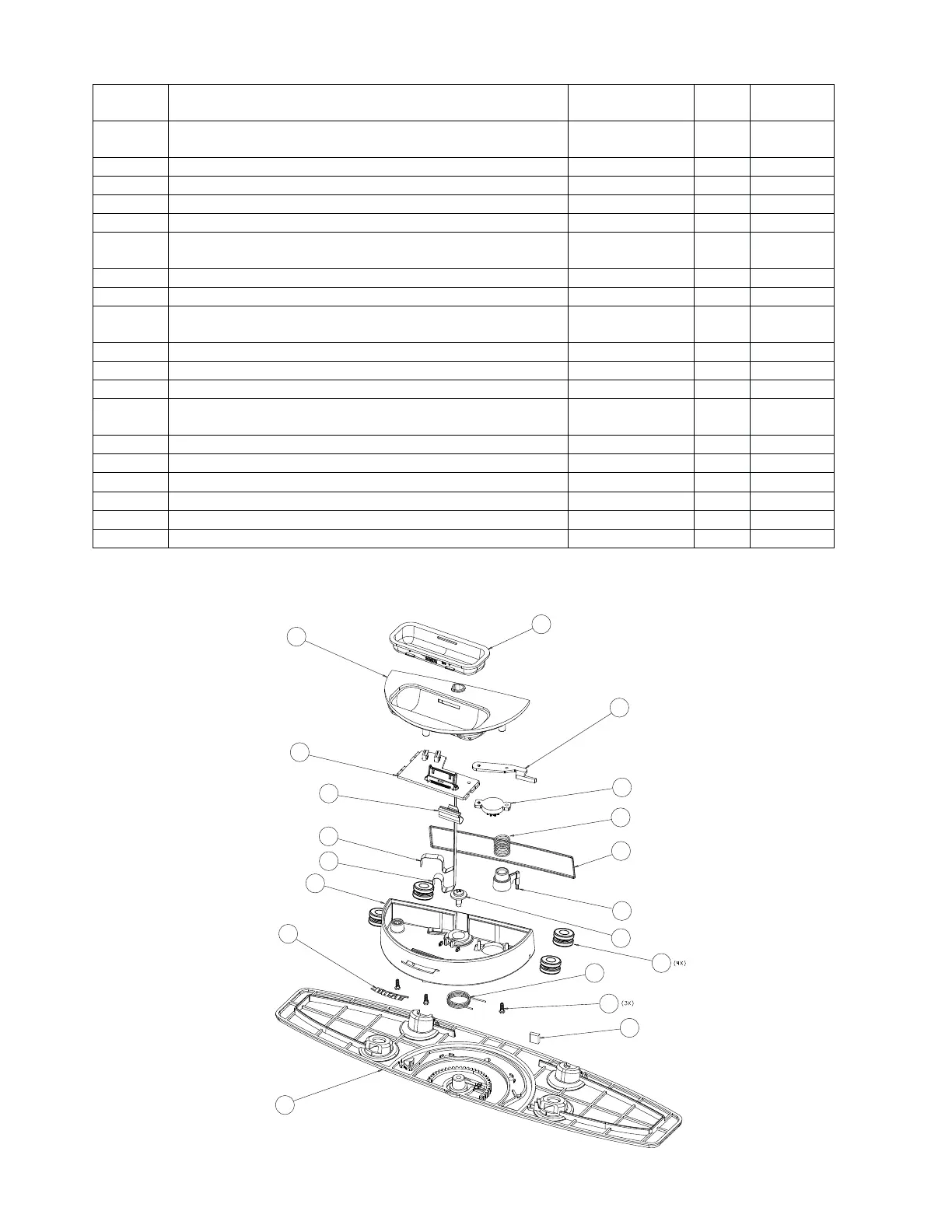

Figure 4. Dock Assembly Exploded View
DOCK ASSEMBLY PART LIST
Item
Number
Description Part Number QTY Note
1 TOP CRADLE, BLK
TOP CRADLE, WHT
300690-001
300690-002
1
2 DOCK, SVC BOARD 307958-002 1
3 INSERT CLIP 303567-001 1
4 CABLE, FFC, 8POS, 0.5P, 155MM 303564-155 1
5 CABLE, FFC, 10POS, 0.5 MMP, 165MM 303565-165 1
6 CRADLE ASSY, PTD, MED SLVR, BLK
CRADLE ASSY, PTD, MED SLVR, WHT
300685-004
300685-003
1
7 LOGO, NAMEPLATE, CURVED 301757-001 1
8 PLATE, BOTTOM ENCL, BLK 305265-001 1
9 UNIVERSAL INSERT, IPOD, BLK
UNIVERSAL INSERT, IPOD, BLK
303570-001
303570-002
1
10 PLATE, CRADLE STOP 304103-001 1
11 DAMPER, GEAR, LOW PROFILE 305113-001 1
12 SPRING, CRADLE LATCH 309584-002 1
13 DOCK, TRIM, METAL, BLK
DOCK, TRIM, METAL, WHT
301498-001
301498-002
1
14 LATCH 300686-001 1
15 SCREW-6-32-PAN_HD-ROLOK 306601-001 1
16 SPRING, DOCK 301754-001 1
17 SCREW, THD FRM, 2-28 X 1/4, PAN 289396-004 3 3
18 MAGNET, DOCK 304109-001 1
19 ISOLATION GROMMET 305269-001 4
BOSE
®
SOUNDDOCK
®
PORTABLE DIGITAL MUSIC SYSTEM
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
