Bose SoundDock Portable Service Manual

31

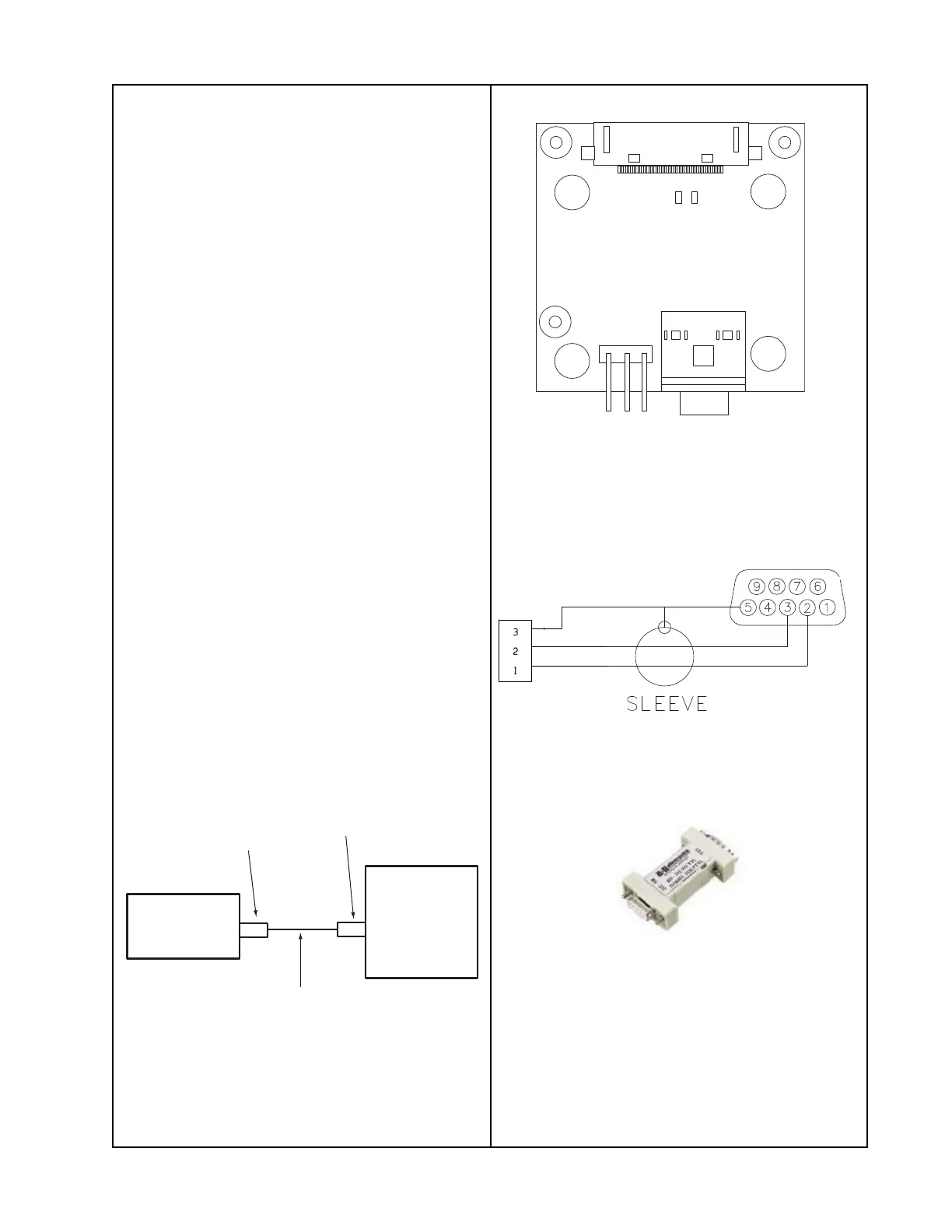

TAP COMMAND SET UP
SoundDock
®
Portable Digital Music
System TAP command set up
Equipment Required
IBM compatible computer
RS232 to TTL converter
iPod Eliminator PCB, P/N 287089
ETAP Cable, P/N 309866-001
Notes: TAP commands can be sent to the
SoundDock Portable system by connecting a
PC to the iPod eliminator board via the 30 pin
dock connector.
An ETAP cable, iPod eliminator PCB and
RS232 to TTL Converter are required for this
communication. The ETAP cable and iPod
Eliminator PCB are available from Bose
®
.
The RS232 to TTL Converter is made by
B+B electronics, model number 232LPTTL.
It can be purchased online at http://www.bb-
elec.com.
The TAP commands will be needed for the
following procedures:
A. Calibration of the DSP board and amplifier
board.
B. Battery test
ETAP cable schematic
B+B Electronics model 232LPTTL
RS232 to TTL converter
J1
1
J3
1
J2
R1 R2
iPod Eliminator PCB
Computer
SoundDock
iPod
Eliminator
PCB
RS 232 to TTL
Converter
ETAP
Cable

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
