Bose SoundDock Portable Service Manual

26

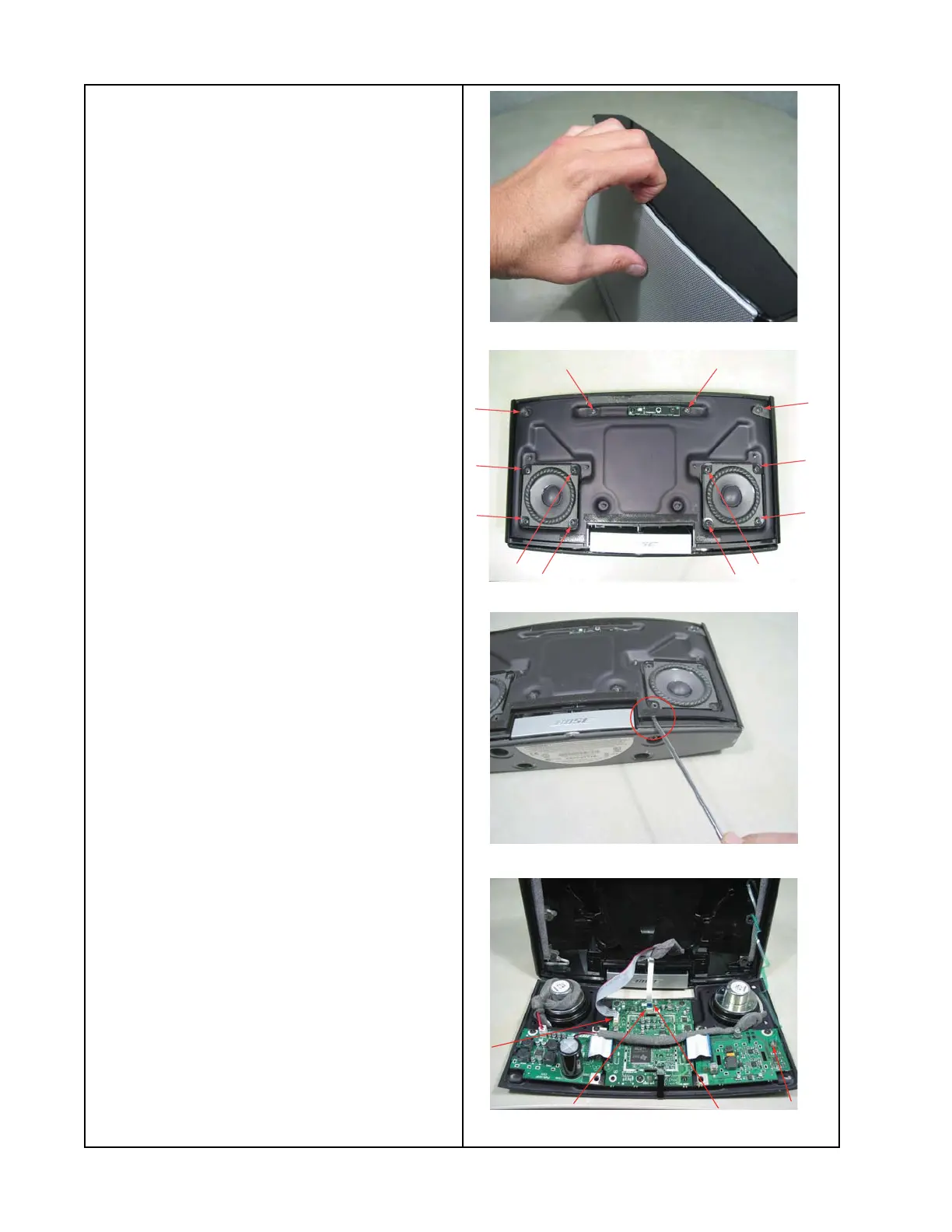

1. Grill removal
1.1 The grill is removed by pulling from the
top center. The left and right sides of the grill
are molded to fit inside the main assembly.
Pulling from the center allows the left and
right sides to dislodge and be removed. See
Figure 5.
Note: The grill and the baffle assembly have
velcro that may make removal difficult.
2. Removing Baffle Assembly
2.1 Remove the 12 Phillips-head screws that
secure the assembly. See Figure 6.
2.2 Lift the assembly using a flat blade
screwdriver. Once lifted, the baffle assembly
can be easily lifted away from the main
assembly. Be careful not to damage the
gasket that is placed under the assembley.
See figure 7.
2.3 Disconnect the J200, J201, J303 and
J400. See figure 8.
DISASSEMBLY PROCEDURES
Figure 5
Figure 6
Figure 7
Figure 8
Be careful not to
damage the gasket

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
