Brother DCP-8150DN Service Manual

3-67
Confidential
9.12 Joint cover
(1) Remove the screw pan M4x8, washer spring 2-4, washer 5 to remove the NCU earth
harness from the machine, and release the NCU earth harness from the securing fixtures.
(2) Disconnect the wireless LAN harness, USB host harness, speaker harness, and NCU
harness from the main PCB.
(3) Pull out the wireless LAN harness and the USB host harness from the main PCB shield
calking ASSY.
(4) Remove the taptite cup S M3x8 SR screw and taptite bind B M4x12 screw one at a time to
remove the earth plate.
(5) Remove the four taptite bind B M4x12 screws.
(6) Release the six hooks, and slide the joint cover in the direction of the arrow to remove it.

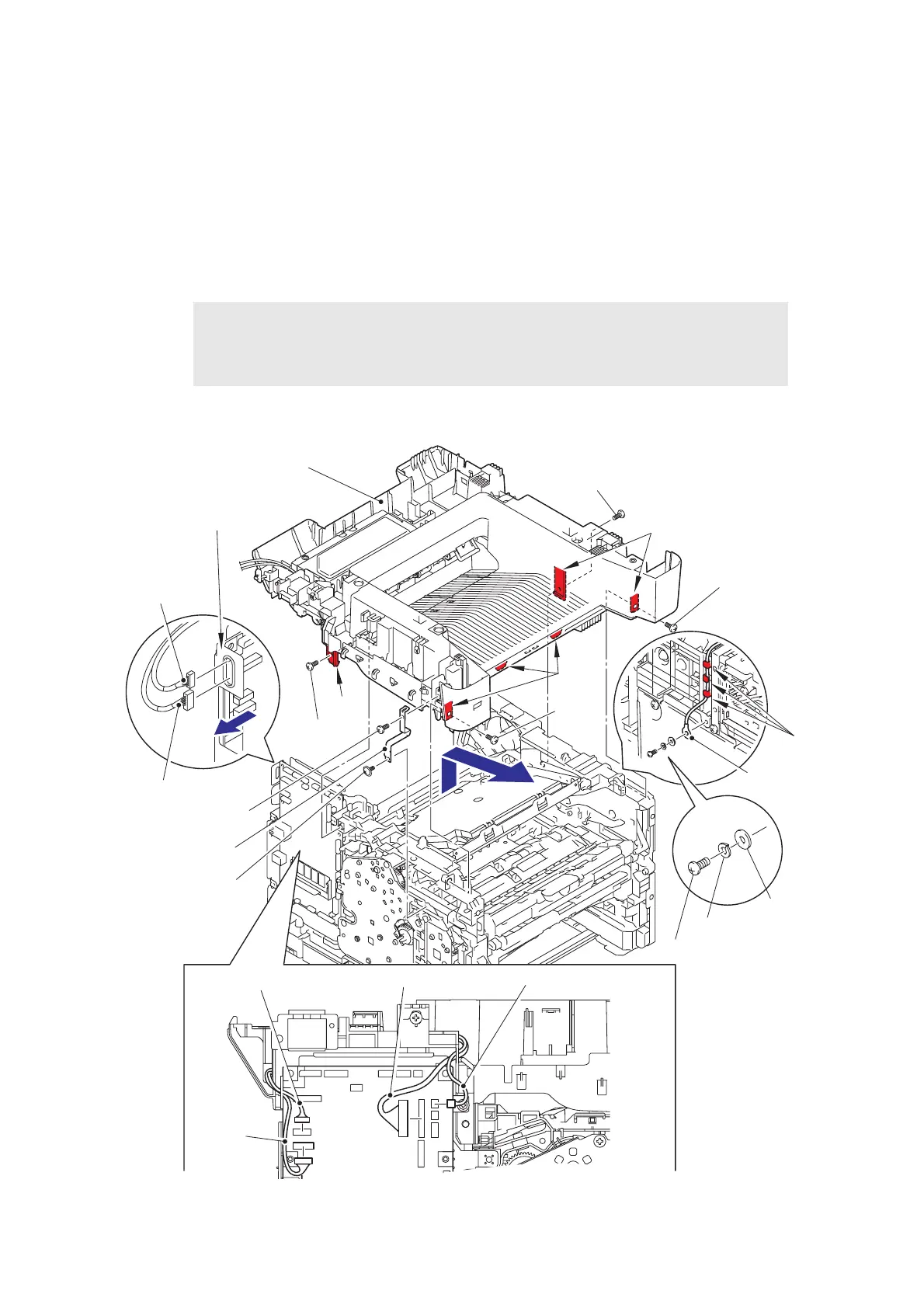

Fig. 3-92
Harness routing: Refer to “1.Main PCB ASSY” and “11.Main frame R” .
*1
For touch panel models, the taptite bind B M4x12 screw has already been
removed on earlier process.
*2
South Korean models are not equipped with the earth plate, taptite cup S M3x8
SR screw, and taptite bind B M4x12 screw.
Joint cover
Taptite bind B M4x12
Main PCB shield
calking ASSY
USB host
harness
Wireless LAN harness
Taptite bind
B M4x12
Hooks
Screw pan M4x8
NCU earth
harness
Guides
Taptite bind
B M4x12
Hooks
Speaker harness
USB host harness
Taptite
bind B
M4x12
Wireless
LAN
harness
NCU harness
*2
Taptite cup S M3x8 SR
*2
Earth plate
Hook
Washer spring 2-4
Washer 5
*1 *2
Taptite bind B M4x12

Brother DCP-8150DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	10.5 s
Scan to	E-mail, File, FTP, Image, OCR, USB
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	Legal (216 x 356) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Faxing	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	500 - 3500 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
JIS B-series sizes (B0...B9)	B5
Duplex media weight (imperial)	16 - 28 lbs
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Paper tray media weight (imperial)	16 - 43 lbs
Display	LCD
Market positioning	Business
Display number of lines	5 lines
Display number of characters	22
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Maximum internal memory	320 MB
Sound power level (standby)	37 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.4 W
Power consumption (PowerSave)	8.1 W
Power consumption (average operating)	702 W
Package depth	533.4 mm
Package width	594.36 mm
Package height	604.52 mm
Package weight	19800 g
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32.5 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	414.02 mm
Width	490.22 mm
Height	447.04 mm
