4. ASSEMBLY

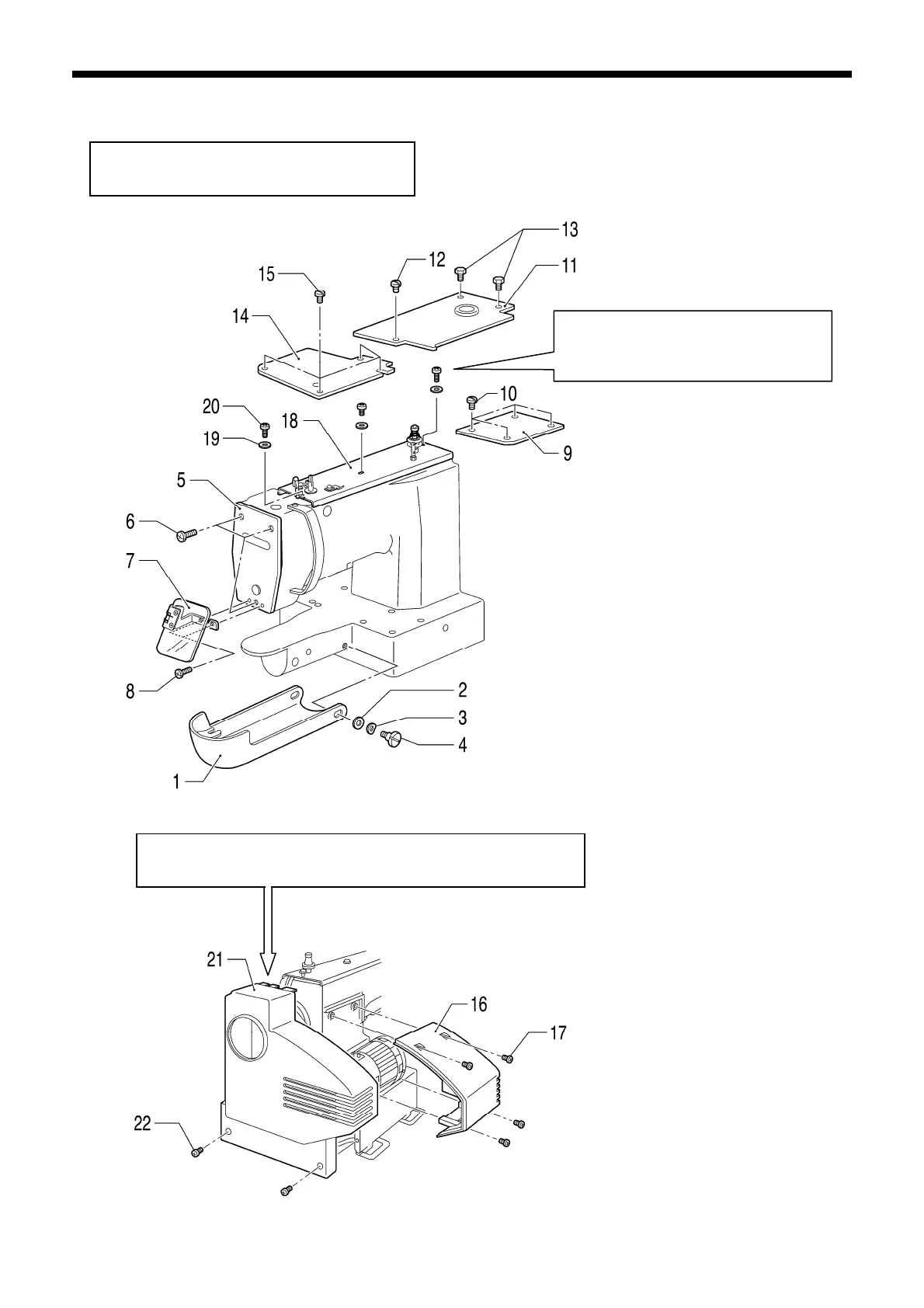

４-２１. Covers
KE-430B, 431B, 432B, 433B, BE-438B
KE-430C, 4
31C, 432C, BE-438C
Provisionally tighten this screw, and
then fully tighten it after installing the
belt cover.
3442Q
1.
Shuttle race cover assy
2. Plain washers [2 pcs]
3. Wave washers [2 pcs]
4. Shoulder screws [2 pcs]
Insert this part of the belt cover i
nto the upper cover, install it
with the two screws, and then tighten the upper cover screw.
5. Fa
ce plate assy
6. Screws [3 pcs]
7. Eye guard assy
KE-430B, 430C series
97
8.
Screws [2 pcs]
9. Bed cover, R
10. Screws [4 pcs]
11. Bed cover, LR
12. Screw
13. Bolts [2 pcs]
14. Bed cover, LF
15. Screws [4 pcs]
16. Frame side cover
17. Screws [4 pcs]
18. Top cover
19. Plain washers [3 pcs]
20. Screws [3 pcs]
3443Q
21. Belt cover
22. S
crews [2 pcs]
To Next Page
