3. DISASSEMBLY

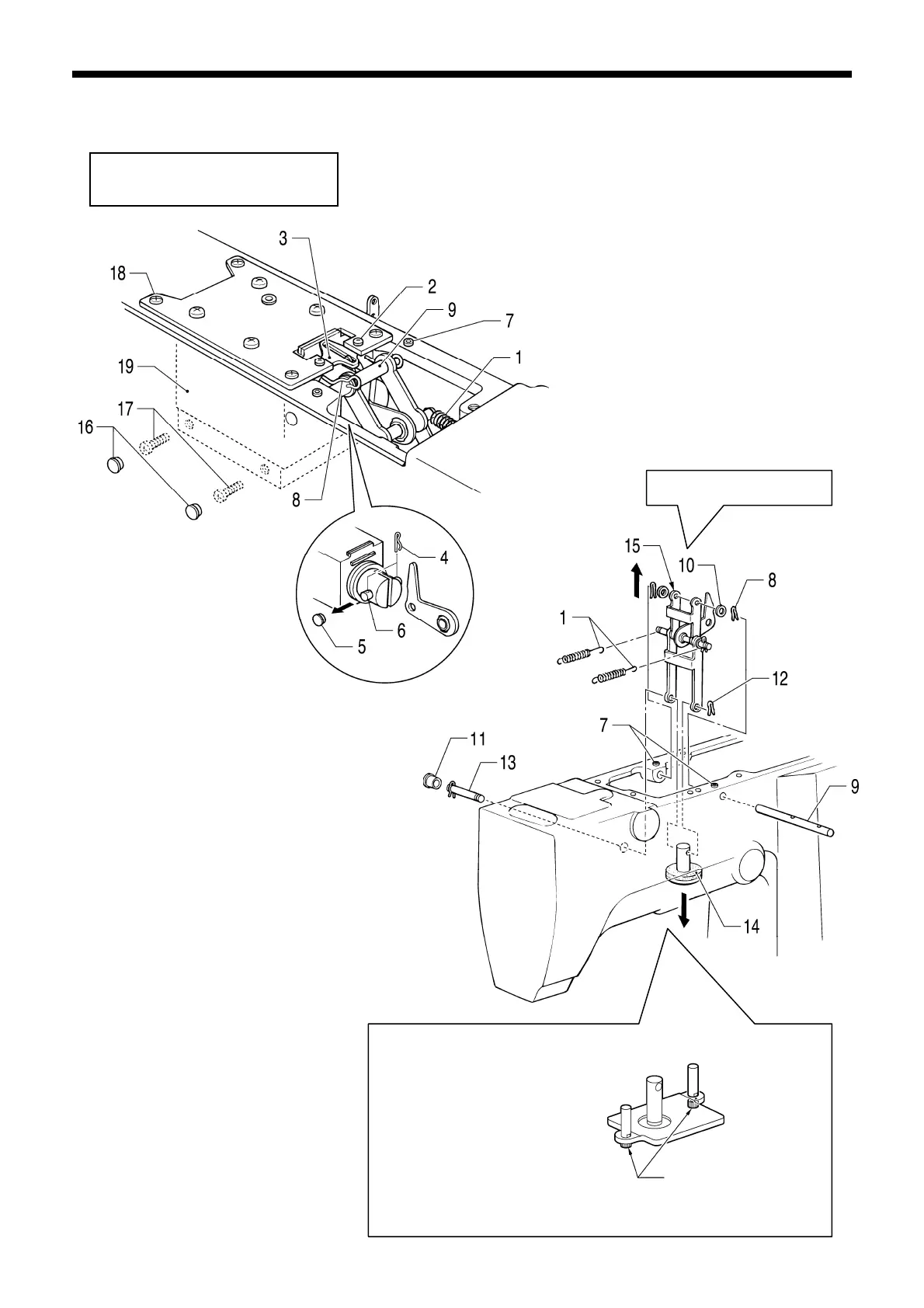

３-１４. Work clamp lifter mechanism (Solenoid specifications)
KE-430B, 431B, 433B, 434B
KE-430C, 431C, 434C
1. Springs [2 pcs]
KE-430B, 430C series
41
2.
Screws [2 pcs]
3. Guide
4. Snap pins [2 pcs]
5. Rubber cap
6. Link shaft, D [Pull out]
7. Set screws [2 pcs: Loosen]
8. Snap pins [2 pcs]
9. Link shaft, A [Pull out]
10. Washers [2 pcs]
Be careful not to drop.
3305Q
3306Q
11. Oi
l cap
12. Snap pin
13. Link shaft, C [Pull out]
14. Work clamp plate
15. Work clamp lifter link-related parts
16. Rubber caps [2 pcs]
17. Screws [2 pcs]
18. Screws [4 pcs]
19. Presser solenoid assy
[Disconnect the harness]
3307
Q
Note:
<KE-433B, 434B, 434C>
Hold the work clamp plate
when removing link shaft
C, otherwise the work
clamp plate may fall
down.
Do not remove,
otherwise the work
clamp will not move
smoothly.
To Next Page
