3. DISASSEMBL
Y
３
-
１８

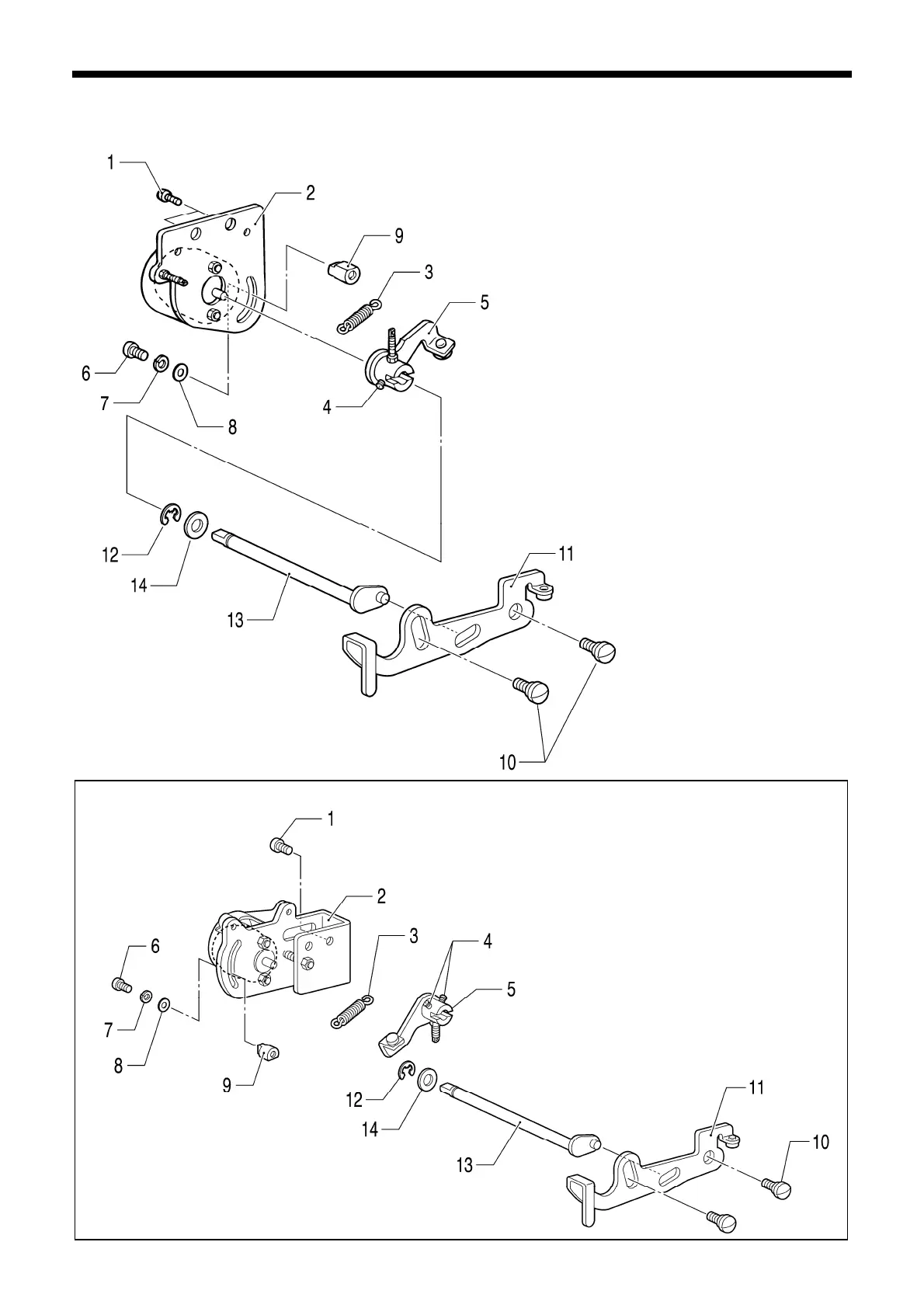

. Thread take-up mechanism
KE-430B, 430C series
49
1.
Screws [2 pcs]
2. Solenoid
setting
plate
3. Spring
4.
Set screws [2 pcs: Loosen]
5. Solenoid
joint
6. Screw
7. Spring
washer
8. Plain
washer
9. Nut
10. Shoulder screws [2 p
cs]
11. Thread take-up l
ever
12. Re
taining r
ing
13. Thread take-up l
ever crank
14. Plain washer
Stepping foot specifications
3319Q
3320
Q
55
57
