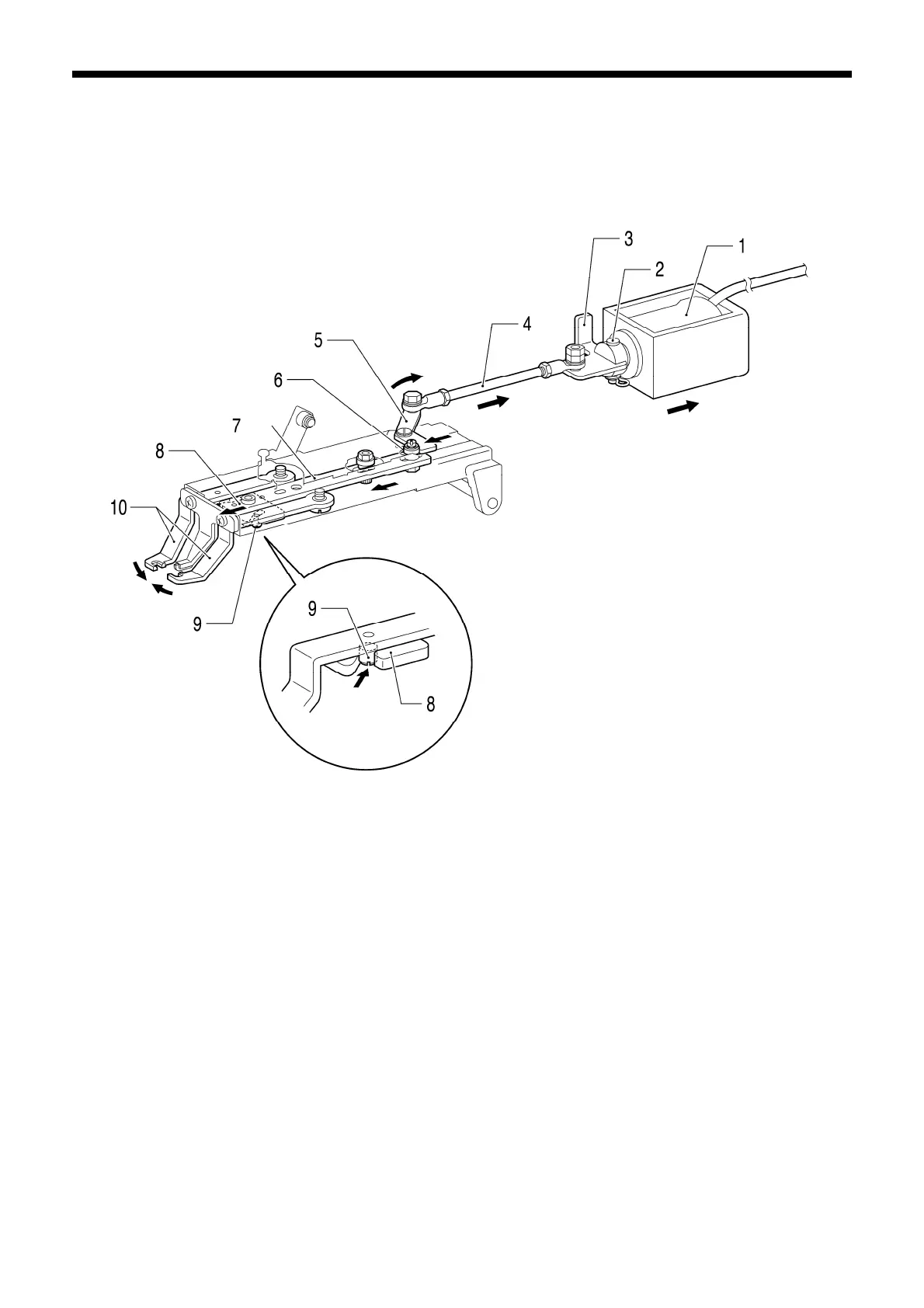

2. MECHANICAL
DESCRIPTIONS
２
-
４
. Work clamp open-close me
chanism (KE-432B, 432C)
3262Q
1. Solenoid
assy
2. OY
solenoid
pin
3. Sensor
plate
4.
Work clamp carri
er rod assy
5. Lever
6. Roller
7.
Work clamp carrier plate
8.
Work clamp guide plate
9. Screw
10.Work clam
p
KE-430B, 430C series
12
18
20
