5. ADJUSTMENT
５-５. Adjusting the shuttle race thread guide
The position of the shuttle race thread guide is adjusted at the time of shipment from the factory. It should not be
changed if at all possible.
* The KE-484C does not have a shuttle race thread guide.
<
KE-432B, 432C>
3562
Q
<BE-438B, 438C>
3452Q
1.

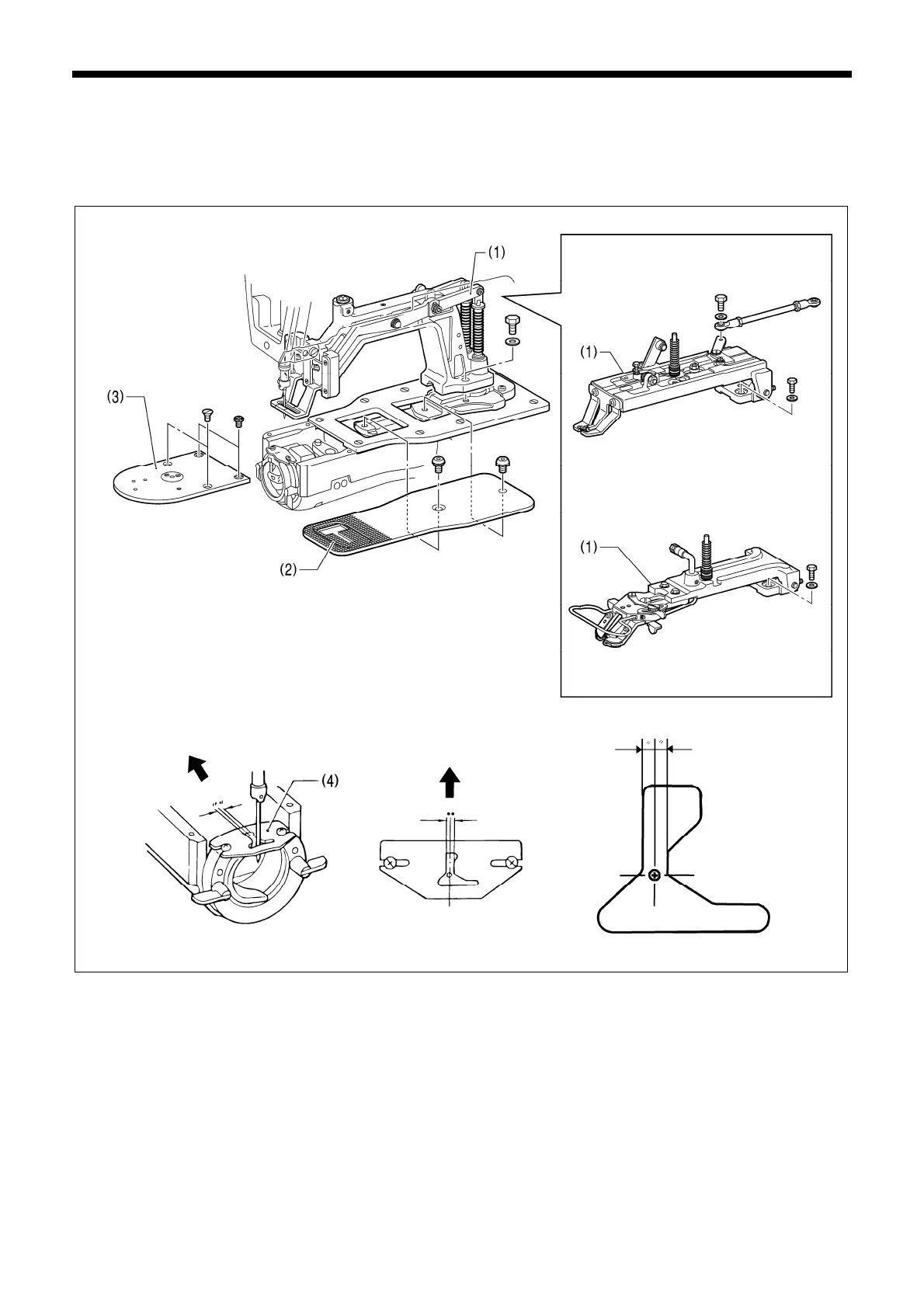

Remove the arm assembly (1), the feed plate (2) and the needle plate (3).
Remove the button clamp assembly (1), the feed plate (2) and the needle plate (3). [BE-438B, 438C]
2. While pushing the shuttle race thread guide (4) in the direction of the arrow, set the needle groove to the
center position.
Note:
If the shuttle race thread guide is in the wrong position, thread breakages, soiled thread or catching of the
thread may occur.
