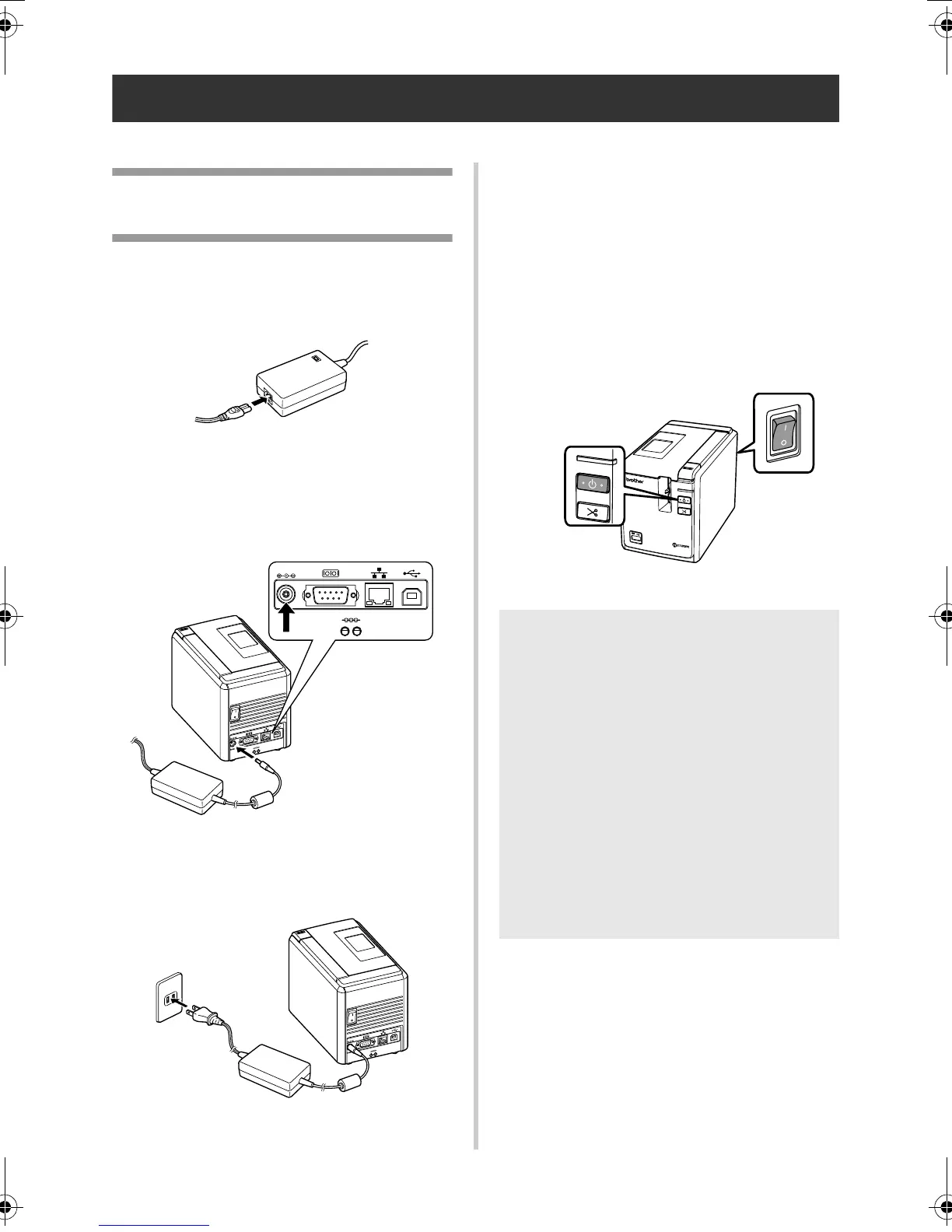

Connecting the printer
Connect the printer to the power source and a computer.
Connecting to the power
source
1
Connect the included power supply cord
to the AC adapter.
2
Insert the AC adapter connector into the
AC adapter jack on the back of the
printer.
3
Plug the power supply cord into an
electrical outlet (AC 120 V).
4
Turning on the printer
Turn on the main power switch on the
back of the printer, and then press the
power button on the front of the printer.
Turning off the printer
Hold down the power button on the front
of the printer until the printer is turned off,
and then turn off the main power switch
on the back of the printer.
DC IN 24V
DC IN 24V
DC IN 24V
Note
● Always turn the power off first using the
power button on the front of the printer
before removing the AC adapter or
turning off the main power switch.
● After using the printer, remove the power
supply cord from the electrical outlet and
the AC adapter from the printer and store
for future use.
● When removing the AC adapter, do not
pull the AC adapter cord. The wire in the
AC adapter cord may break.
● Do not use any AC adapter other than the
one included with the printer. Otherwise
the printer may malfunction.
STATUS
STATUS
Power
button
Main power
switch
