CS3000 User’s Guide
30 Calsense
3. When finished, press BACK to return to Main Menu.
Additional Steps for 2-Wire
Two wire systems use only two wires combined with a decoder. The following steps are additional
initial setup options when using 2-Wire.
Discovering 2-Wire Decoders
The 2-Wire discovery process allows the controller to automatically detect any 2-Wire decoders
attached to the 2-Wire path after they have been installed. This simplifies installation by allowing all
decoders to be installed in the field without any pre-programming.

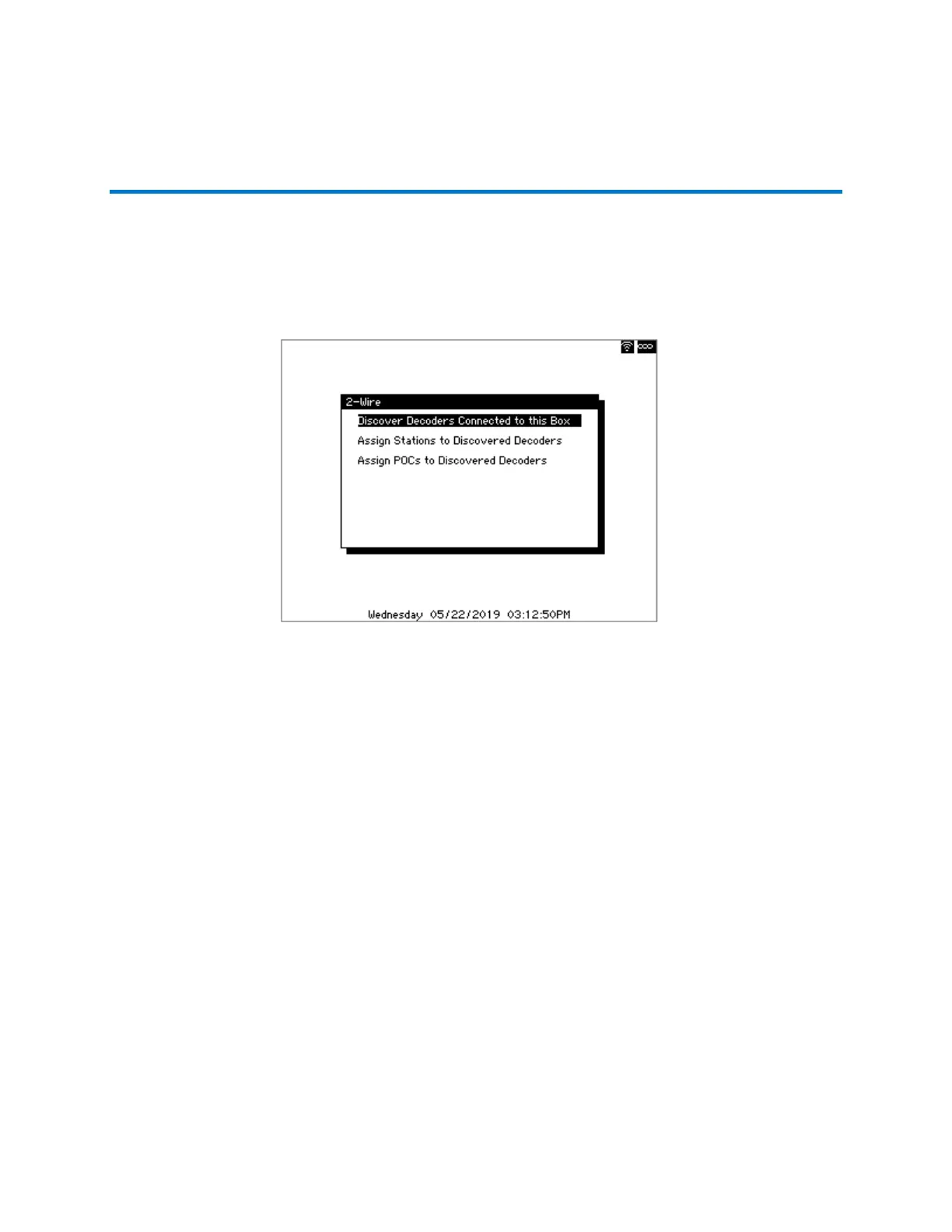

To discover all 2-Wire decoders attached to the controller (Figure 20):
1. From Main Menu, navigate to Setup and select 2-Wire. The 2-Wire dialog displays.
2. Navigate to and select Discover Decoders Connected to this Box. The controller begins scanning
for all decoders physically connected to the controller’s 2-Wire terminal.
3. Once complete, select OK on the dialog that indicates how many decoders were discovered.
