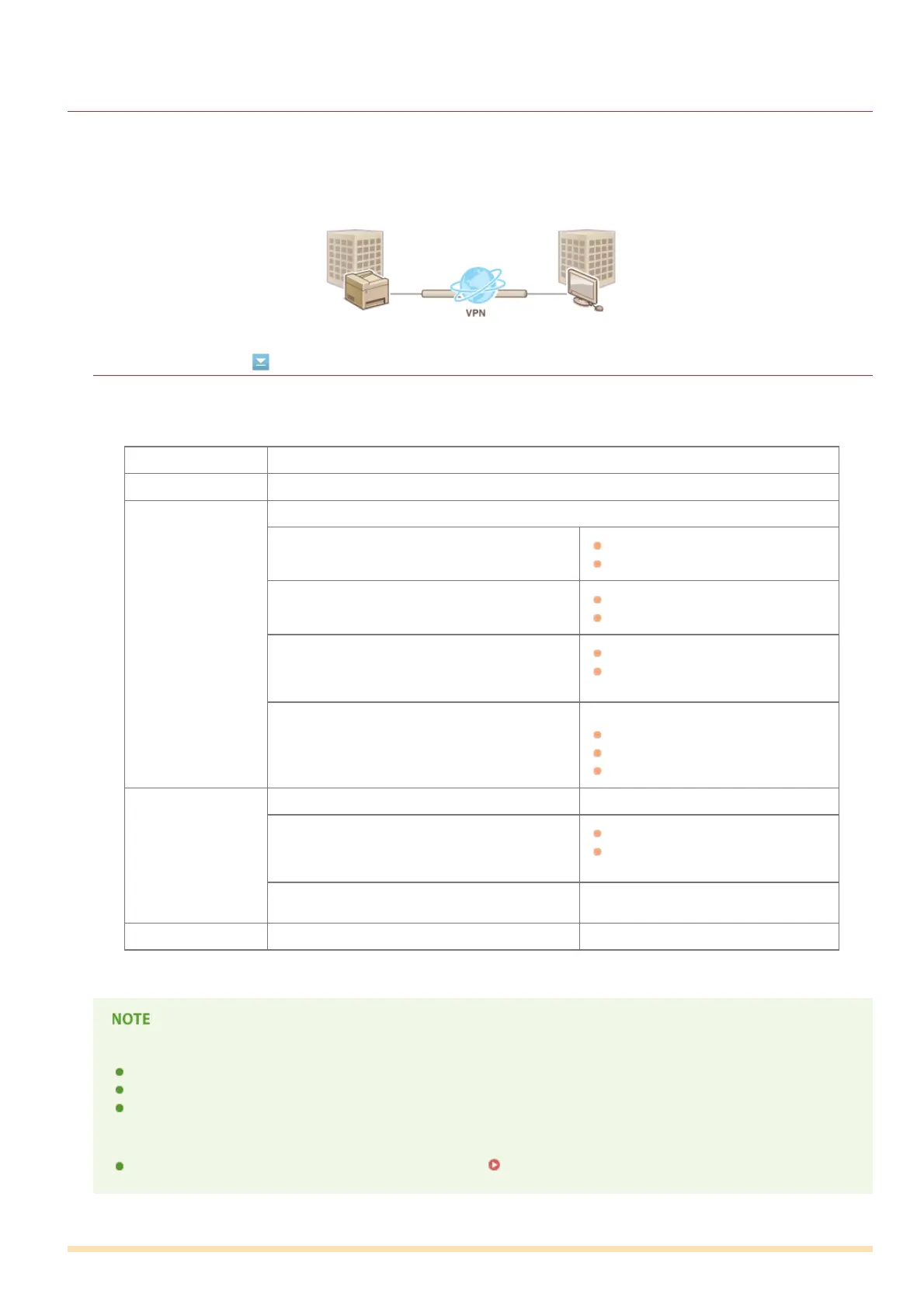

Configuring IPSec Settings
Internet Protocol Security (IPSec or IPsec) is a protocol suite for encrypting data transported over a network, including Internet networks.
While SSL only encrypts data used on a specific application, such as a Web browser or an e-mail application, IPSec encrypts either whole
IP packets or the payloads of IP packets, offering a more versatile security system. The IPSec of the machine works in transport mode,
in which the payloads of IP packets are encrypted. With this feature, the machine can connect directly to a computer that is in the same
virtual private network (VPN). Check the system requirements and set the necessary configuration on the computer before you configure
the machine.
System Requirements
IPSec functional restrictions
IPSec supports communication to a unicast address (or a single device).
The machine cannot use both IPSec and DHCPv6 at the same time.
IPSec is unavailable in networks in which NAT or IP masquerade is implemented.
Using IPSec with IP address filter
IP address filter settings are applied before the IPSec policies. Specifying IP Addresses for Firewall Rules
IPSec that is supported by the machine conforms to RFC2401, RFC2402, RFC2406, and RFC4305.
Operating system Windows Vista/7/8/Server 2003/Server 2008/Server 2012
Connection mode Transport mode
Key exchange
protocol
IKEv1 (main mode)
Authentication method
Pre-shared key
Digital signature
Hash algorithm
(and key length)
HMAC-SHA1-96
HMAC-SHA2 (256 bits or 384 bits)
Encryption algorithm
(and key length)
3DES-CBC
AES-CBC (128 bits, 192 bits, or 256
bits)
Key exchange algorithm/group (and key length)
Diffie-Hellman (DH)
Group 1 (768 bits)
Group 2 (1024 bits)
Group 14 (2048 bits)
ESP
Hash algorithm HMAC-SHA1-96
Encryption algorithm
(and key length)
3DES-CBC
AES-CBC (128 bits, 192 bits, or 256
bits)
Hash algorithm/encryption algorithm (and key
length)
AES-GCM (128 bits, 192 bits, or 256
bits)
AH Hash algorithm HMAC-SHA1-96
