2.8 FIXING UNIT/DELIVERY SYSTEM
2.8.1 Overview/Configuration
2.8.1.1 Overview
0008-0451
The fixing/delivery system consists of the fixing film unit, pressure roller, face-down delivery roller, and the like. Its rollers are driven by the main motor
(M1).
When print paper carrying a toner image arrives in the fixing assembly, the machine uses the heat from the fixing heater and the pressure from the pressure
roller to permanently fuse the toner with the fibers of the print paper before it moves out of the fixing assembly.
Once outside the fixing assembly, the print paper is delivered to the delivery tray by the work of the face-down delivery roller upon detection by the delivery
sensor (PS803).

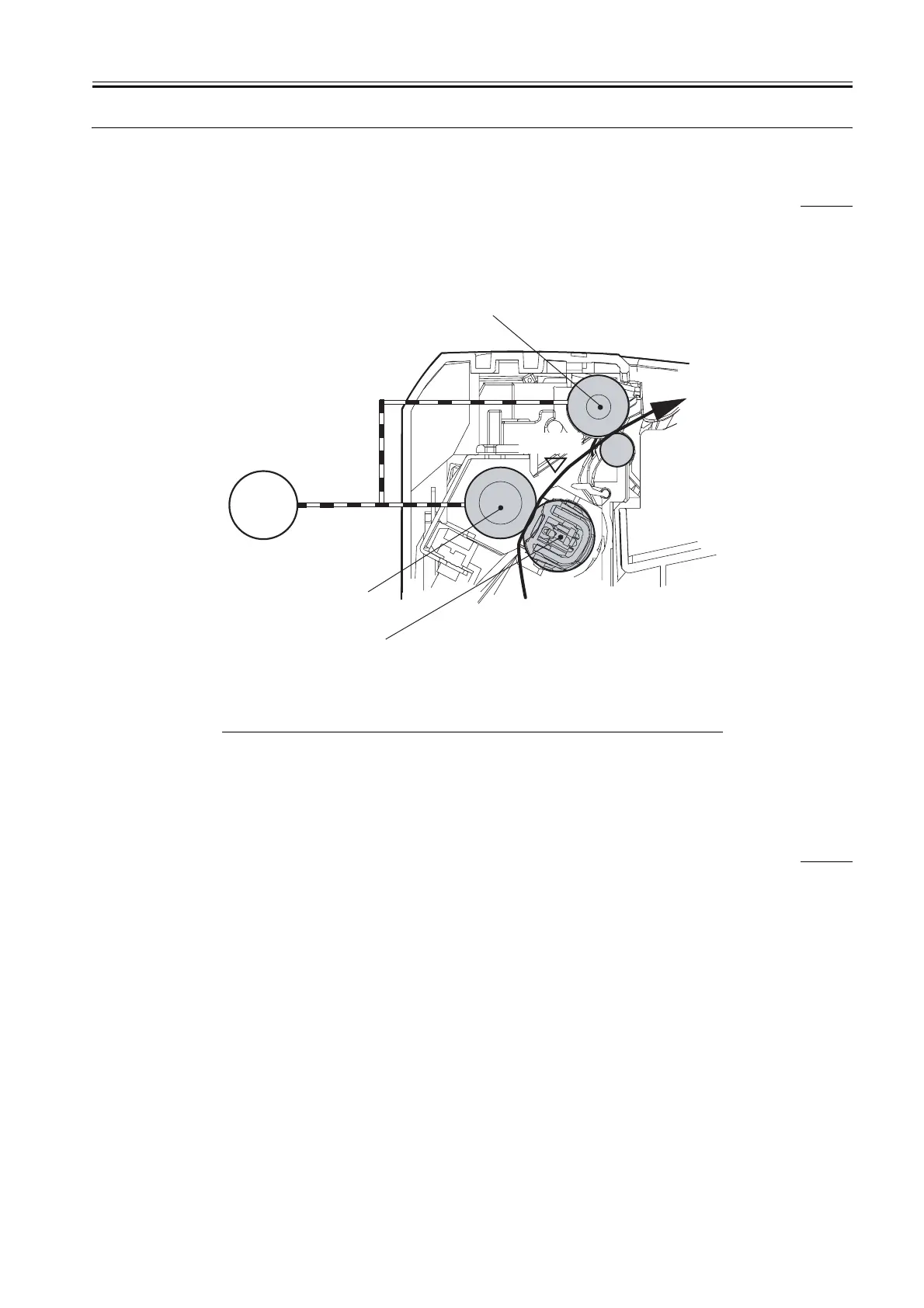

F-2-23
T-2-3
2.8.1.2 Major Components of the Fixing Assembly
0008-0914
The fixing assembly consists of the following major components possessing the functions described:
Name
[1] Fixing film unit
PS803 delivery sensor
[2] Pressure roller
M1 main motor
[3] Face-down delivery roller
M1
PS803
[1]
[2]
[3]
