Chapter 3
3-15
3.2.1.4 Removing the Engine Controller PCB
0008-3551
1) Remove the 4 screws [1].

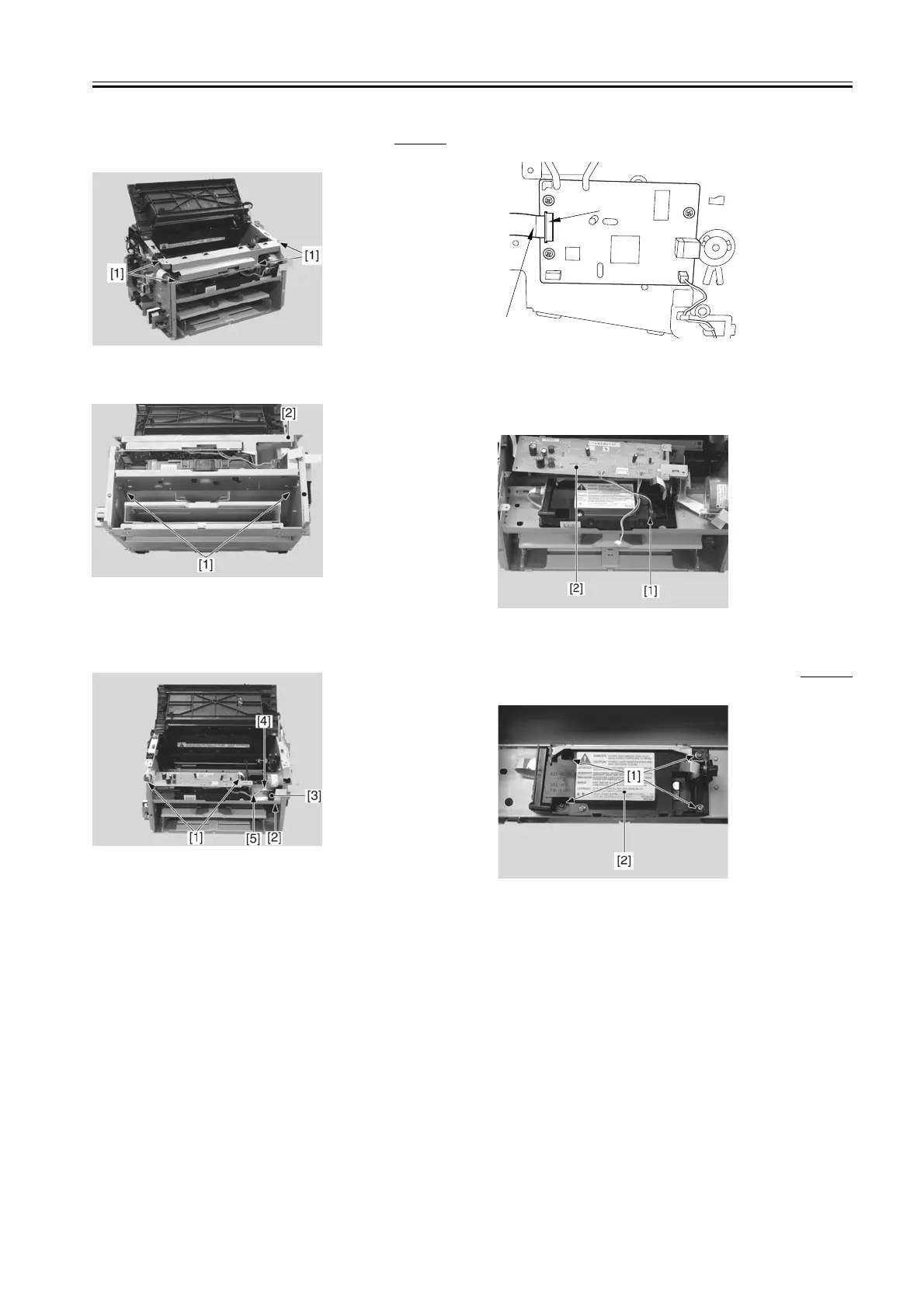

F-3-68
2) Remove the 2 claws [1], and detach the scanner cover [2].
F-3-69
3) Free the 2 flat cables [1].
4) While pushing on the pin [2], free the cable guide [3].
5) Disconnect the connector [4].
6) Remove the screw [5].
F-3-70
7) Disconnect the cable connector [1] found on the right side of the
machine; then, detach the full flat cable [2].
F-3-71
8) Disconnect the connector [1], and detach the engine controller PCB
[2].
F-3-72
3.2.1.5 Removing the Laser Scanner Unit
0008-1063
1) Remove the 4 screws [1], and detach the laser scanner unit [2].
F-3-73
[2]
[1]
