Chapter 3
3-17

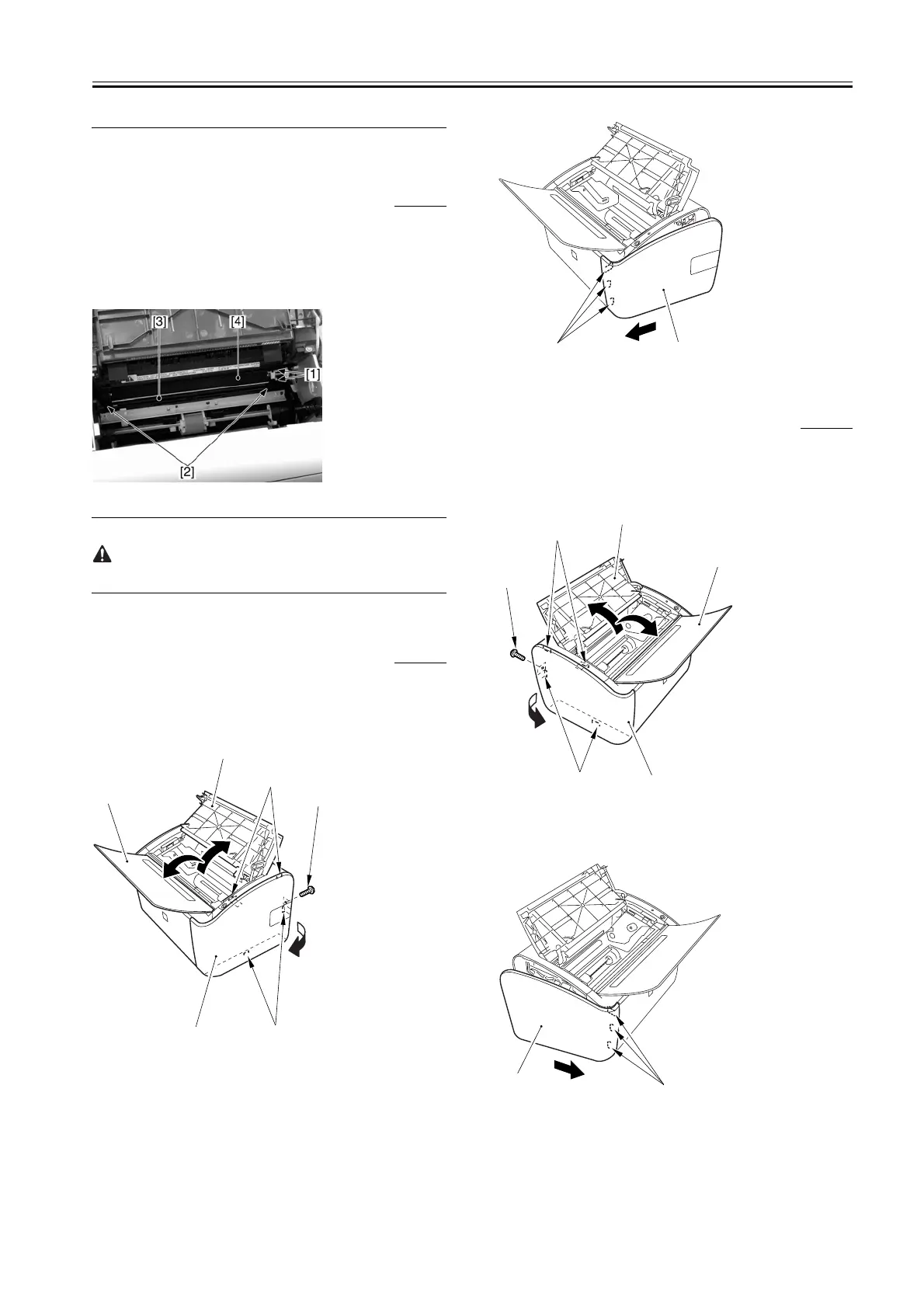

3.4 PICKUP AND FEEDING SYSTEM
3.4.1 Pickup Unit
3.4.1.1 Removing the Transfer Charging Roller
0008-3559
1) Open the delivery tray.
2) Open the upper cover.
3) Remove the 2 claws [1] of the transfer charging roller.
4) Remove the 2 claws [2] of the transfer guide.
5) Detach the transfer charging roller [4] together with the transfer guide
[3].
6) Detach the transfer charging roller [4] from the transfer guide [3].
F-3-75
When removing the transfer roller from the machine, free its right side
([1] in the figure), and pull it out toward the right.
3.4.1.2 Removing the Right Cover
0008-3586
1) Open the delivery tray [1].
2) Open the upper cover [2].
3) Remove the screw [3].
4) Remove the 4 claws [4], and slide the right cover [5] in the direction
of the arrow.
F-3-76
5) Remove the 3 claws [1], and slide the right cover [2] in the direction
of the arrow to detach.
F-3-77
3.4.1.3 Removing the Left Cover
0008-3587
1) Open the delivery tray [1].
2) Open the upper cover [2].
3) Remove the screw [3].
4) Remove the 4 claws [4], and slide the left cover [5] in the direction of
the arrow.
F-3-78
5) Remove the 3 claws [1], and slide the left cover [2] in the direction of
the arrow to detach.
F-3-79
[1]
[2]
[
3]
[4]
[4]
[5]
[1]
[2]
[1
]
[2]
[
3]
[4]
[4]
[5]
[1]
[2]
