External Device Input Setting Tool
Below is a description of the External Device Input function which performs video recording when
a signal from an external device connected to the Multi-Terminal Module (→ P.1-12) such as a
sensor is sent to the VB-C50i/VB-C50iR.

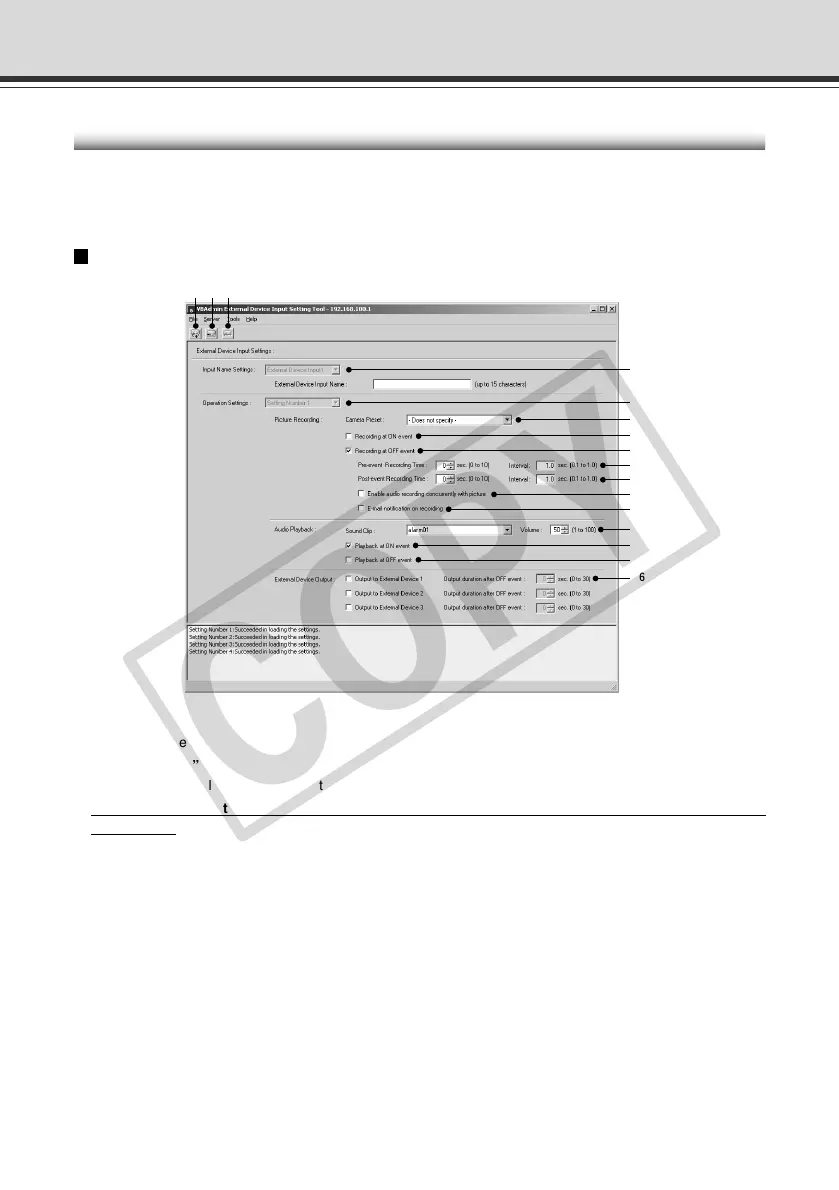

External Device Input Setting Tool Display Screen
q “Load Settings” button
Loads the External Device Input settings currently set in the VB-C50i/VB-C50iR.
w “Save Settings” button
Saves the External Device Input settings edited using this Tool.
After setting the External Device Input function, be sure to click the “Save Settings” button to save
the settings.
e “Stop Communication” button
This button can be clicked during communication with the VB-C50i/VB-C50iR to abort the connection.
r Input Name Settings
Select an External Device Input 1 or 2 and enter an External Device Input Name.
t Setting number selection box
Select the number of the setting you want to use.
y Camera Preset
Select the camera position for picture recording. Select from “Not specified” or “registered preset names”.
u Recording at ON event
Check to perform picture recording when there is ON input from the external device.
i Recording at OFF event
When selected, performs picture recording when input from the external device is OFF.
Schedule Setting Tool
!5
!6
!4
!1
