Before Using the VB-C50i/VB-C50iR
System Components and Their Operation

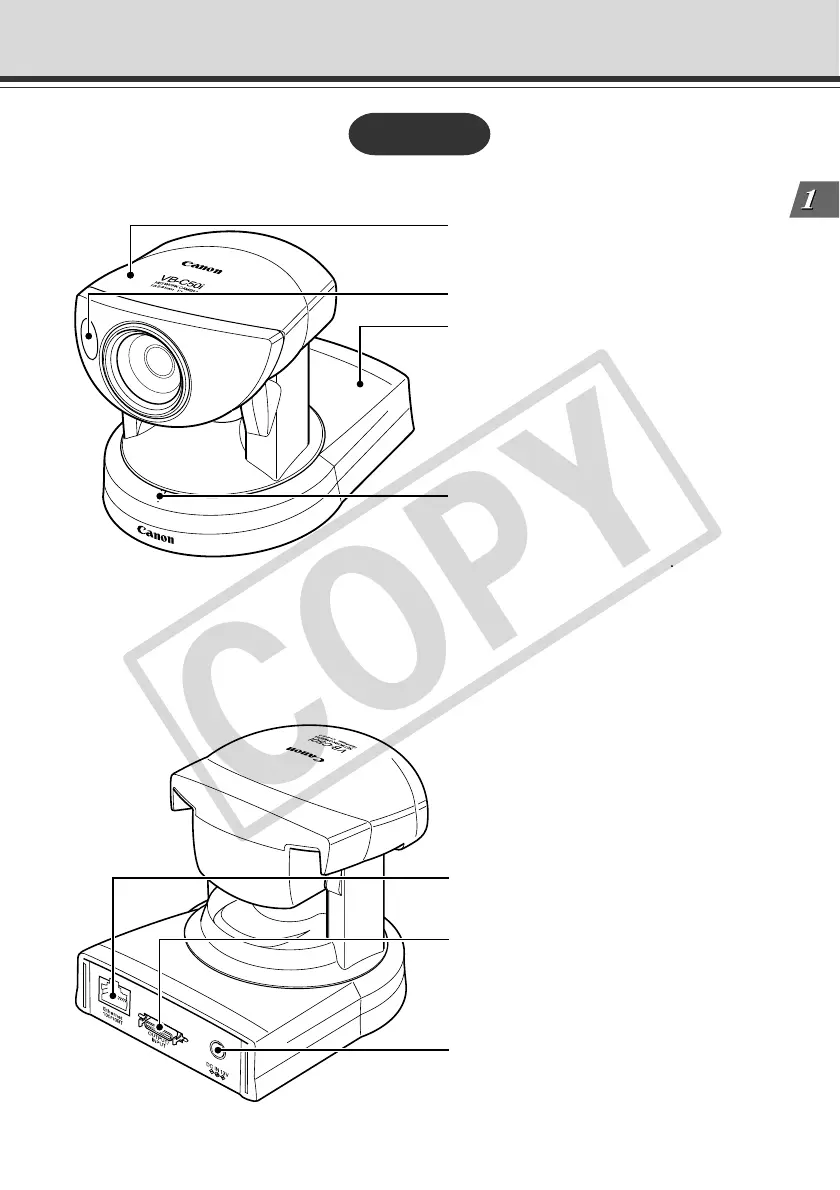

VB-C50i
Camera head
Base
Power connection socket
Multi-connector
You can connect the Multi-Terminal
Module VB-EX50 to the VB-C50i/VB-
C50iR via the connector (→ P.1-12).
100/10 BT Ethernet connector
(100Base-TX, 10Base-T Auto-Negotiation)
Front
Rear
Infrared light
LAN status LED
The LED blinks during communication.
100Base-TX .......................... Green
10Base-T ............................... Orange
* You can set the LED to always light up
even during communication. In this
case, you can select from a green,
orange or red light color. You can also
set the LED not to light up (→ P.3-28).
* Cannot be used inside
a dome housing.
