External Connections 107
Connection Diagrams

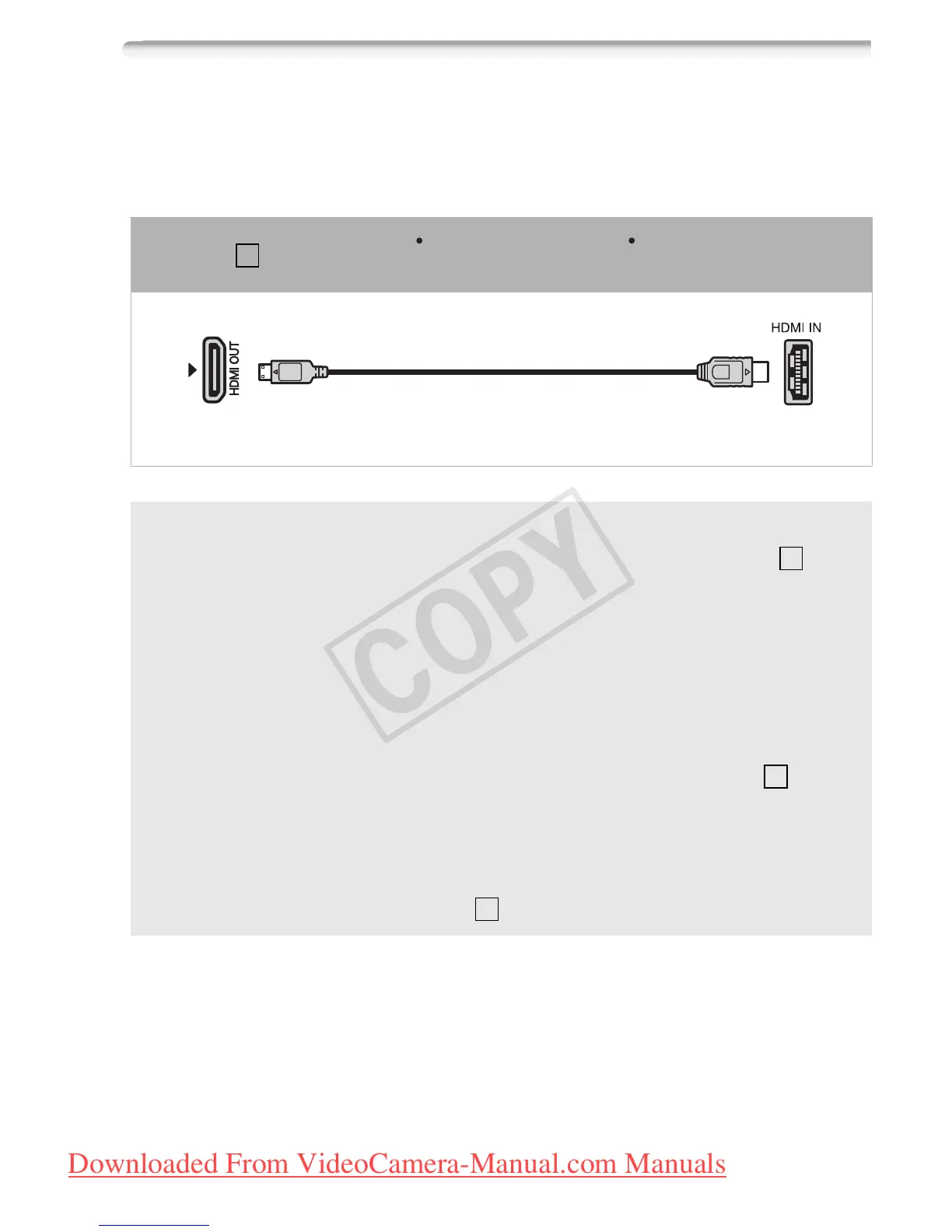

In the following connection diagrams, the left side shows the terminals
on the camcorder and the right side shows (for reference only) an
example of terminals on a connected device.
Connection
Type: Digital Quality: High definition Output only
Connect to a high-definition TV (HDTV) with an HDMI input terminal.
1
HTC-100 HDMI Cable
(optional)
(HDMI mini connector) (standard HDMI
connector)
About the HDMI
TM
connection
The HDMI (High-Definition Multimedia Interface) connection ( ) is a
convenient all-digital connection using a single cable for both video
and audio. When you connect the camcorder to an HDTV equipped
with an HDMI terminal, you can enjoy video and audio playback at
the highest quality.
- The HDMI OUT terminal on the camcorder is for output only. Do not
connect it to an HDMI output terminal on an external device, as this
may damage the camcorder.
- While the camcorder is connected to an HDTV using connection , there
will be no video output from other terminals.
- Correct operation cannot be guaranteed when connecting the
camcorder to DVI monitors.
- Depending on the HDTV, correct playback of personal video content may
not be possible using connection . Try one of the other connections.
1
1
1
