104

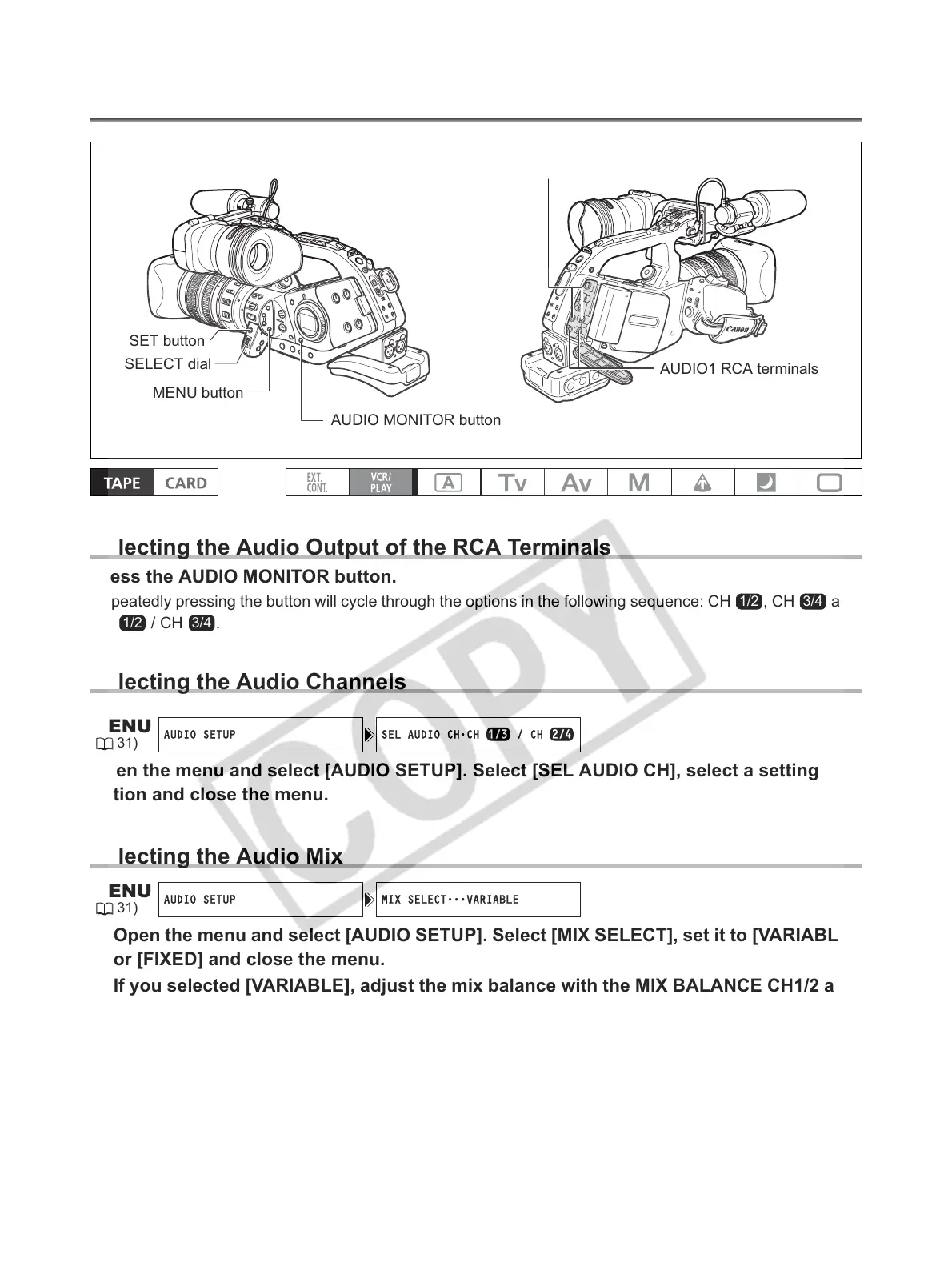

Audio Output
Selecting the Audio Output of the RCA Terminals
Press the AUDIO MONITOR button.
Repeatedly pressing the button will cycle through the options in the following sequence: CH , CH and
CH / CH .
Selecting the Audio Channels
Open the menu and select [AUDIO SETUP]. Select [SEL AUDIO CH], select a setting
option and close the menu.
Selecting the Audio Mix
1. Open the menu and select [AUDIO SETUP]. Select [MIX SELECT], set it to [VARIABLE]
or [FIXED] and close the menu.
2. If you selected [VARIABLE], adjust the mix balance with the MIX BALANCE CH1/2 and
CH3/4 buttons on the wireless controller.
MENU
( 31)
AUDIO SETUP SEL AUDIO CH
CH / CH
MENU
( 31)
AUDIO SETUP MIX SELECT
•••
VARIABLE
AUDIO MONITOR button
AUDIO2 RCA terminals
AUDIO1 RCA terminals
SET button
MENU button
SELECT dial
1/2 3/4
1/2 3/4
1/3 2/4
