36
Playing Back on a TV Screen
The AV terminal also serves as headphones terminal. When "H" is displayed on the
screen, change the setting following the procedure below.
Open the menu and select [VCR SETUP]. Select [AV/PHONES H ], set it to
[AV] and close the menu.

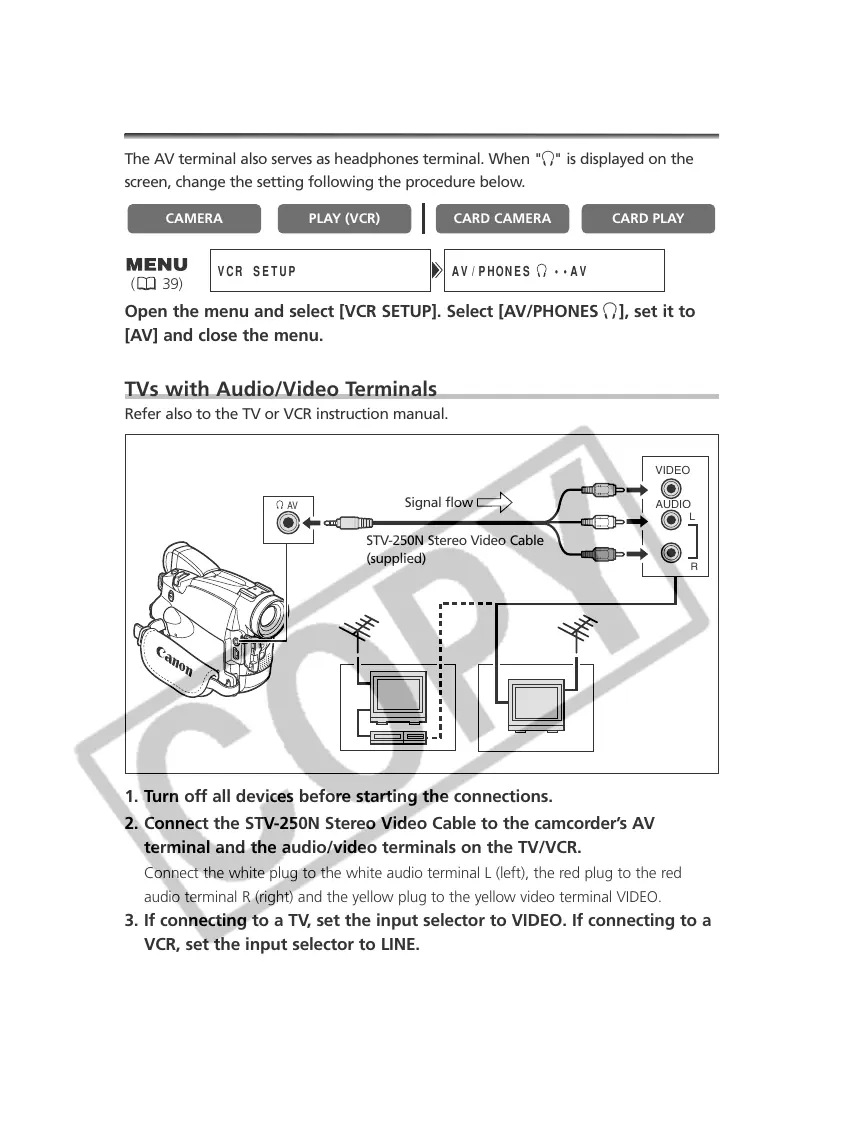

TVs with Audio/Video Terminals
Refer also to the TV or VCR instruction manual.
1. Turn off all devices before starting the connections.
2. Connect the STV-250N Stereo Video Cable to the camcorder’s AV
terminal and the audio/video terminals on the TV/VCR.
Connect the white plug to the white audio terminal L (left), the red plug to the red
audio terminal R (right) and the yellow plug to the yellow video terminal VIDEO.
3. If connecting to a TV, set the input selector to VIDEO. If connecting to a
VCR, set the input selector to LINE.
PLAY (VCR)CAMERA
VIDEO
AUDIO
L
R
AV
STV-250N Stereo Video Cable
(supplied)
Signal flow
( 39)
To Next Page
