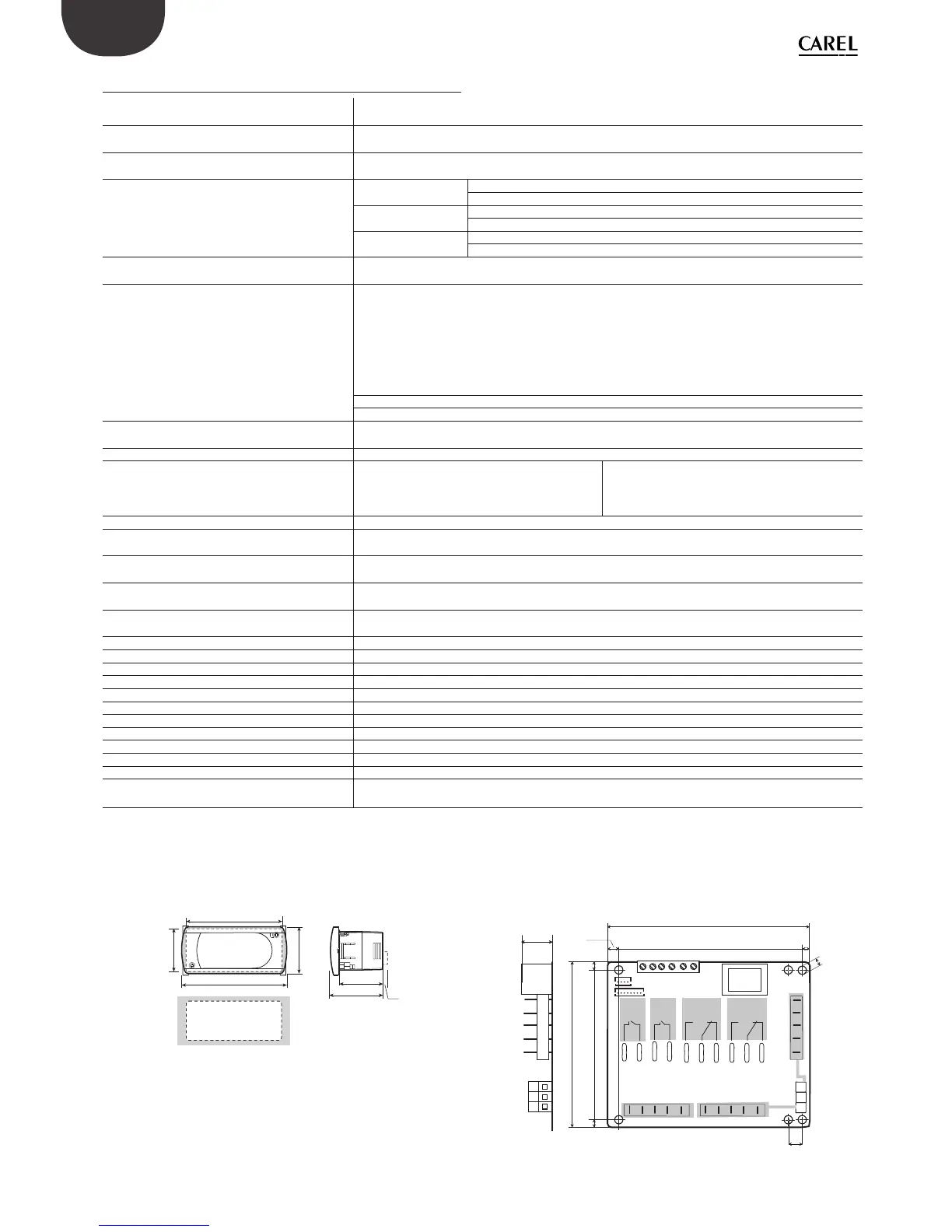

6.3 easy split technical speci cations
power supply (*) 230 Vac +10/-15%, 50/60 Hz;
115 Vac +10/-15%, 50/60 Hz
power input (controller only) 7 VA: 30 mA~ at 230 Vac;
7 VA: 60 mA~ at 115Vac
inputs 2 probe inputs, NTC (-50T90°C) or HT NTC(-40T150°C);
1 digital input as alternative to third probe
relay outputs (***) RL1: EN60730-1: 12(10)A 250Vac 100000 cycles,
UL: 16A Res. 16FLA 96LRA 250Vac (**) 30000 cycles
RL4: EN60730-1: 12(10)A 250Vac 100000 cycles,
UL: 12A Res. 12FLA 72LRA 250Vac (**) 30000 cycles
RL3, RL2: EN60730-1: 12(2)A 250Vac 100000 cycles (N.O. contact only),
UL: 12A Res. 2FLA 12LRA 250Vac (**) 30000 cycles
type of probe Std CAREL NTC 10k ±1% at 25°C
Std CAREL NTC-HT 50k ±1% at 25°C
connections - input/output signals: screw terminals with cables from 0.5 to 1.5 mm
2
;
- faston terminals: recommended cable cross-section 2.5 mm2 for current ratings up to 16 A;
- use:
- cables with max. operating temperature at least 90 °C;
- fully insulated faston terminals with max. operating temperature at least 100 °C;
- power supply: cable cross-section 2.5 mm
2
for current ratings up to 16 A and 4 mm
2
for current ratings up
to 24 A;
- earth connections: see the instructions about power supply connections.
PJEZ*8**4* (without plastic case): maximum supply current 24 A
PJEZ*8**5* (with plastic case): maximum supply current 16 A
assembly - terminal: using screws from front panel or with rear brackets
- power board: on models PJEZ*8**5* supplied with plastic case
display 3 digit LED display with sign -199 to 199 and decimal point, 6 status LEDs
operating conditions PJEZ*8**4* (without plastic case):-
- 10T60°C for power board;
- 10T60°C for display; humidity <90% RH non-
condensing.
PJEZ*8**5* (with plastic case):
- 10T50°C for power board;
- 10T60°C for display; humidity <90% RH non-
condensing.
storage conditions -20T70°C, humidity <90% RH non-condensing
range of measurement - NTC probe: -50T90°C(-58T194°F), resolution 0.1 °C/°F
- NTC-HT probe: -40T150°C(-40T302°F), resolution 0.1 °C/°F
index of protection - display (front): IP65
- box-mounted power board: IP00
dimensions plastic terminal: 81x36x38.29 mm
power board: plastic box 190x140x70 mm
classi cation according to protection against electric
shock
class 1
environmental pollution grade 3
PTI of insulating materials 250 V
period of stress across the insulating parts long
category of resistance to heat and  re category D (UL94 – V0)
immunity against voltage surges category 3
type of action and disconnection 1C relay contacts
construction of the control device integrated electronic control device
no. of relay automatic operating cycles EN60730-1: 100000 operations;UL873: 30000 operations.
software class and structure class A
cleaning only use neutral detergents and water
max cable length serial: 1 km; probes/digital inputs: 10 m; relay: 10 m
conformity EN60730-1, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11
Table 6.c
*) The features shown depend on the model.
(**) Minimum T OFF between two starts must be greater than 1 min.
(***) Conformity to UL873 only corresponds to models without plastic case.
Terminal
71x29
36
81
74
33
38,29
31
5
Fig. 6.c
Power board
36
N
L
N
RL1
RL4
RL3
RL2
L
98
117
5
5
88
8.5
5
103.5
Ø
4
7
Fig. 6.d
