12. Connessioni elettriche

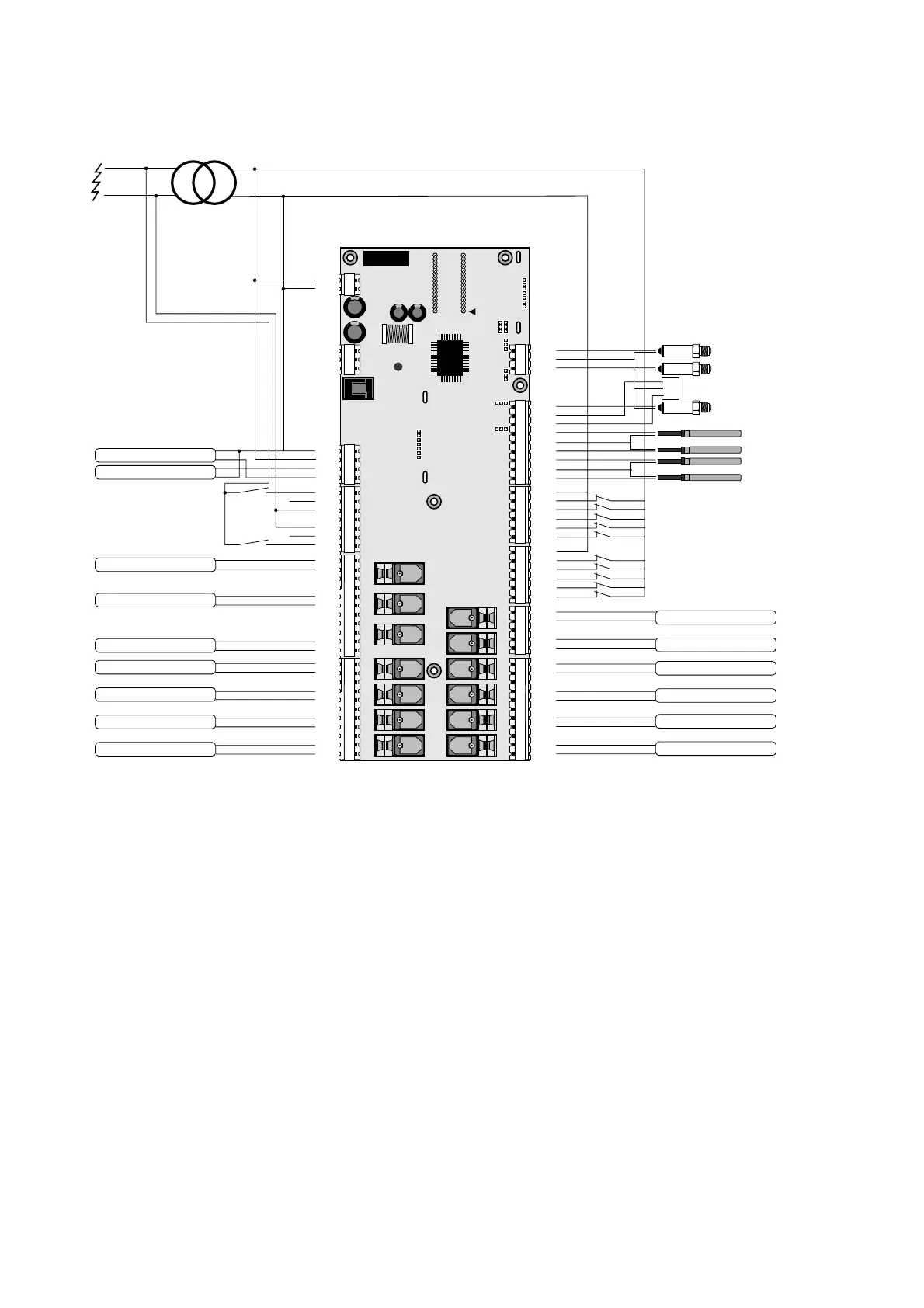

Di seguito viene indicato il collegamento del pCO ai vari dispositivi.
(*) Solo su schede con 8 ingressi analogici (cod.PCOB000**1).
Carel si riserva la possibilità di apportare modifiche o cambiamenti ai
propri prodotti senza alcun preavviso.
12. Electrical connections
The following diagram shows the connections of the pCO to the various
devices.
(*) Only for boards with 8 analogue inputs (code PCOB000**1).
Carel reserves the right to modify its products without prior notice.
38
J17J11J20J21J22J24
J1
J2J3J4J5J6
B8
+24Vdc
B7
B6
AVSS
B5
B4
AVSS
B3
B2
AVSS
B1
IDCM2
ID10
ID9
ID8
ID7
ID6
IDCM1
ID5
ID4
ID3
ID2
ID1
C1
NO1
-------
C2
NO2
C3
NO3
-------
C4
NO4
-------
C5
NO5
-------
C12
NO12
NO8
C8
-------
NO7
C7
-------
NO6
C6
-------
NO13
C13
NO11
C11
NC11
--------
NO10
C10
NC10
--------
NO9
C9
NC9
ID230
ID24
ID11R
--------
ID12R
ID24
ID230
VG0
VG1
Y1
Y0
GND
RX/TX-
RX/TX+
G
G0
J19
J14
J15
J28
J29
J9 J8
Analogue output 1 (0+10Vdc)
Analogue output 2 (0+10Vdc)
Digital output 11
Digital output 10
Digital output 9
Digital output 8
Digital output 7
Digital output 6
Digital output 13
Digital input 12 (230 Vac)
Digital input 11 (230 Vac)
M
V+
OUT
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Digital output 5
Digital output 12
Digital input 10
Digital input 9
Digital input 8
Digital input 7
Digital input 6
Digital input 5
Digital input 4
Digital input 3
Digital input 2
Digital input 1
Probe 8 (*)
Probe 7 (*)
Probe 5
(0 1Vdc o 4 20mA)
Probe 6
(0 1Vdc o 4 20mA)
Carel NTC probe 4
Carel NTC probe 3
Carel NTC probe 2
Carel NTC probe 1
G
G0
L
N
230/24 Vac
Fig. 48
