Casio CASSIOPEIA A-20 User Manual

— 48 —
Step
Operation Display
Note
Operation Display
UNIT-1 UNIT-2
IrDA
** Main Menu **
0 AUTO MODE
1 DISPLAY
2 TOUCH PANEL
3 MEMORY
4 SERIAL
5 POWER CONTROL
6 AUDIO
7 Others
** Main Menu **
0 AUTO MODE
1 DISPLAY
2 TOUCH PANEL
3 MEMORY
4 SERIAL
5 POWER CONTROL
6 AUDIO
7 Others
4
** Serial **
<RS232C Check>
1 Loop Back
2 Send/Receive
<IrDA Check>
3 Interactive
4 Send/Receive
<3 PIN Check>
5 Loop Back
4
** Serial **
<RS232C Check>
1 Loop Back
2 Send/Receive
<IrDA Check>
3 Interactive
4 Send/Receive
<3 PIN Check>
5 Loop Back
4
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
4
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
1
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
<SEND MODE>
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
2
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
<RECEIVE MODE>
HHHHHHHHHHHHHHHHH
HHHHHHHHHHHHHHHHH
HHHHHHHH.........
<Infrared SEND/RECEIVE>
1 Send data (MAX Baudrate)
2 Receive data(MAX Baudrate)
3 Send data (MIN Baudrate)
4 Receive data(MIN Baudrate)
<SEND MODE>
"H" indication
continuing with-
out error mes-
sage for more
than 1 second
(ERROR mes-
sage is indicated
in transmission
beginning and
transmission
closing, it is nor-
mal.)

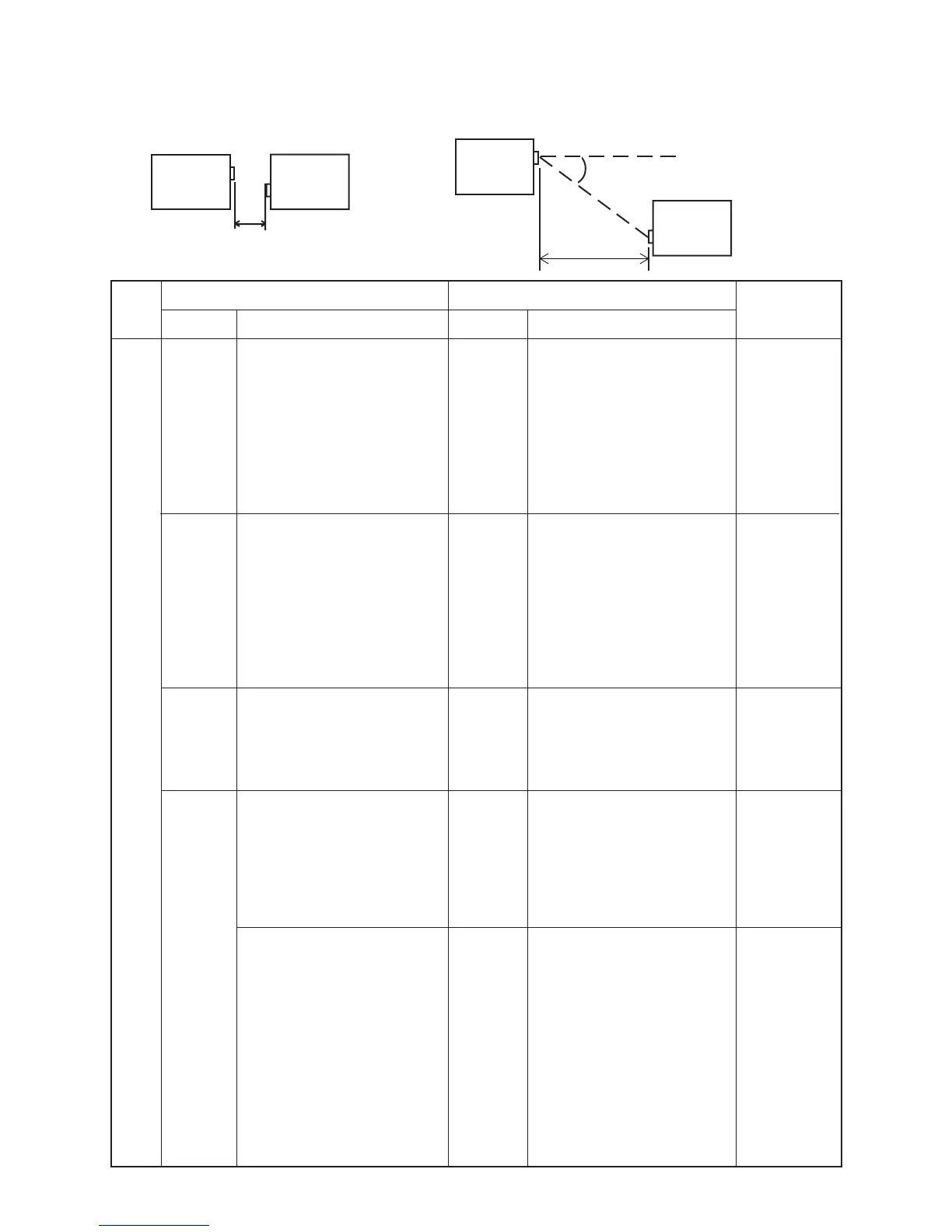

IrDA Communication Test
Prepare 2 units and place them as follows;
80 cm
±15 deg.
A-20
A-20
A-20
A-20
10 cm
