— 54 —
DISASSEMBLY • ASSEMBLY
1. Module
1. Remove dummy card and stylus.

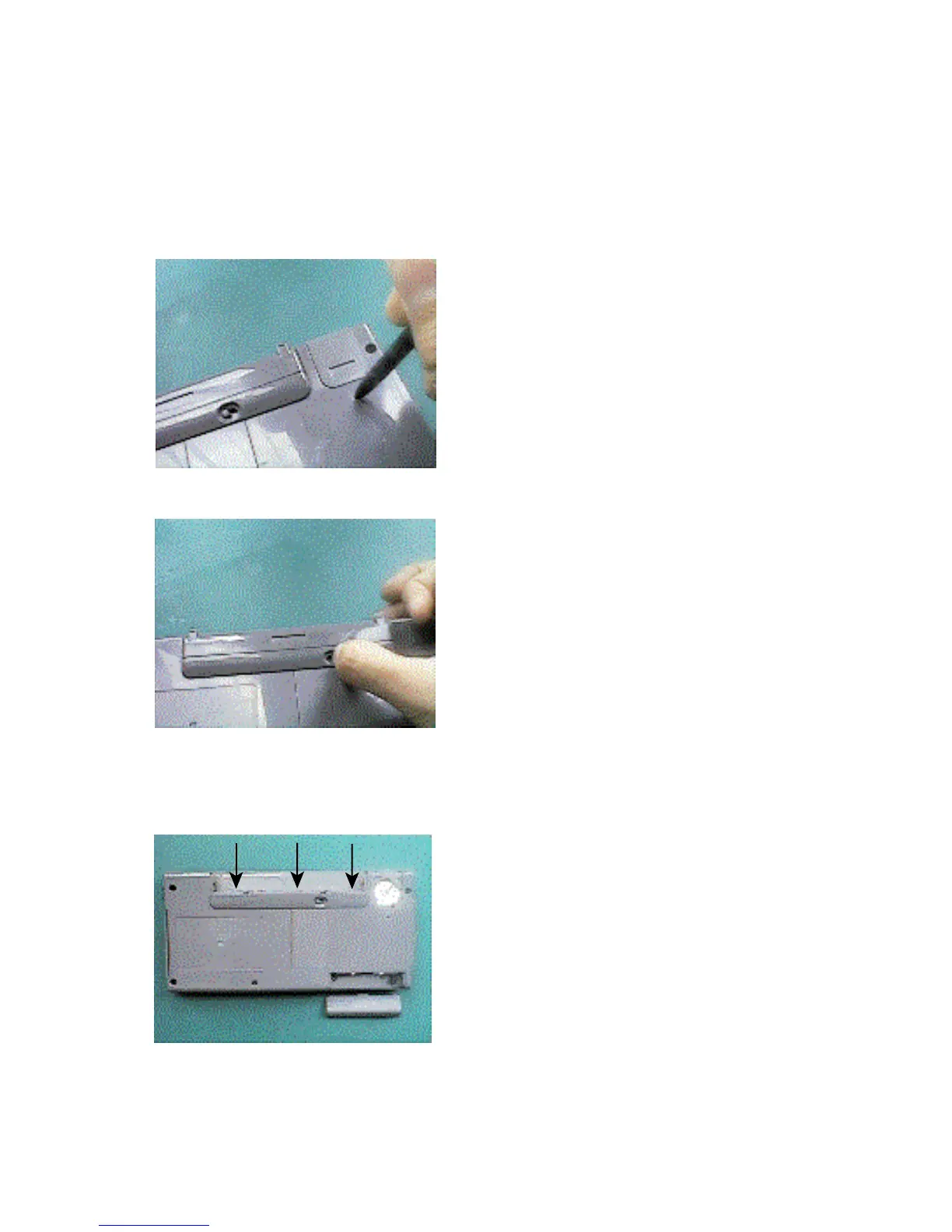

2. Remove the backup battery cover by pressing a point with the stylus shown below, then remove the
backup battery.
4. Remove the flash memory card cover (23).
5. Unscrew six screws (5).
6. Open the case by unhooking three places by pressing from outside.
3. Remove the main batteries by releasing the lever.
To Next Page
