— 63 —

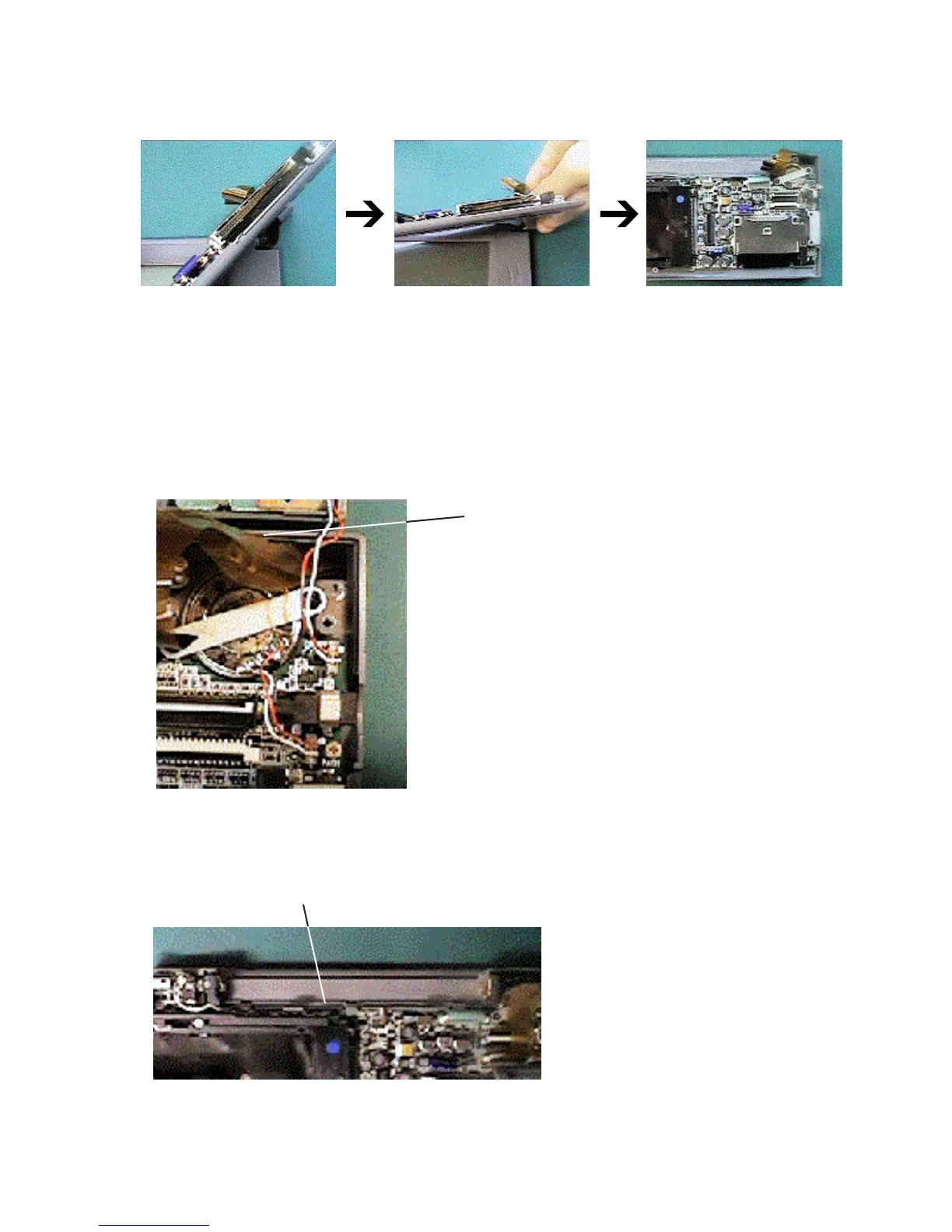

7. Precautions when assembling
1. Speaker and backup battery both are connected by 2-pin connectors. The connector closer to the
hinge are for the backup battery.
* Be sure to connect them to the right place.
* Make sure you get the + and – right.
2. When closing the upper case and lower case do not forget to set the connector for backup battery.
3. Wires for the main battery, set the gray wire in the gutter of the case first then the black wire next.
When putting the upper case and lower case together make sure no wires are nipped.
5. Pull to the point where the FPC is bent 90 degrees. Then move the upper case so that the FPC will go
through the hole.
6. Pull the FPC all the way.
Hinge holder
Battery wire
To Next Page
