Viewing Snapshots and Movies
1. Use the optionally available AV cable (EMC-8A) to connect the camera
to the TV.
• Make sure that you insert the cable connector into the USB/AV port until you
feel it click securely into place. Failure to insert the connector fully can result in
poor communication or malfunction.
• Note that even while the connector is fully inserted, you
still will be able to see the metal part of the connector as
shown in the illustration.
• Make sure that the camera is turned off before plugging
in or unplugging the cable. Check the user
documentation that comes with the TV for information
about requirements before plugging into or unplugging
from the TV.
2. Turn on the TV and select its video input mode.
If the TV has more than one video input, select the one where the camera is
connected.
3. Turn on the camera and press [p] (PLAY).
This will cause an image to appear on the TV screen, without anything appearing
on the camera’s monitor screen.
• You also can change the aspect ratio of the screen and the video output
system (page 166).
4. Now you can display images and play back movies as you normally do.

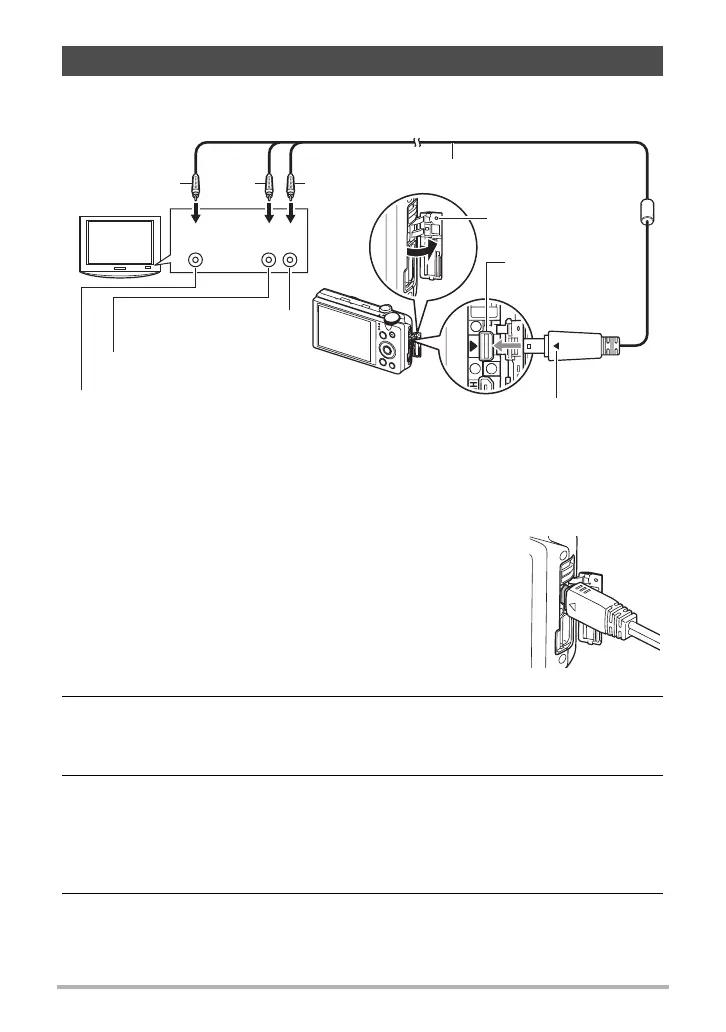

Viewing Snapshots and Movies on a TV Screen
Yellow
AV cable (EMC-8A)
[USB/AV] port
Red
Making sure that the 6 mark on the camera is
aligned with the 4 mark of the AV cable connector,
connect the cable to the camera.
VIDEO IN jack (yellow)
AUDIO IN jack (red)
TV
Terminal cover
White
AUDIO IN jack (white)
Video Audio

Casio EXILIM EX-ZR300 Specifications

General

Megapixel	16.1 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	No
Total megapixels	16.79 MP
Image sensor size	1/2.3 \
Supported aspect ratios	3:2, 16:9
Maximum image resolution	4608 x 3456 pixels
Still image resolution(s)	640 x 480, 2048 x 1536, 2560 x 1920, 3648 x 2736, 4608 x 2592, 4608 x 3072
Digital zoom	4 x
Optical zoom	12.5 x
Combined zoom	199.3 x
Focal length range	4.24 - 53 mm
Maximum aperture number	7.9
Minimum aperture number	3
Lens structure (elements/groups)	8/9
Maximum focal length (35mm film equiv)	300 mm
Minimum focal length (35mm film equiv)	24 mm
Normal focusing range	0.05 - ∞ m
Auto focusing (AF) modes	Multi Point Auto Focus, Spot Auto Focus, Tracking Auto Focus
Macro focusing range (wide)	0.01 - 0.5 m
Light metering	Centre-weighted, Evaluative (Multi-pattern)
ISO sensitivity	80, 100, 200, 400, 800, 1600, 3200
Light exposure modes	Aperture priority AE, Manual, Shutter priority AE
Light exposure control	Program AE
Light exposure correction	± 2EV (1/3EV step)
Camera shutter type	Electronic, Mechanical
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	4 s
Flash modes	Auto, Red-eye reduction
Flash range (tele)	0.9 - 2.4 m
Flash range (wide)	0.4 - 4.7 m
Flash recharging time	5 s
Built-in flash	Yes
Power source type	AC
Dimensions (WxDxH)	104.8 x 28.6 x 59.1 mm
Video resolutions	640 x 480, 1280 x 720, 1920 x 1080 pixels
Motion JPEG frame rate	30 fps
Video formats supported	AVCHD, H.264, MOV
Maximum video resolution	1920 x 1080 pixels
Internal memory	52.2 MB
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	16 GB
Display diagonal	3 \
Display resolution	960 x 480 pixels
Display resolution (numeric)	460800 pixels
USB version	2.0
Product color	White
Scene modes	-
White balance	Auto, Daylight, Manual, Shade
Camera playback	Movie
Self-timer delay	2, 10 s
Camera file system	DCF 2.0, DPOF 1.1, Exif 2.3
Battery type	NP-130
Battery life (CIPA standard)	500 shots
Cables included	USB

Weight and Dimensions

Depth	28.6 mm
Width	104.8 mm
Height	59.1 mm
Weight	165 g
Weight (including battery)	205 g
