Casio XJ-A256 Function Guide

15
To use a default SSID to connect a computer to the projector
via wireless LAN
1. Turn on the projector and wait until the POWER/STANDBY indicator is lit green.
2. Press the [INPUT] key and select “Wireless” as the input source.
z This will project the Wireless standby screen.
3. Turn on your computer and start up Windows.
4. On the computer, start up Wireless Connection 3.
z If your computer is running Windows Vista or Windows 7, starting up Wireless Connection 3
will cause the “User Account Control” message to appear. When it does, click [Allow] or [Yes].

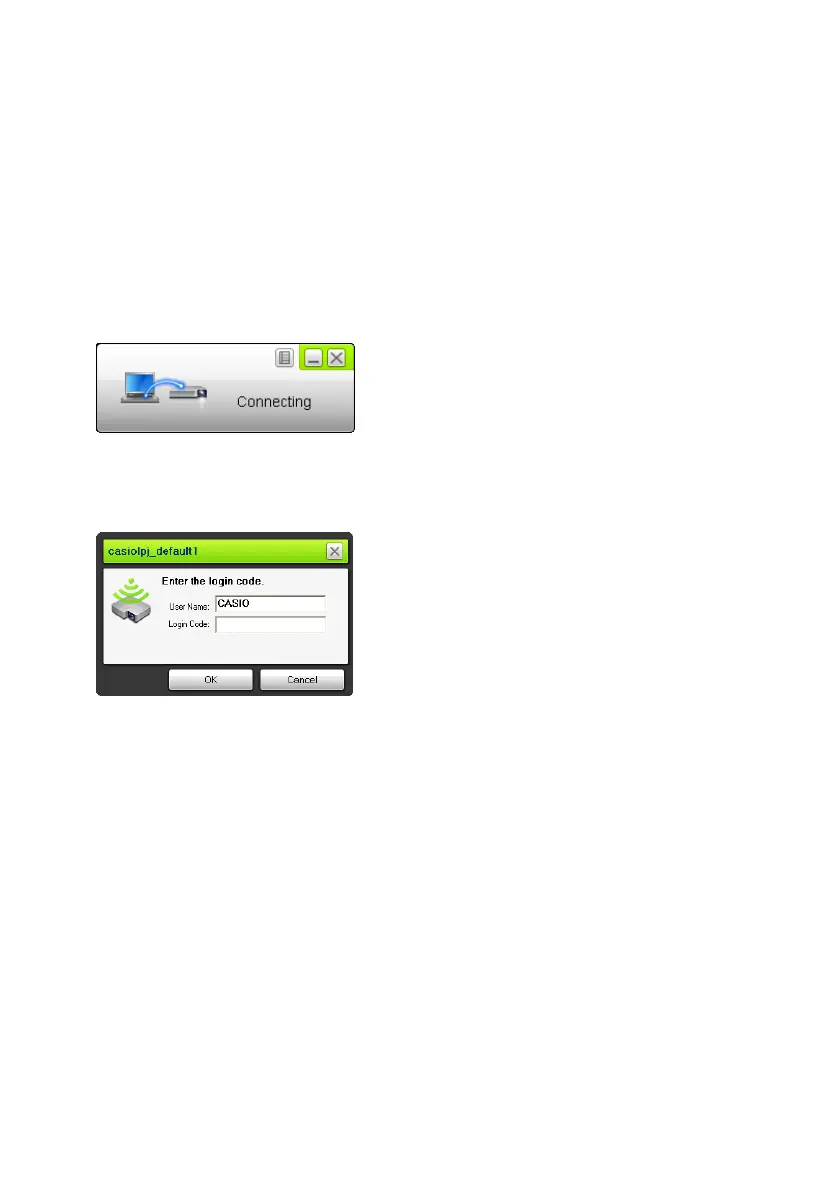

z The Wireless Connection 3 window will appear with the message “Connecting”.
z If your computer is running Windows Vista or Windows 7 and the “Set Network Location”
dialog box appears, click [Cancel] to close the dialog box.
z A dialog box like the one shown below as soon as Wireless Connection 3 finds a projector to
connect to.
5. Enter the user name and login code.
z The user name you enter here will be displayed as the user name on the projection screen.
You can enter any name up to 20 characters long.
z For the login code, enter the four-digit number displayed on the Wireless standby screen.

Casio XJ-A256 Specifications

General

Matrix size	0.65 \
Number of colors	16.78 million colors
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	18 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±30 °
Aspect ratio	16:10
RS-232 ports	1
Offset	84 %
Throw ratio	1.15 - 2.3:1
Optical zoom	2 x
Zoom capability	Yes
Focal length range	- mm
Service life of light source	20000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1280 x 800 (WXGA)
RMS rated power	1 W
USB connector type	USB Type-A
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Wi-Fi standards	802.11b, 802.11g
Noise level	35 dB
Noise level (economic mode)	29 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, ITA, JPN, KOR, SWE
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	110 W
Power consumption (typical)	210 W
Power consumption (PowerSave)	0.4 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, Composite, VGA

Weight and Dimensions

Depth	210 mm
Width	297 mm
Height	43 mm
Weight	2300 g
