Casio XJ-A256 Function Guide

38

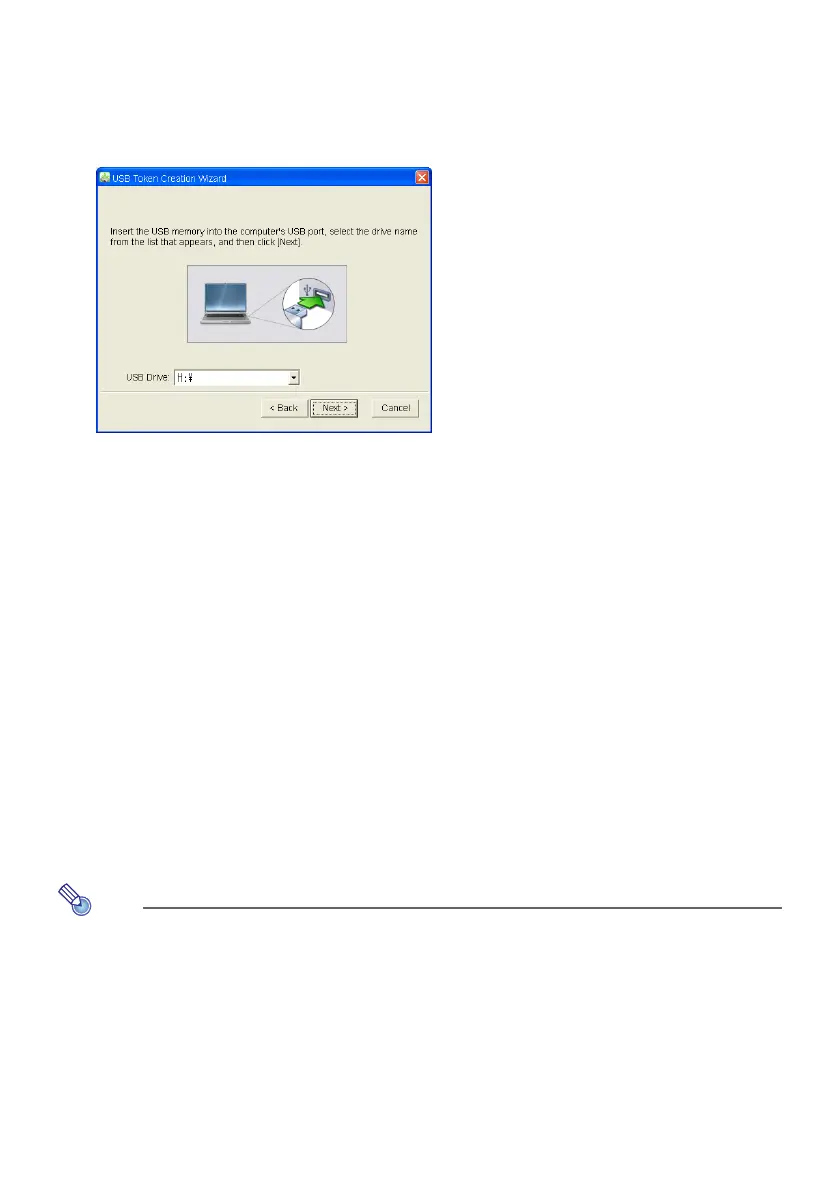

1. On a Wireless Connection 3 window, click the function menu button and then
click [Token Wizard] on the menu that appears.
z This displays the token wizard.
2. Click [Next>].
z This displays a USB drive selection screen.
z If there is no USB memory connected to the computer, the message “USB memory could not
be detected.” will appear. If this happens, connect the USB memory and wait until its USB
memory drive name appears in the “USB Drive” box.
3. If there are multiple USB memories connected to the computer, click the [T]
button to the right of the “USB Drive” box and select the name of the drive where
you want to install Wireless Connection 3.
4. Click the [Next>] button.
z This installs Wireless Connection 3 on the specified USB memory. The message “Wizard
ended normally.” appears on the display after installation is complete.
5. Click [Exit] to close the token wizard screen.
To use a USB token to connect a computer to the projector via
wireless LAN
Connect the USB token to the computer’s USB port and then double click the Wireless Connection 3
icon in the token. After Wireless Connection 3 starts up, you can perform the same operations you do
when Wireless Connection 3 is installed on a computer.
Note
You cannot use the token wizard when you start up Wireless Connection 3 from a USB token.

Casio XJ-A256 Specifications

General

Matrix size	0.65 \
Number of colors	16.78 million colors
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	18 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±30 °
Aspect ratio	16:10
RS-232 ports	1
Offset	84 %
Throw ratio	1.15 - 2.3:1
Optical zoom	2 x
Zoom capability	Yes
Focal length range	- mm
Service life of light source	20000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1280 x 800 (WXGA)
RMS rated power	1 W
USB connector type	USB Type-A
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Wi-Fi standards	802.11b, 802.11g
Noise level	35 dB
Noise level (economic mode)	29 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, ITA, JPN, KOR, SWE
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	110 W
Power consumption (typical)	210 W
Power consumption (PowerSave)	0.4 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, Composite, VGA

Weight and Dimensions

Depth	210 mm
Width	297 mm
Height	43 mm
Weight	2300 g
