Analog RGB Connection
With this type of connection, the RGB cable inputs only the image signal of the computer. If you also
want to output audio from the computer, you will need to connect an audio cable.
An XJ-UT Series model, XJ-S400UN, or XJ-S400WN has a
MONITOR OUT terminal that
lets you directly output the signal being input to the
COMPUTER IN 1 terminal or
COMPUTER IN 2 terminal to an external display. For details, see “Using the MONITOR OUT
Terminal (XJ-UT Series, XJ-S400UN, XJ-S400WN)” (page 78).
The relationship between the image output terminal and audio output terminal can be
changed as required. Note that the combinations shown in the table are initial default settings.
For details, see “Relationship Between Image Input and Audio Input” (page 45).
With this type of connection, connect to the HDMI, component video, or composite video terminal of
the video device.
HDMI Connection
With this type of connection, the video signal and audio signal from the video device are input
simultaneously using a single cable.

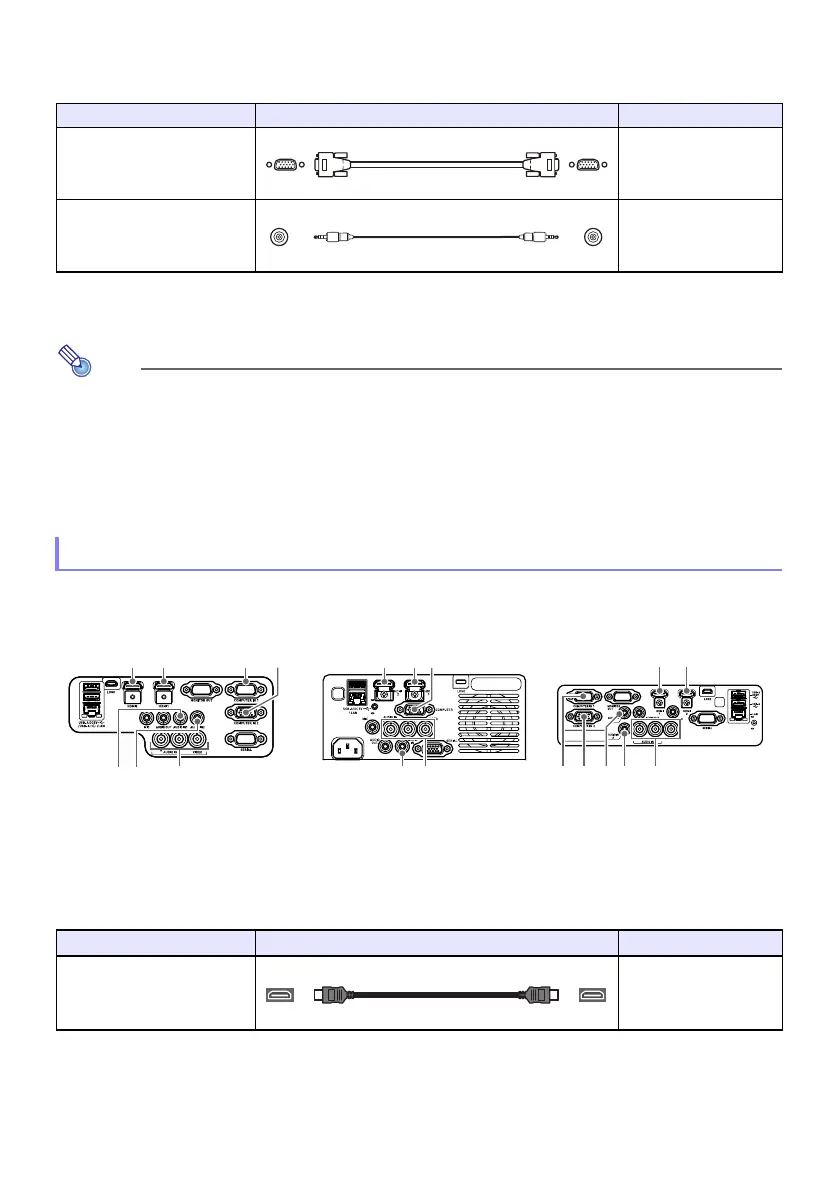

Projector Terminal Connection Cable Computer Terminal
COMPUTER IN 1*
2
or
COMPUTER IN 2
Analog RGB Out (VGA)
terminal
AUDIO IN 1*
3
or
AUDIO IN 2
Headphones jack or
other audio output jack.
*2 An XJ-F Series model, XJ-S400U, or XJ-S400W has a COMPUTER IN terminal only.
*3 An XJ-F Series model, XJ-S400U, or XJ-S400W has an AUDIO IN terminal only.
Connecting to a Video Device
XJ-UT Series XJ-F Series XJ-S Series
Projector Terminal Connection Cable Video Device Terminal
HDMI 2
or
HDMI 1*
1
HDMI Out terminal
*1 An XJ-UT312WN model has an HDMI terminal only.
RGB cable (D-Sub 15-pin cable)
15-pin Mini D-Sub
Audio cable
Stereo mini jack
