Chery S18D Service Manual
Chapter I Engine Hood & Luggage Boot
I. Removal and Installation of Engine Hood
1. Preparations
Tools: slotted screwdriver, cross screwdriver, socket wrench, and etc.
2. Precautions
2.1. During removal and installation, be particularly careful to apply proper force and no abrupt or
violent operation is allowed.
2.2. During removal and installation of the interior trimming, be particularly careful to avoid surface
scratch.

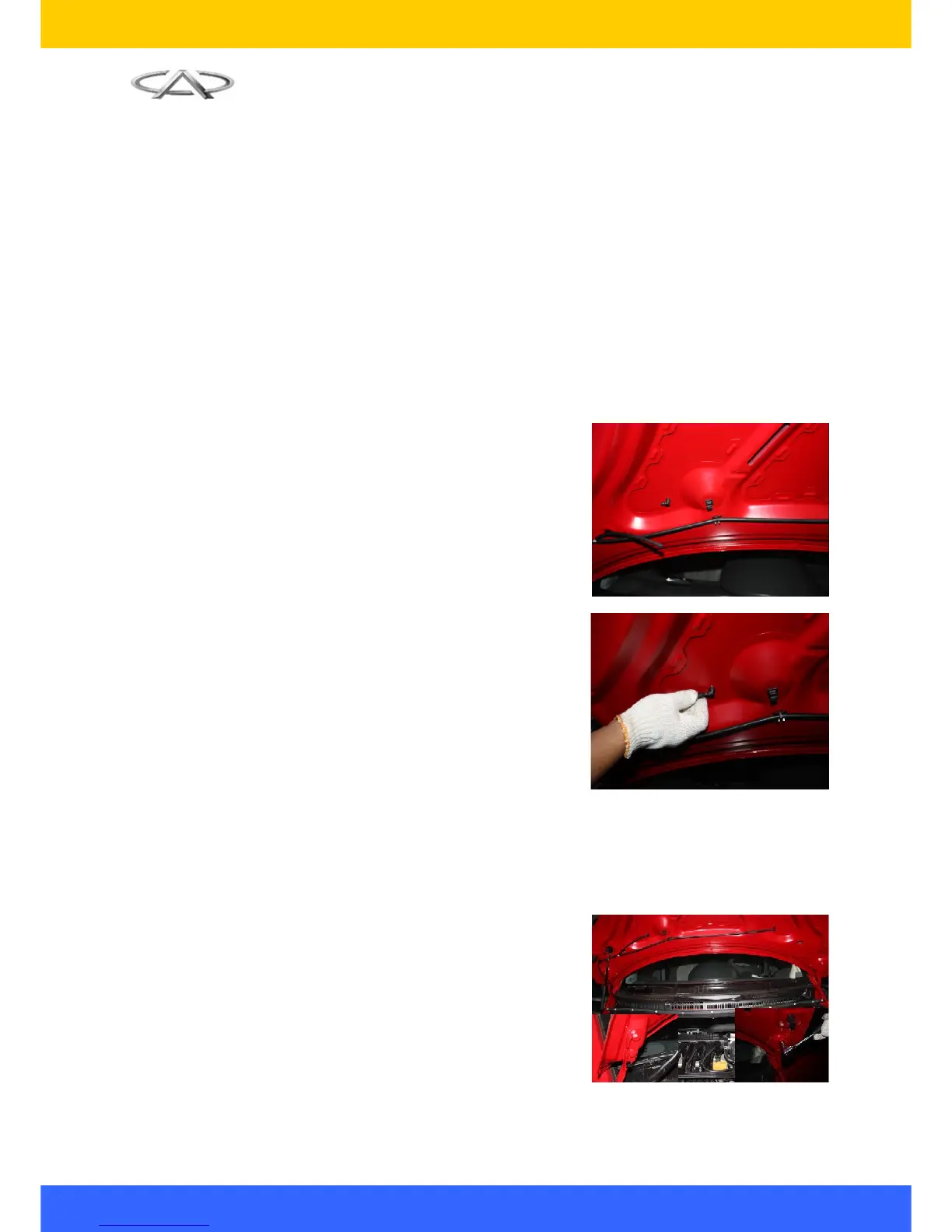

3. Removal and Installation of Engine Hood Accessories
3.1. Removal Procedure
3.1.1. Pull off the washer fluid hose.
3.1.2. Press down the water nozzle clip under
the engine hood, and then push it up
while removing the noozle outward.
3.2. Installation Procedure
The installation procedures are reverse to those for removal. If the nozzle shall be replaced, please
adjust the nozzle water injection to suitable height and width.
4. Removal & Adjustment of Engine Hood Assembly
4.1. Screw off the four adjusting bolts of the
engine hood, and then the engine hood can
be taken down. And the positing of the engine
hood can be adjusted in left-right & front-rear
directions by loosening the four adjusting
bolts.
Installation torque: 25±2N.m
4.2. Installation of Engine hood Assembly:
The installation procedures are reverse to those for removal.
