No. Clearance position
Clearance
value(mm)
Flatness value(mm)
19 Front bumper and front fender 0
0
+0.5
——
20 Headlamp and fender 3±1 -0.7
+0.5
-1.0
21 Front fog lamp and front bumper 2±0.5 ——
22 Engine hood and front bumper 3.5
+1
-0.5
——
Note: as for the flatness value, the former part is the comparatively higher part in the text description.
E.g. in No.9, the flatness value of the fender and front door is
1
0
4
+
mm.
It means fender is higher than front door. Difference is
1
0
4
+
mm(4～5mm).

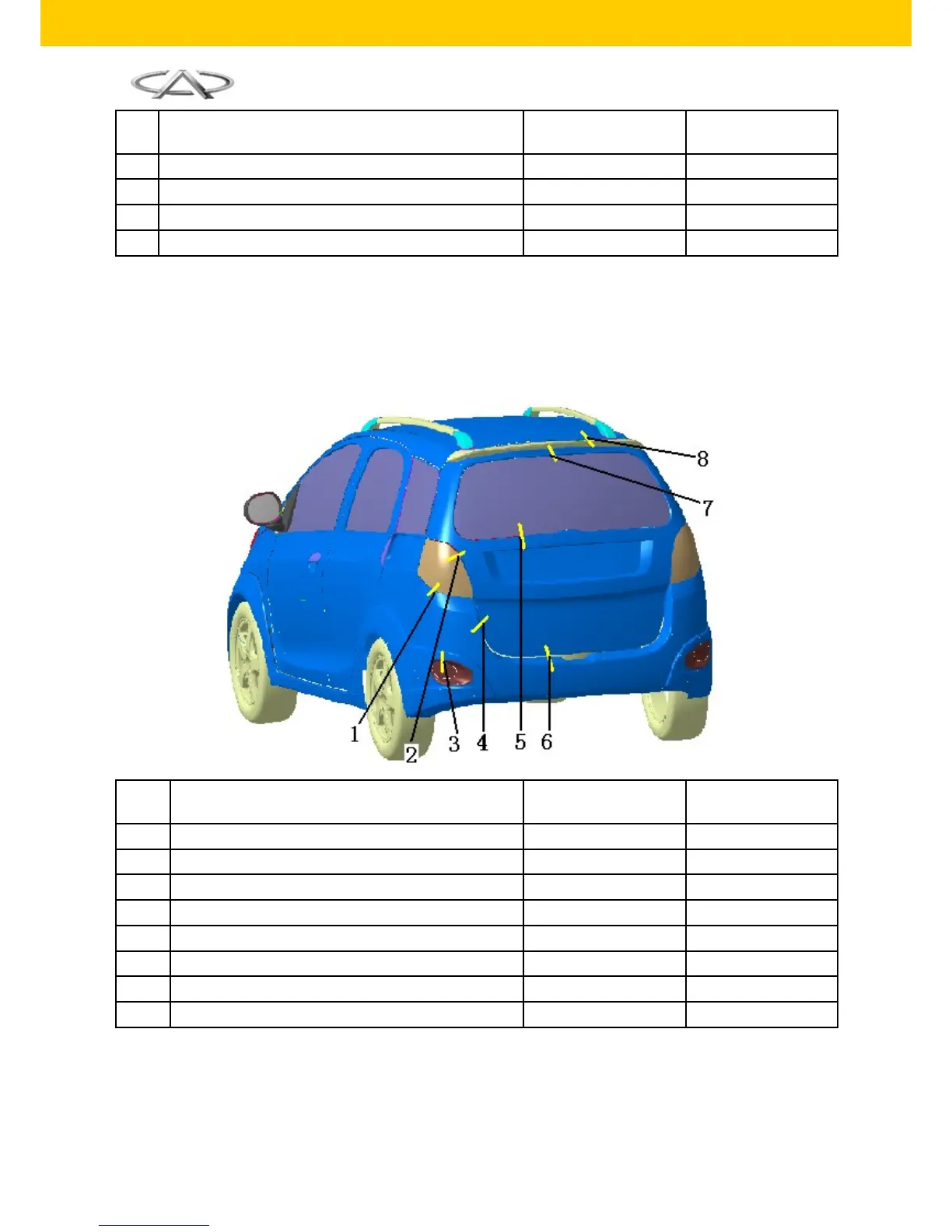

2. Left Rear Axonometric Drawing
No. Clearance position
Clearance
value(mm)
Flatness value(mm)
1 Rear bumper and tail lamp 2±1 ——
2 Back door and tail lamp 5±0.5 -0.7
+0.5
-1.0
3 Rear fog lamp and rear bumper 2±0.5 ——
4 Back door and rear bumper (upper part) 6±1 ——
5 Rear windshield and back door (lower part) 3.5
+1.5
0
——
6 Back door and rear bumper (lower part) 6±1 ——
7 Rear windshield and back door (upper part) 3.5
+1.5
0
——
8 Ceiling and back door 7
+1.5
-0.5
1
+1
-0
Note: in flatness value, the former part is the comparatively higher part in the text description.
E.g. in No.3, the flatness value of side wall and rear bumper is 0.7±0.5mm.
It means the side wall is higher than rear bumper. Difference is 0.7±0.5mm(0.2～1.2mm).
64
