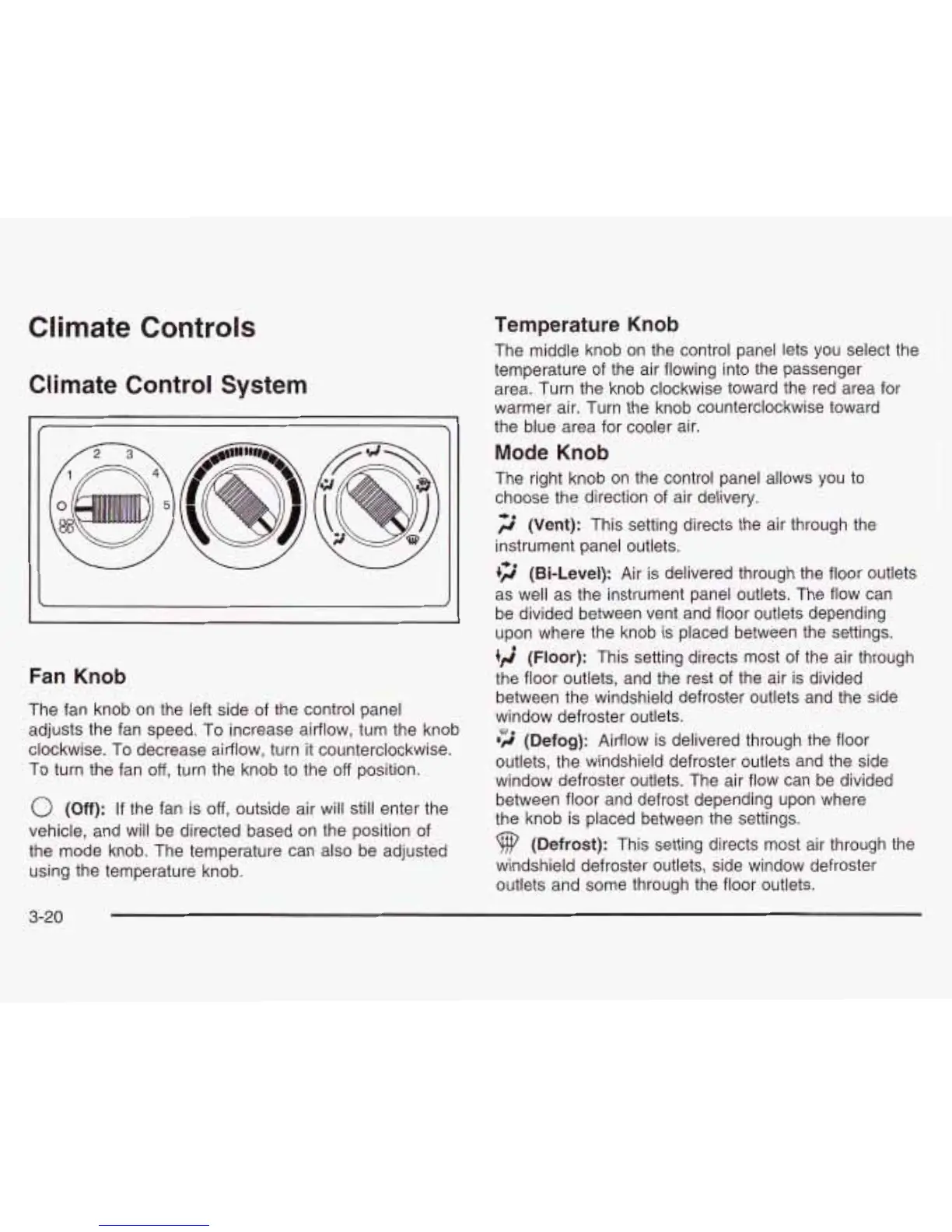

Climate
Controls
Climate
Control
System
I' 'I
Fan Knob
The fan knob on the left side of the control panel
adjusts the fan speed. To increase airflow, turn the knob
clockwise. To decrease airflow, turn it counterclockwise.
To turn the fan
off,
turn the knob to the
off
position.
0
(Off):
If the fan is
off,
outside air will still enter the
vehicle, and will be directed based on the position of
the mode knob. The temperature can also be adjusted
using the temperature knob.
Temperature
Knob
The middle knob on the control panel lets you select the
temperature
of
the air flowing into the passenger
area. Turn the knob clockwise toward the red area for
warmer air. Turn the knob counterclockwise toward
the blue area for cooler air.
Mode
Knob
The right knob on the control panel allows
you
to
choose the direction of air delivery.
f;'
(Vent): This setting directs the air through the
instrument panel outlets.
+?
(Bi-Level): Air is delivered through the floor outlets
as well as the instrument panel outlets. The flow can
be divided between vent and floor outlets depending
upon where the knob is placed between the settings.
12
(Floor): This setting directs most of the air through
the floor outlets, and the rest of the air is divided
between the windshield defroster outlets and the side
window defroster outlets.
3
(Defog): Airflow is delivered through the floor
outlets, the windshield defroster outlets and the side
window defroster outlets. The air flow can be divided
between floor and defrost depending upon where
the knob is placed between the settings.
9
(Defrost): This setting directs most air through the
windshield defroster outlets, side window defroster
outlets and some through the floor outlets.
3-20
