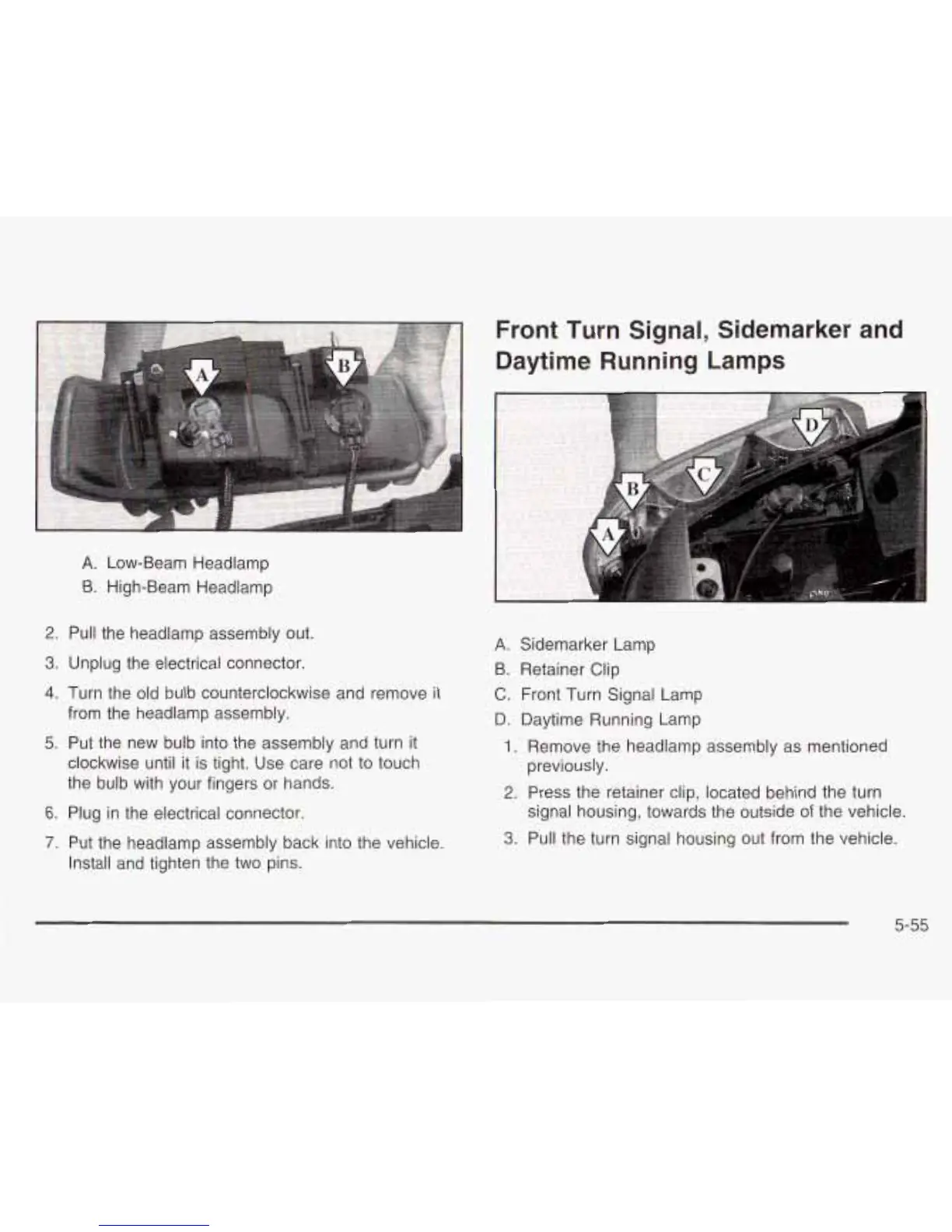

A.
Low-Beam Headlamp
B. High-Beam Headlamp
2.
Pull the headlamp assembly out.
3.
Unplug the electrical connector.
4.
Turn the old bulb counterclockwise and remove it
from the headlamp assembly.
5.
Put the new bulb into the assembly and turn it
clockwise until it is tight. Use care not to touch
the bulb with your fingers or hands.
6.
Plug in the electrical connector.
7.
Put the headlamp assembly back into the vehicle.
Install and tighten the two pins.
Front Turn Signal, Sidemarker and
Daytime Running Lamps
A.
Sidemarker Lamp
B. Retainer Clip
C. Front Turn Signal Lamp
D. Daytime Running Lamp
1.
Remove the headlamp assembly as mentioned
2.
Press the retainer clip, located behind the turn
3.
Pull the turn signal housing out from the vehicle.
previously.
signal housing, towards the outside
of
the vehicle.
5-55
