Chapter 2 Installing the Access Point
Configuring the Access Point
Note • Cut and remove the AC plugs from each cable. Cut just past strain relief to be sure that the cable is
not cut too short.
• Ensure that the wiring splice is properly secured and protected.

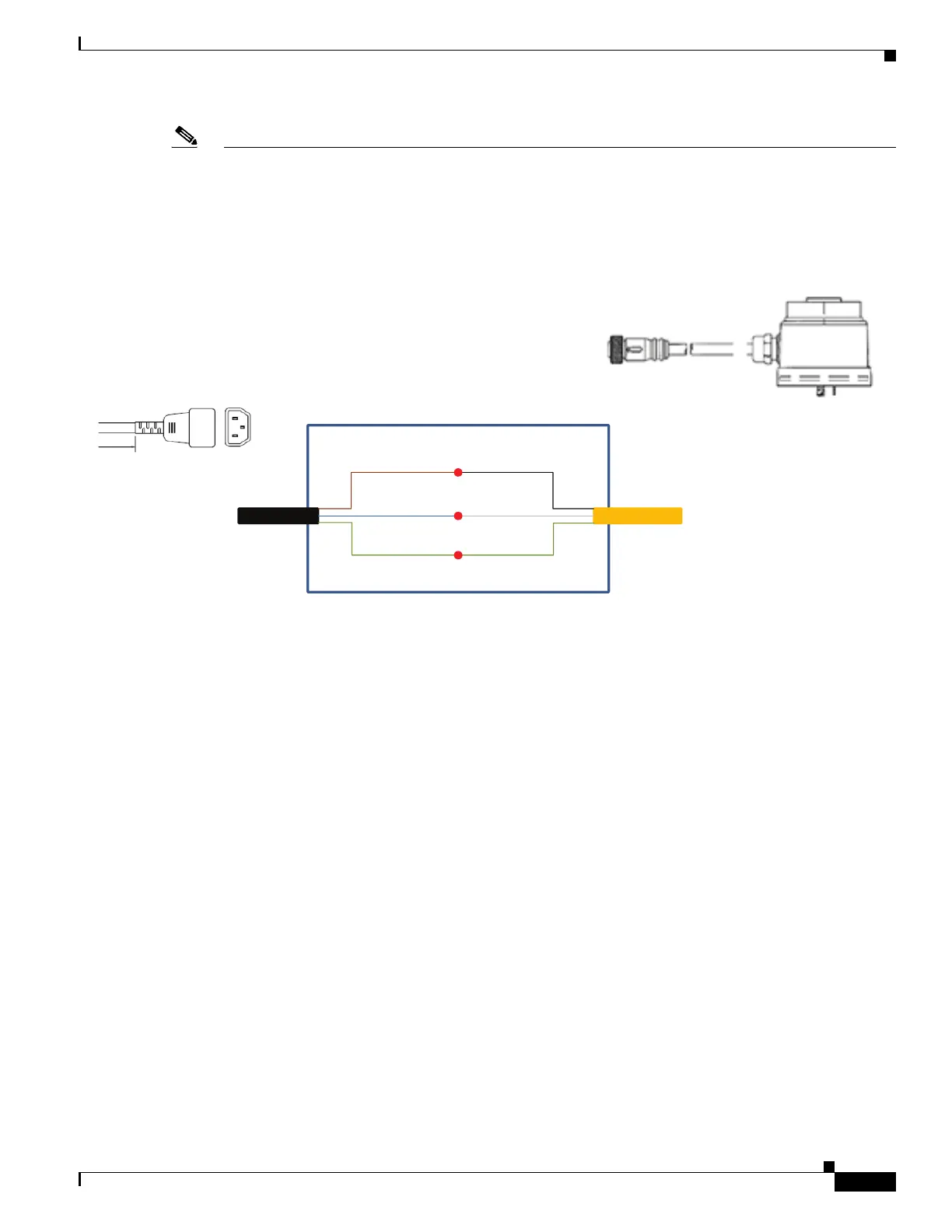

Figure 2-24 Wiring Streetlight Power Tap Adapter to AC/DC Power Adapter
Configuring the Access Point
For information on configuring the access point, see the following documents:
• For Lightweight Access Points and Mesh Access Points, see the Cisco Wireless LAN Controller
Configuration Guide, which is available at:
http://www.cisco.com/en/US/docs/wireless/controller/7.6/configuration/guide/b_cg76.html
• For Mesh Access Points, see the Cisco Wireless Mesh Access Points, Design and Deployment Guide,
which is available at:
http://www.cisco.com/en/US/docs/wireless/technology/mesh/7.6/design/guide/mesh76.html
• For Access Points in autonomous mode, see the Cisco Aironet Access Points Configuration Guide
for Cisco IOS Software, which is available at:
http://www.cisco.com/en/US/docs/wireless/access_point/15_2_4_JB/configuration/guide/scg15.2.4
_JB3a_Book.html
BROWN (L)
BLUE (N)
GREEN (GND)
GREEN (GND)
FROM AC/DC ADAPTER
REMOVE IEC PLUG
FROM AC STREET LIGHT
TAP REMOVE CIRCULAR
CONNECTOR
BLACK (L)
WHITE (N)
352647
