Cisco ASR 1000 Series Hardware Installation Guide

A-2
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Appendix A Cisco ASR 1000 Series Router Specifications
Cisco ASR 1006 Router Specifications
Cisco ASR 1006 Router Memory and Storage Options
Table A-2 lists the hardware memory and storage options supported on the Cisco ASR 1006 Router.
Cisco ASR 1006 Router Ethernet RJ-45 Port Pinouts
The Cisco ASR 1006 Router has an RJ-45 port for the 10/100/1000 Ethernet connection. The RJ-45 port
supports IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.3u (Fast Ethernet) interfaces compliant with
10BASET, 100BASETX, and 1000BASET specifications.
The RJ-45 port supports standard straight-through and crossover Category 5 UTP cables with RJ-45
connectors. Cisco does not supply Category 5 UTP cables; these cables are available commercially.

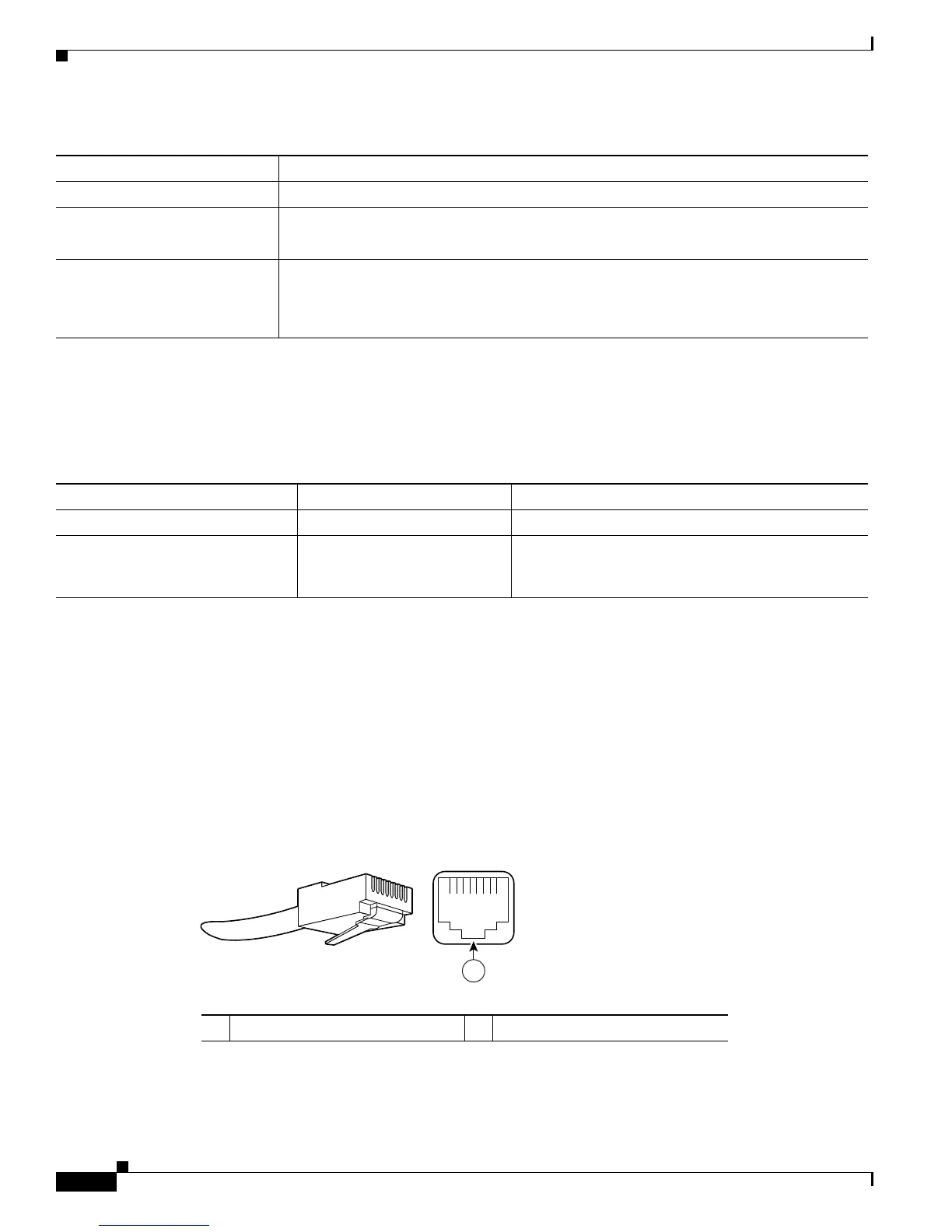

Figure A-1 shows an RJ-45 port and connector.
Figure A-1 RJ-45 Port and Connector for Cisco ASR 1006 Router
Nominal operating humidity 10% to 85%
Storage temperature
• –38° to 150° F
• –40° to 70° C
Power consumption
• Maximum DC: 1700W
• Maximum AC: 1600W
• Maximum (Out): 1275W
Table A-1 Cisco ASR 1006 Router Specifications (continued)
Description Specification
Table A-2 Memory and Storage Options for Cisco ASR 1006 Router
Memory Type Default Maximum System Support
RP1 2 GB DRAM 4 GBDRAM
eUSB 1 GB (Partitioned: 2x32MB for
NVRAM and the remaining for
mass storage
Hard disk drive 40 GB for code storage or solid-state
drive 32 GB support
1 RJ-45 connector — —
57574
12345678
1

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
