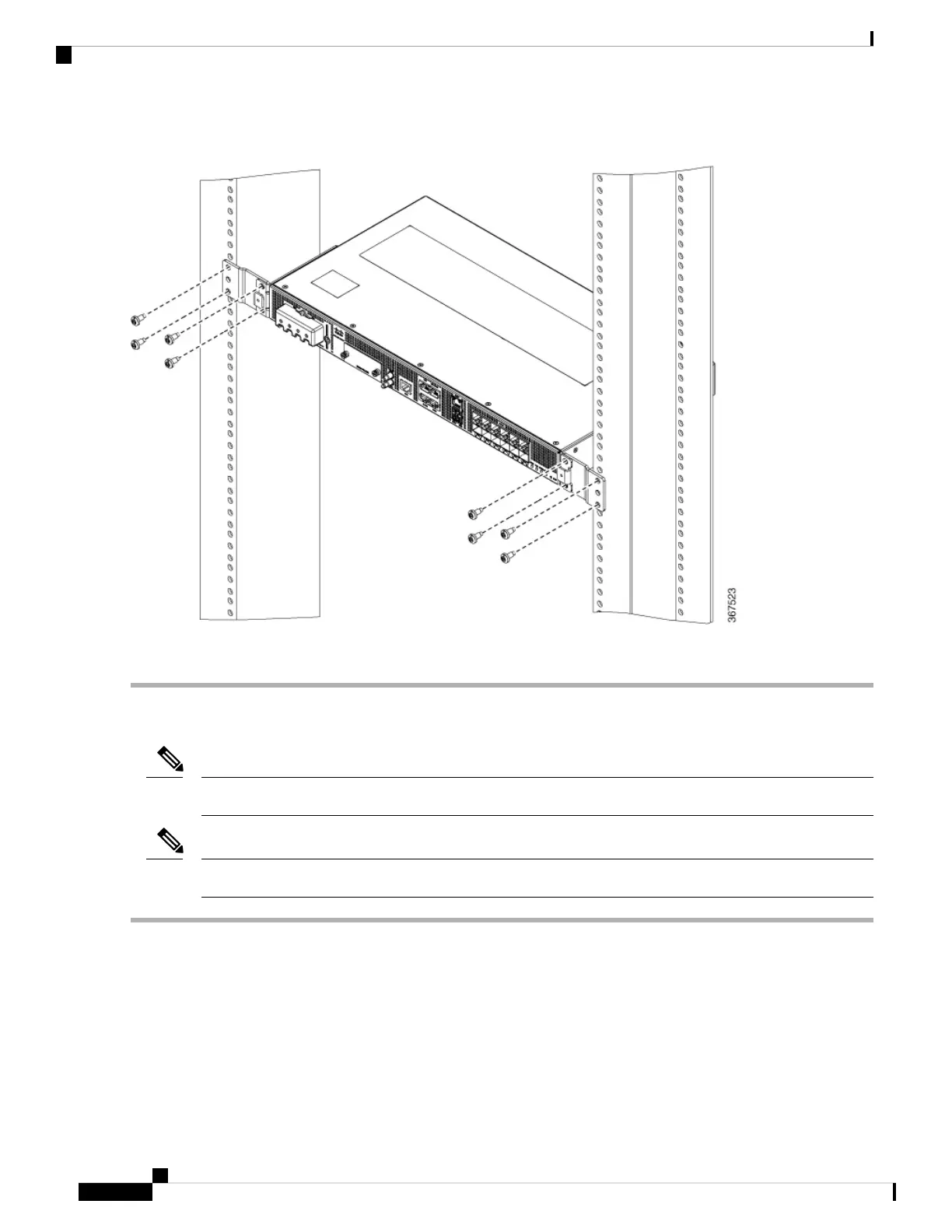

Figure 15: Set Up Device on 23-inch Rack (Front Mount)
Step 2 Use a tape measure and level to verify that the device is installed straight and on level.
Attach the Cable Guides
Always assemble the cable guides before installing the chassis on the rack.
Note
Ensure that the cable guide is mounted in the orientation as shown in the following images.
Note
Step 1 Position the cable guide-right against the front of the chassis and align the two screw holes, as shown in the figure.
Cisco ASR-920-12SZ-A and Cisco ASR-920-12SZ-D Aggregation Services Router Hardware Installation Guide
36
Install the Router
Attach the Cable Guides
