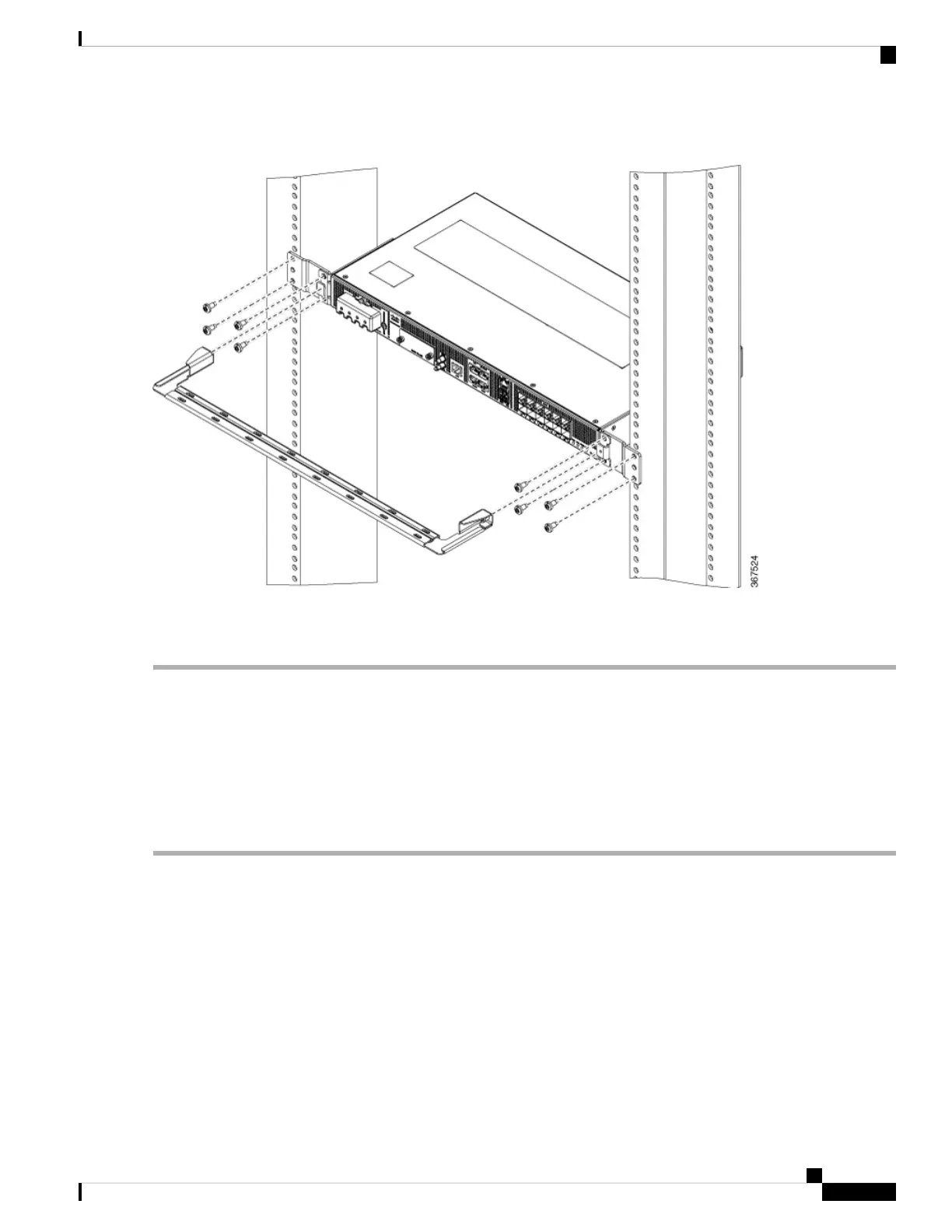

Figure 20: Front Mount Device with Cable Guide on 23-Inch Rack
Step 2 Secure the cable guides with the two M6x12mm screws that are supplied with the cable kit. The recommended maximum
torque is 26 inch-pounds (3 newton meters).
Wall Mount
Install the wall mounting brackets and cable guides on to the chassis before you mount the chassis on the wall.
Install Wall Brackets
The device is shipped with wall mounting brackets that must be secured on the sides of the device.
Step 1 Remove the wall mounting brackets from the accessory kit and position them beside the device.
Install the brackets as shown in the figure.
Note
Cisco ASR-920-12SZ-A and Cisco ASR-920-12SZ-D Aggregation Services Router Hardware Installation Guide
39
Install the Router
Wall Mount
