Attaching a Chassis Ground Connection
Procedure
Step 1 Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
Step 2 Insert the AWG #6 wire into the open end of the grounding lug.

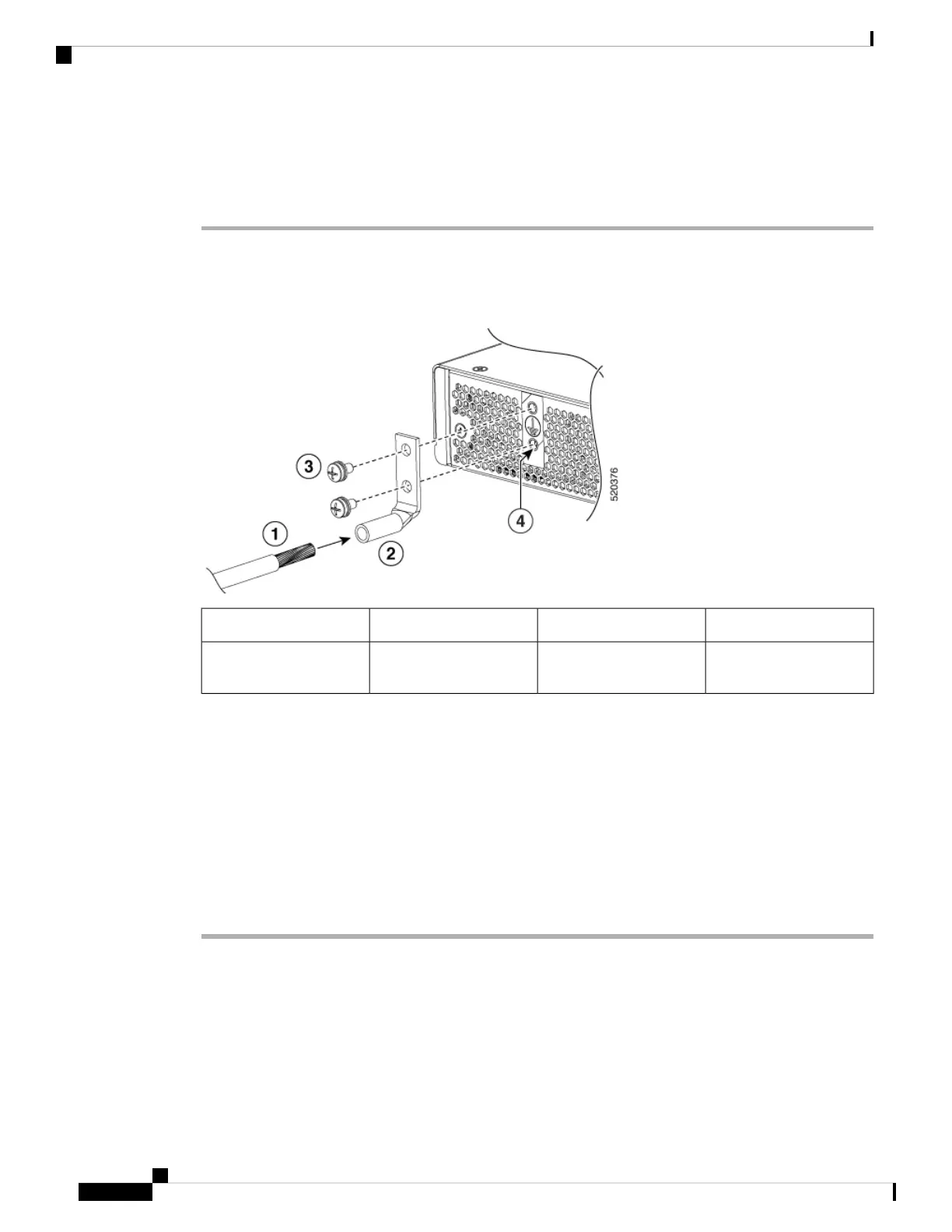

Figure 7: Attaching a Grounding Lug to the Chassis Ground Connector
Ground screws3Chassis ground lead wire1
Chassis ground connector
holes
4Grounding lug2
Step 3 Use the crimping tool to carefully crimp the wire receptacle around the wire. This step is required to ensure
a proper mechanical connection.
Step 4 Locate the chassis ground connector on the side of your chassis.
Step 5 Insert the two screws through the holes in the grounding lug.
The following figure shows how to attach a grounding lug to the chassis ground connector.
Step 6 Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not over tighten the screws.
Step 7 Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an
adequate chassis ground.
