1-9
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 1 Product Overview
Front Panel

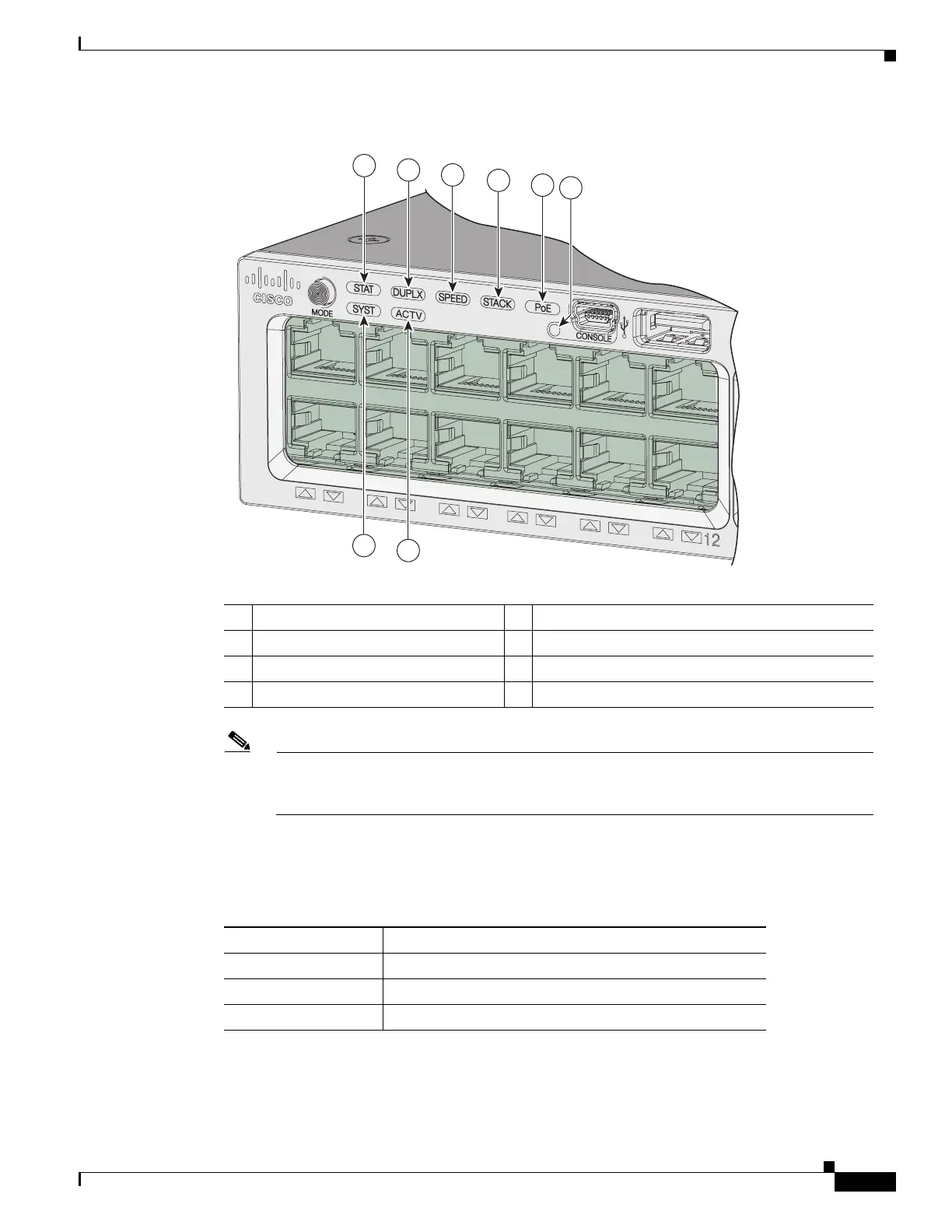

Figure 1-4 Switch Front Panel LEDs
SYST LED
1 STAT (status) 5
PoE
1
1. Only switches with PoE+ ports.
The illustrations of the Catalyst 3650 switch are not intended to depict any particular color scheme.
They are provided as a reference for various features and markings described within this
guide.
2 DUPLX (duplex) 6
CONSOLE (USB mini-Type B (console) port
3 SPEED 7 SYST (system)
4 STACK 8 ACTV (active)
Table 1-2 SYST LED
Color System Status
Off System is not powered on.
Green System is operating normally.
Blinking green Switch is running POST.
347616
1
2
3
4
5
7
8
01X
6
