Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 1 Product Overview
Rear Panel

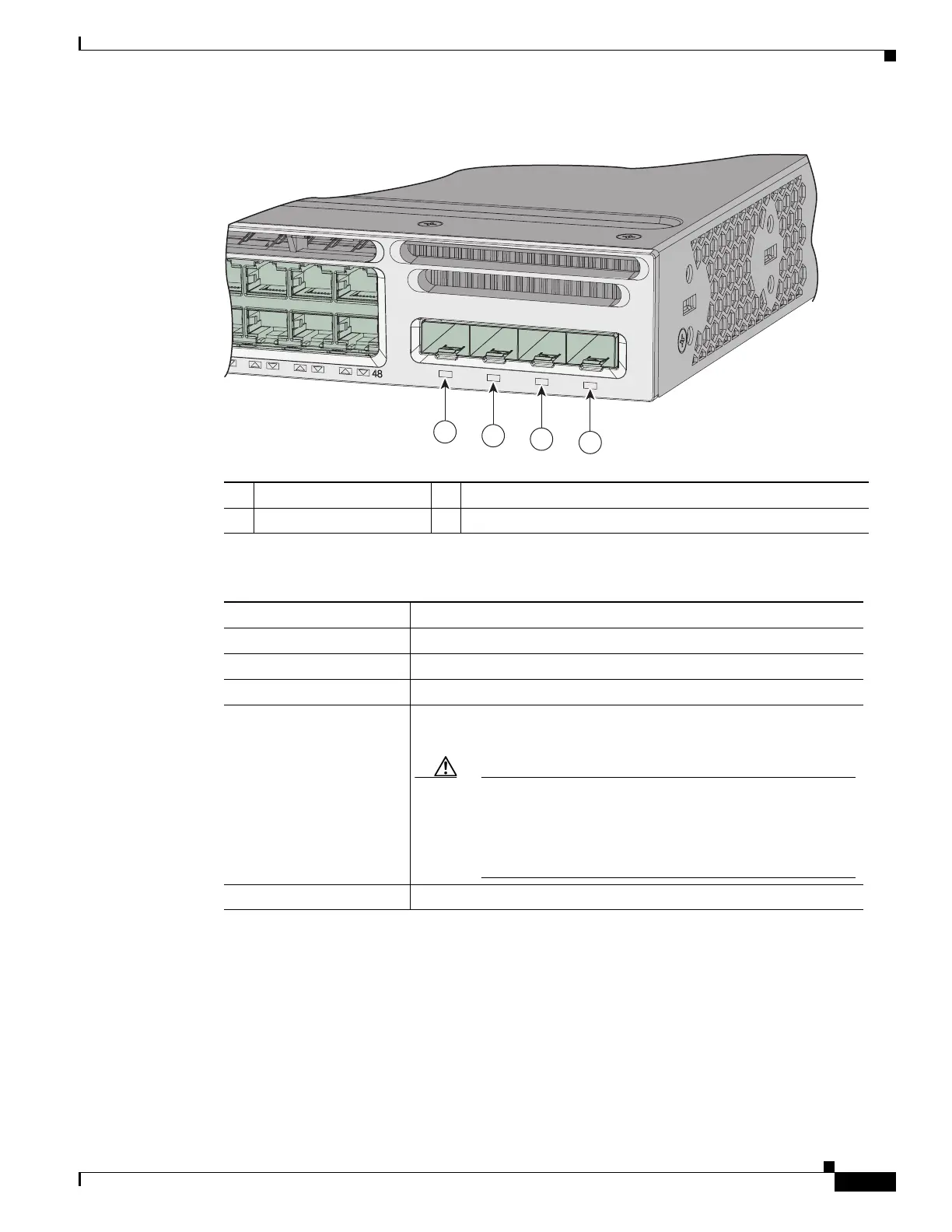

Figure 1-6 Uplink Ports LEDs
Rear Panel
The switch rear panel includes StackWise connectors, ports, fan modules, and power supply modules.
See Figure 1-7.
1 G1 LED 3 G3, TE3 LED
2 G2 LED 4 G4, TE4 LED
Table 1-8 Uplink Ports LEDs
Color Uplink Ports Link Status
Off Link is off.
Green Link is on, no activity.
Blinking green Activity on a link, no faults.
Blinking amber Link is off due to a fault or because it has exceeded a limit set in the
switch software.
Caution Link faults occur when noncompliant cabling is connected
to an SFP or SFP+ port. Use only standard-compliant
cabling to connect to Cisco SFP and SFP+ ports. You must
remove from the ports any cable or device that causes a
link fault.
Amber Link for the SFP or SFP+ has been disabled.
Catalyst 3650 48PoE+ 2X10G
TE3
G1
G2
G3
G4
TE4
347665
1
2
3
4
