Appendix B Connector and Cable Specifications
Cable and Adapter Specifications
terminal. You can order a kit (part number ACS-DSBUASYN=) containing that adapter. For console port
and adapter pinout information, see Table B-2 and Table B-3.
Cable and Adapter Specifications
• StackWise Cables, page B-5
• StackWise Adapters, page B-6
• StackWise Adapter Blanks, page B-7
• SFP and SFP+ Module Cable Specifications, page B-7
• Four Twisted-Pair Cable Pinouts, page B-8
• Two Twisted-Pair Cable Pinouts, page B-8
• Identifying a Crossover Cable, page B-9
• Console Port Adapter Pinouts, page B-9
StackWise Cables

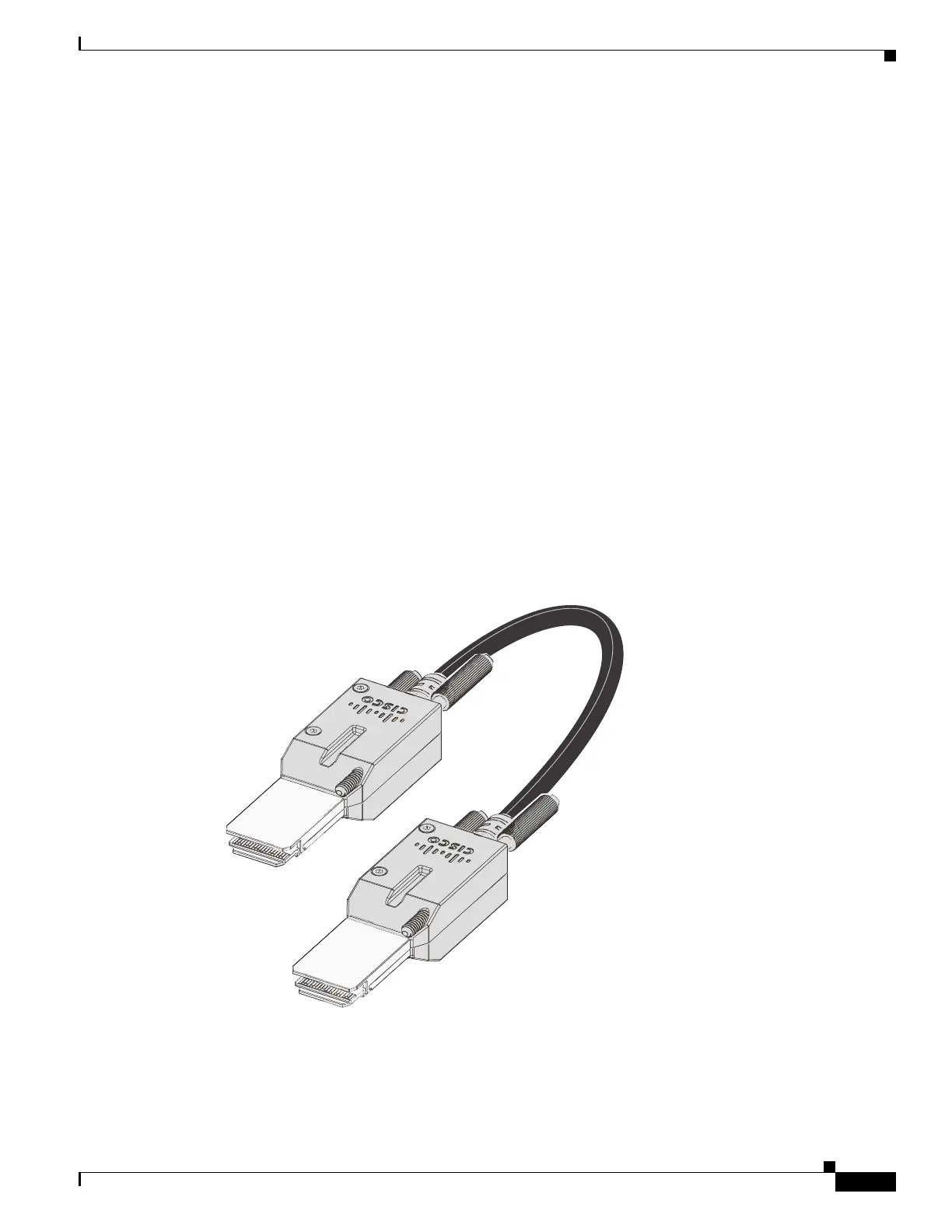

Figure B-10 shows a StackWise stacking cable.
Figure B-10 StackWise Stacking Cable
You can order these StackWise cables (nonhalogen) from your Cisco sales representative:
• STACK-T2-50CM= (0.5-meter cable)
• STACK-T2-1M= (1-meter cable)
• STACK-T2-3M= (3-meter cable)
347676
