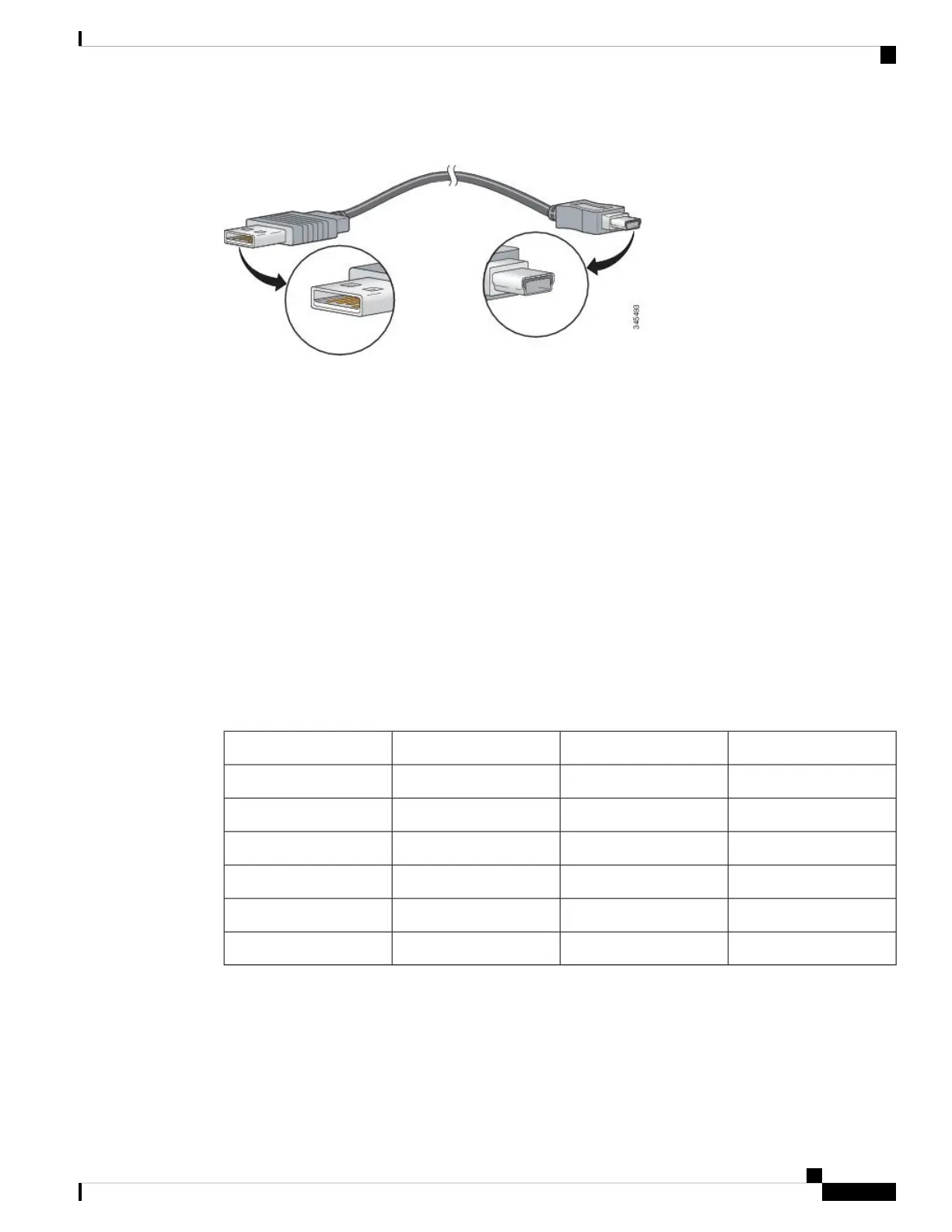

Figure 92: USB Type A-to-USB 5-Pin Mini-Type B Cable
The RJ-45 console port uses an 8-pin RJ-45 connection. The supplied RJ-45-to-DB-9 adapter cable is used
to connect the console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female DTE
adapter if you want to connect the switch console port to a terminal.
Cables and Adapters
StackWise Cables
You can order these StackWise cables (nonhalogen) from your Cisco sales representative:
• STACK-T1-50CM= (0.5-meter cable)
• STACK-T1-1M= (1-meter cable)
• STACK-T1-3M= (3-meter cable)
Table 39: StackWise Cables Minimum Bend Radius and Coiled Diameter
Minimum Coiled DiameterMinimum Bend RadiusCable LengthCable Part Number
5.20 in. (132 mm)2.60 in. (66 mm)1.64 feet (0.5 m)STACK-T1-50CM
5.20 in. (132 mm)2.60 in. (66 mm)3.28 feet (1.0 m)STACK-T1-1M
7.17 in. (182 mm)3.58 in. (91 mm)9.84 feet (3.0 m)STACK-T1-3M
5.20 in. (132 mm)2.60 in. (66 mm)1.64 feet (0.5 m)STACK-T2-50CM
5.20 in. (132 mm)2.60 in. (66 mm)3.28 feet (1.0 m)STACK-T2-1M
7.17 in. (182 mm)3.58 in. (91 mm)9.84 feet (3.0 m)STACK-T2-3M
SFP Module Cables
For cabling specifications, refer to the following notes:
• Cisco SFP and SFP+ Transceiver Module Installation Notes
Catalyst 3850 Switch Hardware Installation Guide
129OL-26779-05
Connector and Cable Specifications
Cables and Adapters
